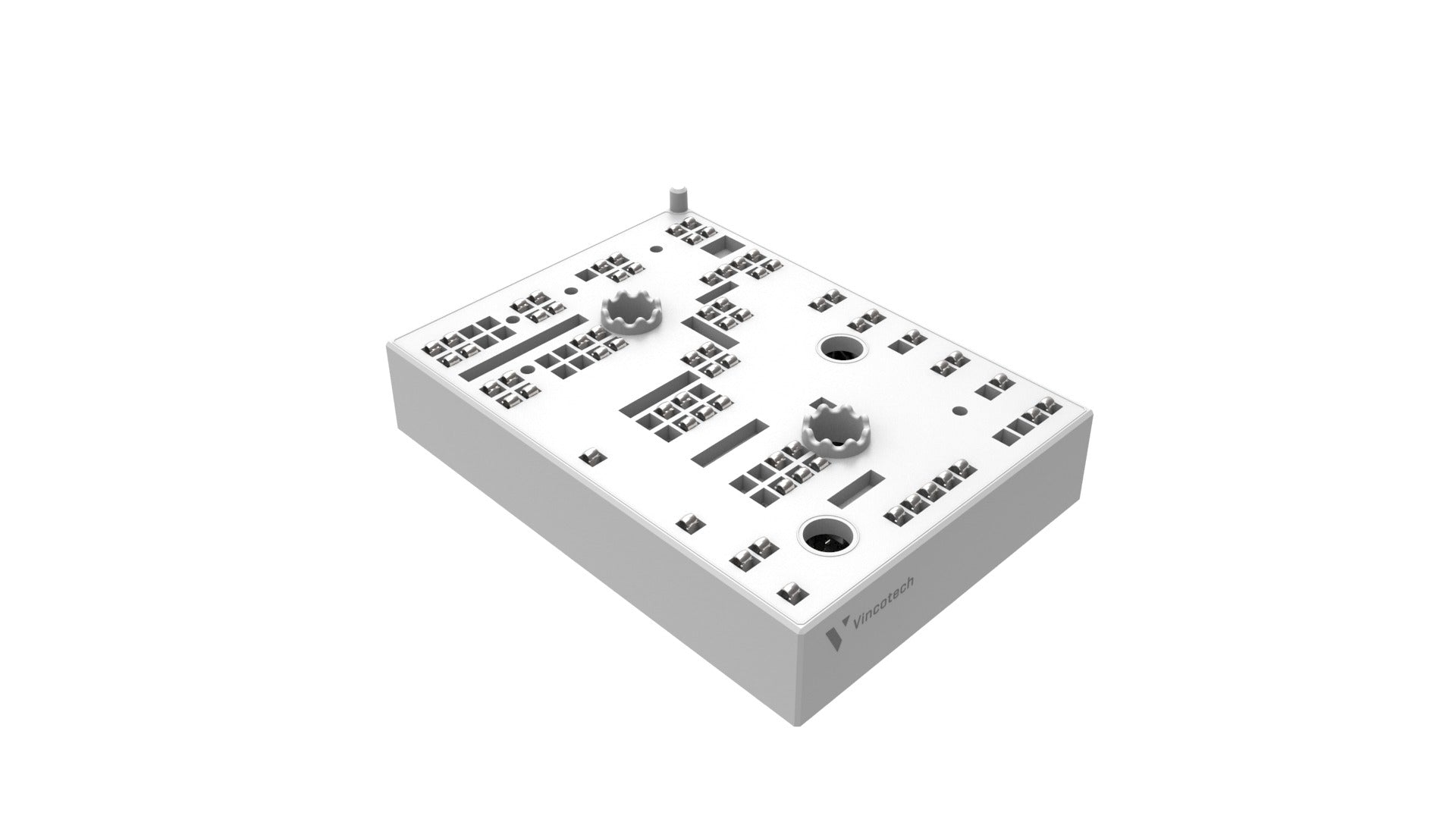

SEMIKRON SKiiP 38NAB12T4V1 IGBT Module
The SEMIKRON SKiiP 38NAB12T4V1 is a high-performance IGBT module designed to meet the demanding requirements of industrial power electronics. With a voltage rating of 1200 V and a continuous collector current of 103 A, this module offers robust performance suitable for various applications. Its compact MiniSKiiP® 3 housing ensures efficient thermal management, making it ideal for systems where space and heat dissipation are critical considerations.
This module features Trench 4 IGBT technology, known for its low conduction and switching losses, enhancing overall system efficiency. The inclusion of robust and soft-switching freewheeling diodes in CAL technology further contributes to the module's reliability and performance. With a maximum junction temperature of 150°C and a maximum case temperature of 125°C, the SKiiP 38NAB12T4V1 is built to operate effectively in demanding environments, ensuring long-term durability and reduced maintenance needs.
Typical applications of the SKiiP 38NAB12T4V1 include inverters up to 41 kVA and motor drives up to 22 kW. Its versatility and high performance make it a preferred choice for professionals seeking reliable and efficient power conversion solutions in industrial and commercial settings.
Key Specifications
| Specification | Value |
|---|---|
| Technology | Trench 4 IGBT |
| Housing Type | MiniSKiiP® 3 |
| Topology | Converter-Inverter-Brake (CIB) |
| Collector-Emitter Voltage (V_CEO) | 1200 V |
| Continuous Collector Current (I_C) | 103 A |
| Collector-Emitter Saturation Voltage (V_CE(sat)) | 1.8 V |
| Gate-Emitter Threshold Voltage (V_GE(th)) | 5.0–6.5 V |
| Gate-Emitter Voltage (V_GES) | ±20 V |
| Maximum Junction Temperature (T_j) | 150°C |
| Maximum Case Temperature (T_C) | 125°C |
| Diode Forward Voltage (V_F) | 1.0–1.5 V |
| Diode Reverse Recovery Time (t_rr) | 82 ns |
| Gate Charge (Q_G) | 565 nC |
| Turn-On Delay Time (t_d(on)) | 160 ns |
| Turn-Off Delay Time (t_d(off)) | 390 ns |
| Rise Time (t_r) | 35 ns |
| Fall Time (t_f) | 75 ns |
| Thermal Resistance (R_th(j-s)) | 0.48–0.34 K/W |
| Mounting Type | Press-Fit |
| Typical Motor Power | 22 kW |
| Inverter Rating | Up to 41 kVA |
For more detailed information, please refer to the SEMIKRON SKiiP 38NAB12T4V1 datasheet.
