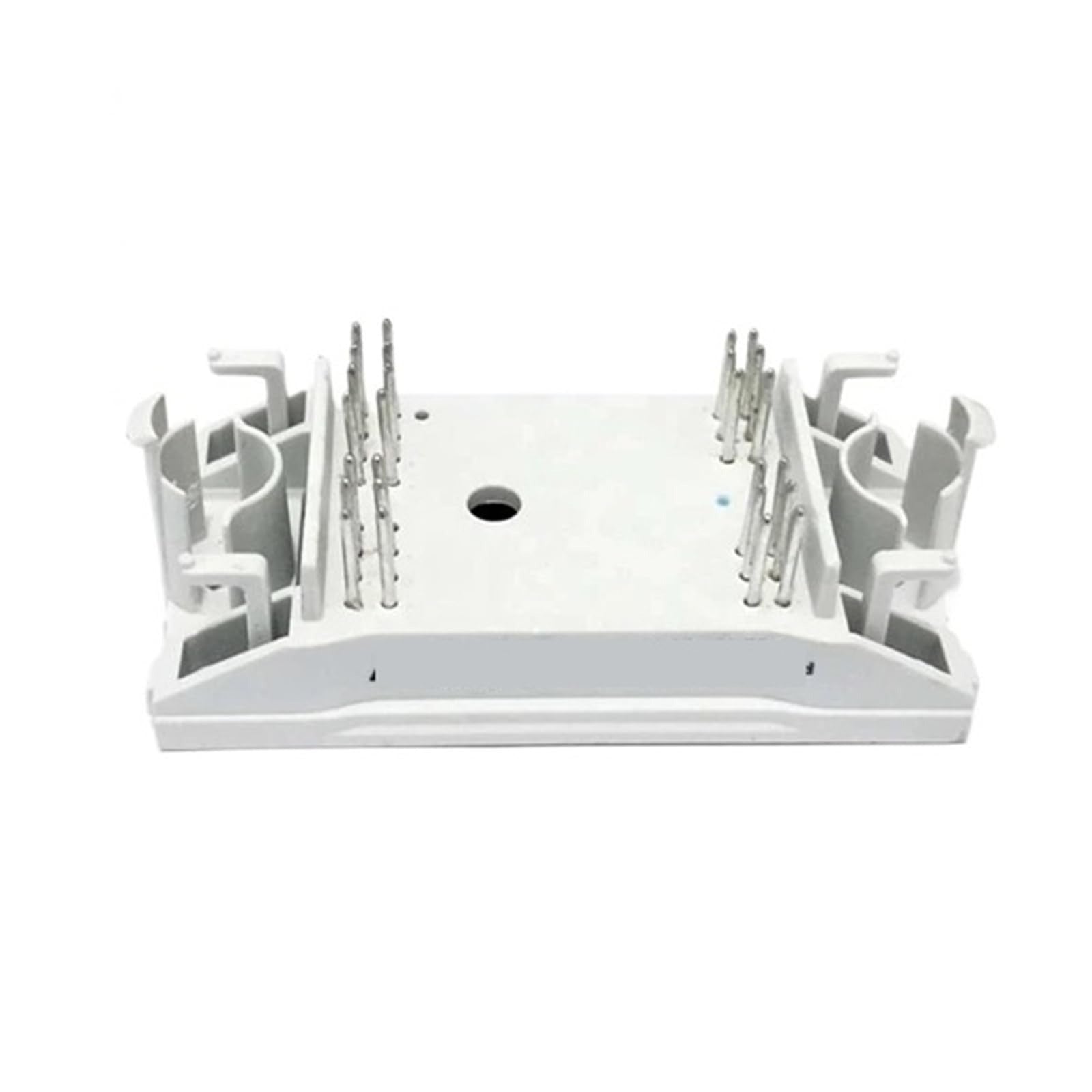

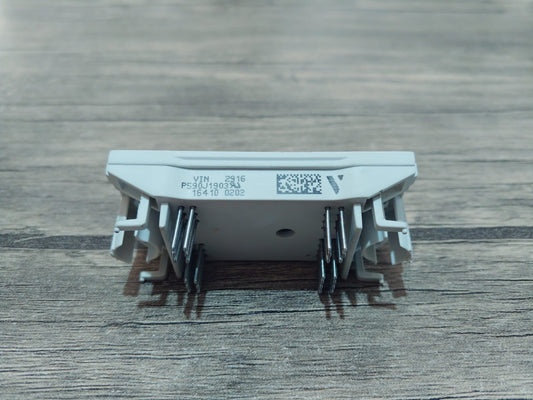

P590J1903 Power Module
The P590J1903 is a high-performance power module designed to deliver reliable and efficient operation in demanding industrial applications. Engineered for motor control systems, uninterruptible power supplies (UPS), and renewable energy inverters, this module provides exceptional performance under heavy load conditions. Its robust design ensures durability and consistent operation, making it ideal for both industrial and commercial environments.
With optimized low power dissipation, the P590J1903 enhances overall system efficiency while maintaining a high level of thermal stability. It can withstand harsh operating conditions thanks to a maximum junction temperature of 150°C and a total power dissipation of 139 W. Supporting both single-phase and three-phase rectifier configurations, this module offers versatility for various applications without compromising reliability.
The P590J1903 is designed for seamless integration into industrial drives and power electronics systems, ensuring smooth and stable performance even in challenging environments. Its high voltage rating, surge current capacity, and superior isolation make it a dependable choice for engineers seeking long-term durability and efficiency. For more detailed information, please refer to the Vincotech V23990-P590-J09-PM datasheet.
Key Specifications:
| Feature | Specification |
|---|---|
| Peak Repetitive Reverse Voltage (V_RRM) | 1600 V |
| Continuous Forward Current (I_F) | 109 A |
| Surge Forward Current (I_FSM) | 1380 A (10 ms pulse) |
| Total Power Dissipation (P_tot) | 139 W |
| Maximum Junction Temperature (T_jmax) | 150°C |
| Isolation Voltage (V_isol) | 4000 V DC (2s test) |
| Creepage Distance | >12.7 mm |
| Clearance | >12.7 mm |
| Comparative Tracking Index (CTI) | ≥200 |
