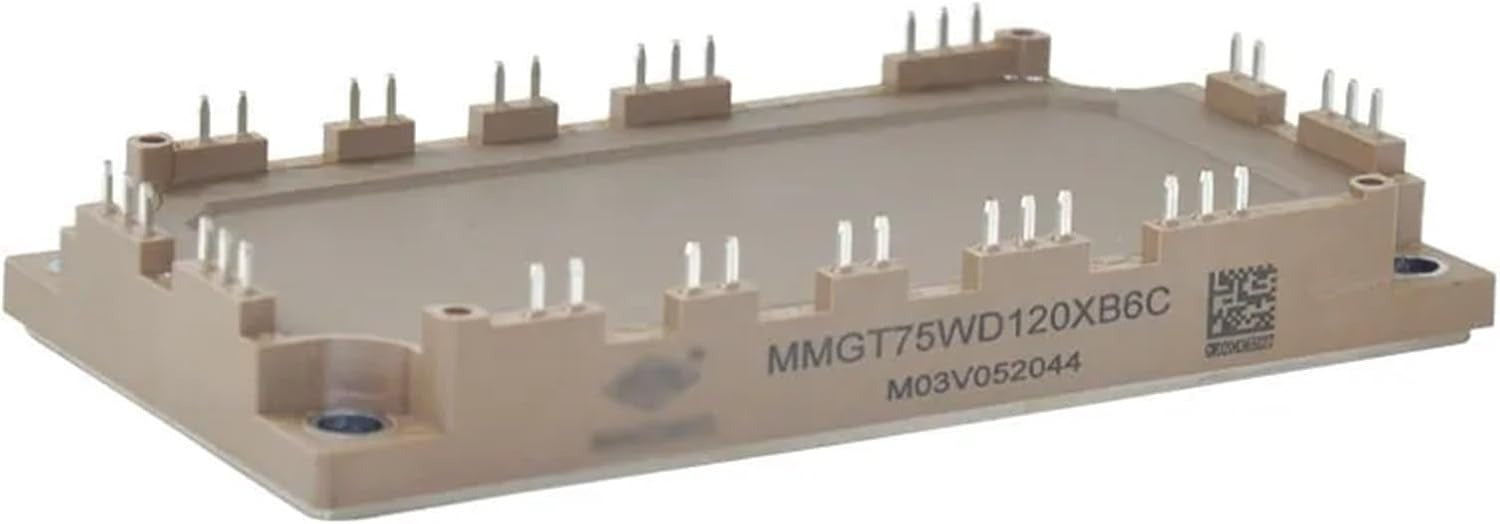

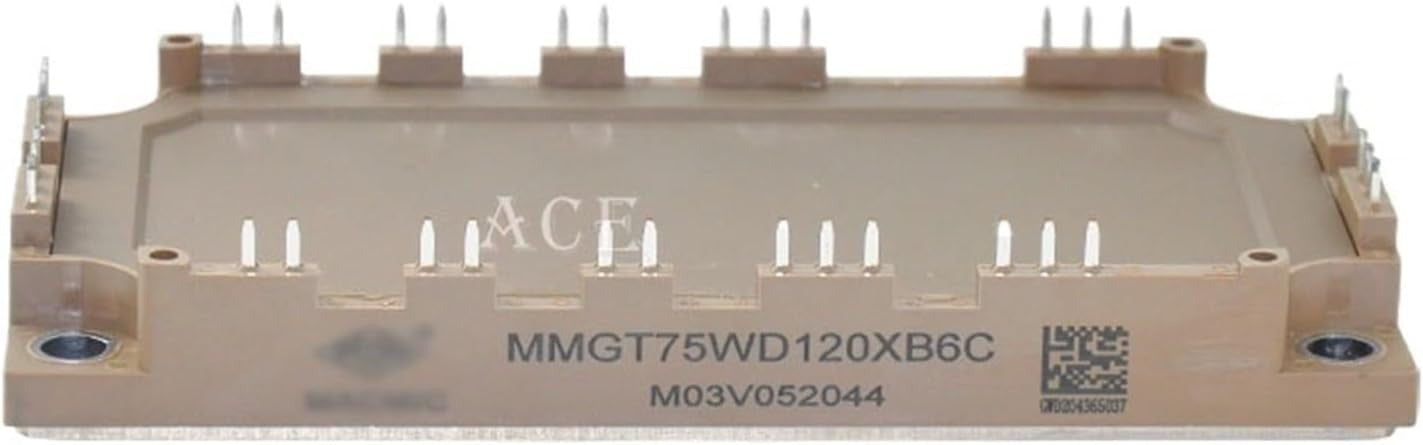

MMGT75W120XB6C — 1200V / 75A PIM IGBT Module
The MMGT75W120XB6C is a 1200 V, 75 A power integrated module (PIM) that incorporates IGBTs, free-wheeling diodes, and temperature sensing in a compact package. Designed for precise switching and efficient power conversion, this module is suitable for AC motor drives, inverters, UPS systems, and other industrial power electronics applications where reliable performance is required.

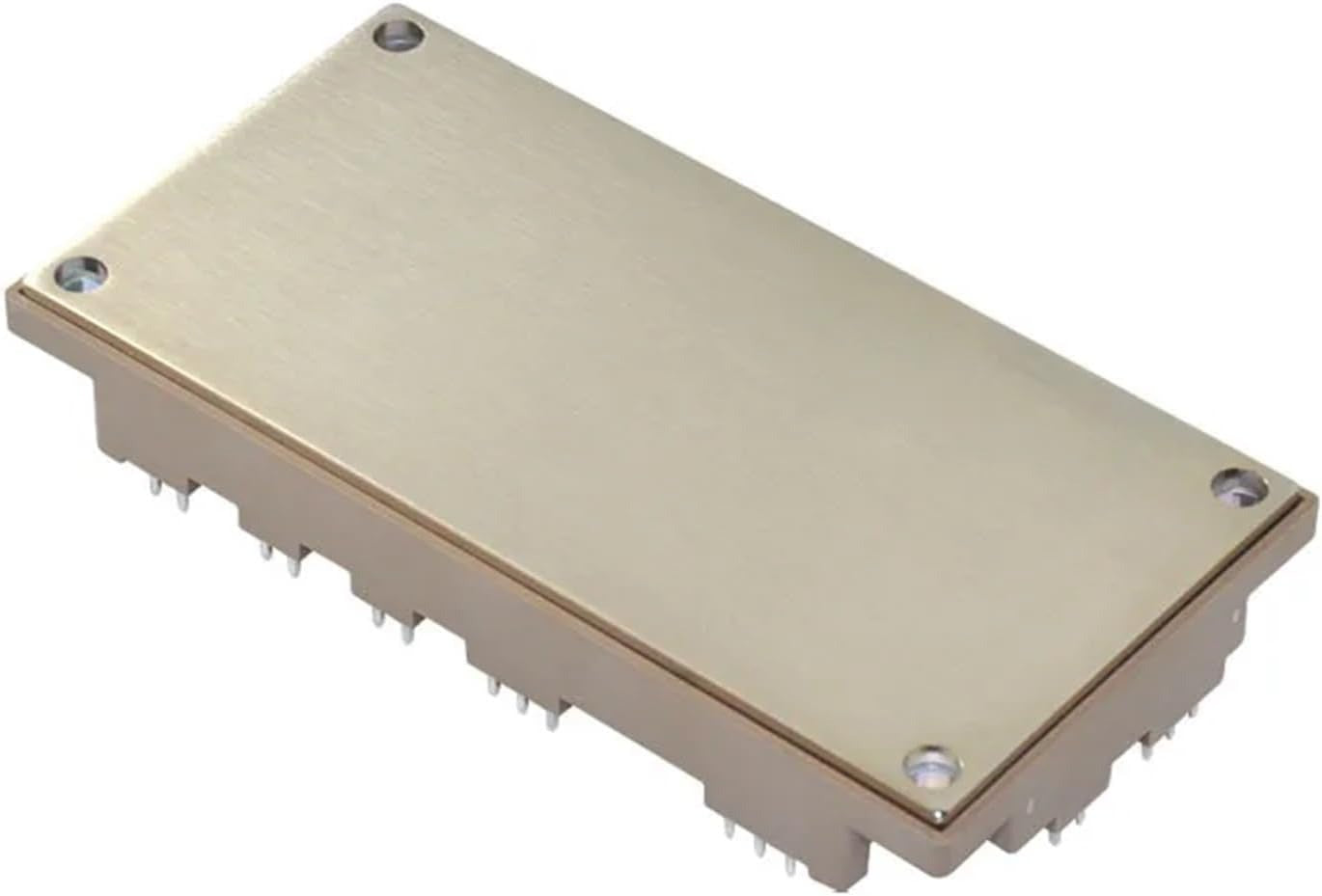

This module uses trench and field-stop IGBT technology, offering low conduction and switching losses along with stable thermal performance. The integrated diodes provide fast recovery characteristics, while the module’s positive temperature coefficient supports safe parallel operation. With its insulated baseplate and solderable terminals, the MMGT75W120XB6C simplifies thermal management and assembly in power conversion systems.
The MMGT75W120XB6C meets RoHS compliance standards and is designed for long-term durability in continuous operation. It supports typical applications such as rectifier-brake-inverter assemblies, servo controllers, and regenerative drives. Detailed electrical and mechanical parameters, including switching energy values, thermal resistance, and absolute maximum ratings, are provided in the manufacturer’s datasheet.
Key Specs
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 1200 V |
| Collector Current (IC) | 75 A |
| Package Type | PIM (Power Integrated Module) |
| Chip Technology | Trench + Field-Stop IGBT |
| Gate-Emitter Voltage (VGE) | ±20 V |
| Integrated Features | Free-wheeling diodes, temperature sensor |
| Baseplate | Insulated copper |
| Compliance | RoHS compliant |
| Typical Applications | AC motor drives, UPS, inverters, servo drives, rectifier/brake/inverter assemblies |
For full specifications, refer to the official MacMic datasheet: MMGT75W120XB6C Datasheet (PDF).
