CP25TD1-24Y

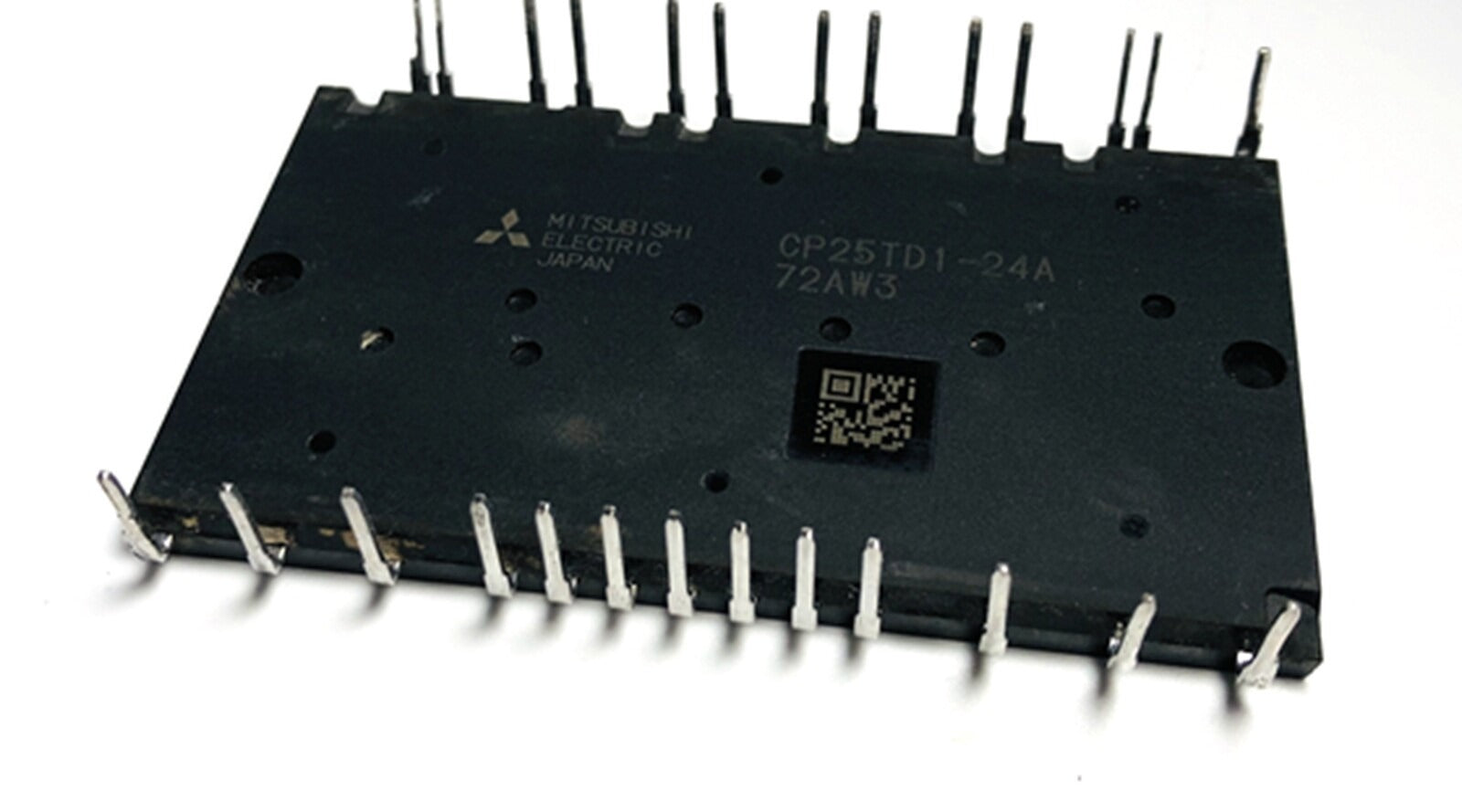

The CP25TD1-24Y is a 25 A / 1200 V DIP-CIB IGBT module in the CP25TD1 family. The module integrates a three-phase diode converter, a three-phase inverter and a brake circuit in a low-profile transfer-mold package with open emitters and an on-board thermistor for base-plate temperature sensing. These package and family characteristics (5.7 mm thickness, thermistor, open emitters) are documented in the CP25TD1 family datasheet.
Electrical ratings from the manufacturer datasheet show the inverter section rated VCES = 1200 V and IC = 25 A (DC, TC specified), with a pulse collector current ICM = 50 A and maximum collector dissipation PC = 138 W (TC = 25 °C). The brake and converter sections have their own limits (for example, the converter diode VRRM = 1600 V and IFM = 15 A per the datasheet). Gate and switching characteristics (VGE(th), VCE(sat), total gate charge QG, td(on)/td(off), trr/Qrr) are listed in the datasheet and should be used for gate-drive and thermal design.
Multiple distributor listings reference the exact part number CP25TD1-24Y; however, the authoritative technical values are published in the CP25TD1 datasheet (commonly filed as CP25TD1-24A by Powerex). If you require absolute confirmation for a specific vendor lot or minor suffix differences (for example “-24Y” vs “-24A”), check the seller’s certificate of conformance or the manufacturer’s original datasheet for that exact suffix. The Powerex CP25TD1 datasheet linked below contains the full electrical tables, timing graphs and mechanical drawings.
Key Specs
| Parameter | Value |
|---|---|
| Part / family | CP25TD1 family (part referenced as CP25TD1-24A in official datasheet; CP25TD1-24Y appears in distributor listings). |
| Rated collector current (IC) — inverter part | 25 A (DC, TC specified). |
| Collector-Emitter voltage (VCES) — inverter part | 1200 V. |
| Peak pulse collector current (ICM) — inverter part | 50 A (pulse). |
| Maximum collector dissipation (PC) — inverter part | 138 W (TC = 25 °C). |
| Brake part ratings | IC = 15 A (DC, TC = 100 °C), PC = 113 W (TC = 25 °C). |
| Converter diode (rectifier) | VRRM = 1600 V, IO = 25 A (three-phase rectifier); IFM = 15 A (forward current). |
| Package / dimensions | DIP-CIB transfer-mold module, ≈5.7 mm thick; outline and pinout in datasheet. |
| Thermal / sensing | Thermistor included for base-plate temperature sensing; TC measured under the chip per datasheet notes. |
| Typical switching / gate parameters (examples) | VGE(th) ≈ 6.5–8.5 V; VCE(sat) ≈ 1.8–2.5 V @ IC=25 A; Total gate charge QG ≈ 167 nC (VCC=600 V, IC=25 A). See datasheet for full table. |
| Isolation voltage / mechanical | VISO = 2500 VAC (pins to heatsink, 1 minute). Mounting torque M4 = 13 in-lb. Module weight ≈ 52 g |
For the full, original technical tables, timing graphs, absolute maximum ratings and mechanical drawings refer to the official CP25TD1 datasheet PDF (Powerex / CP25TD1 family):
Powerex CP25TD1-24A datasheet (PDF).
