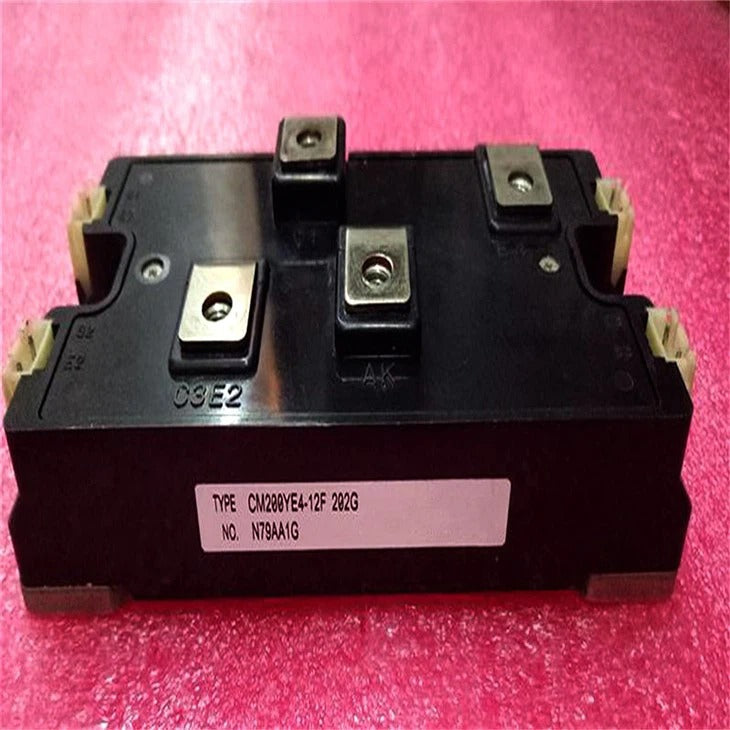

Mitsubishi CM300YE4-12F IGBT Module
The Mitsubishi CM300YE4-12F is a high-performance IGBT module engineered for demanding power electronics applications. With a collector-emitter voltage rating of 600V and a maximum collector current of 300A, it delivers robust performance suitable for various industrial and commercial systems. Its insulated base design ensures safe and reliable operation, making it ideal for applications such as motor drives, inverters, and power supplies.
This module incorporates Mitsubishi's advanced Carrier Stored Trench Gate Bipolar Transistor (CSTBT™) technology, which offers low on-state voltage and reduced switching losses. The low inductance package design further enhances its efficiency, allowing for high-frequency operation and minimizing power dissipation. These features contribute to improved system performance and energy savings, making the CM300YE4-12F a cost-effective choice for power control solutions.
Designed for durability and long-term reliability, the CM300YE4-12F operates within a junction temperature range of -40°C to +150°C. Its compact size and robust construction make it suitable for use in harsh industrial environments. Whether you're developing new systems or upgrading existing ones, this module provides the performance and reliability needed to meet modern power electronics challenges.
For more detailed information, please refer to the Mitsubishi datasheet: CM300YE4-12F Datasheet
Key Specifications:
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (V_CES) | 600 V |
| Collector Current (I_C) | 300 A |
| Gate-Emitter Voltage (V_GE) | ±20 V |
| Total Power Dissipation (P_T) | 400 W |
| Junction Temperature (T_j) | –40 to +150°C |
| Isolation Voltage (V_iso) | 2500 V |
| Mounting Torque | 2.2 N·m |
| Weight | 250 g |
| Package Type | Insulated Base |
