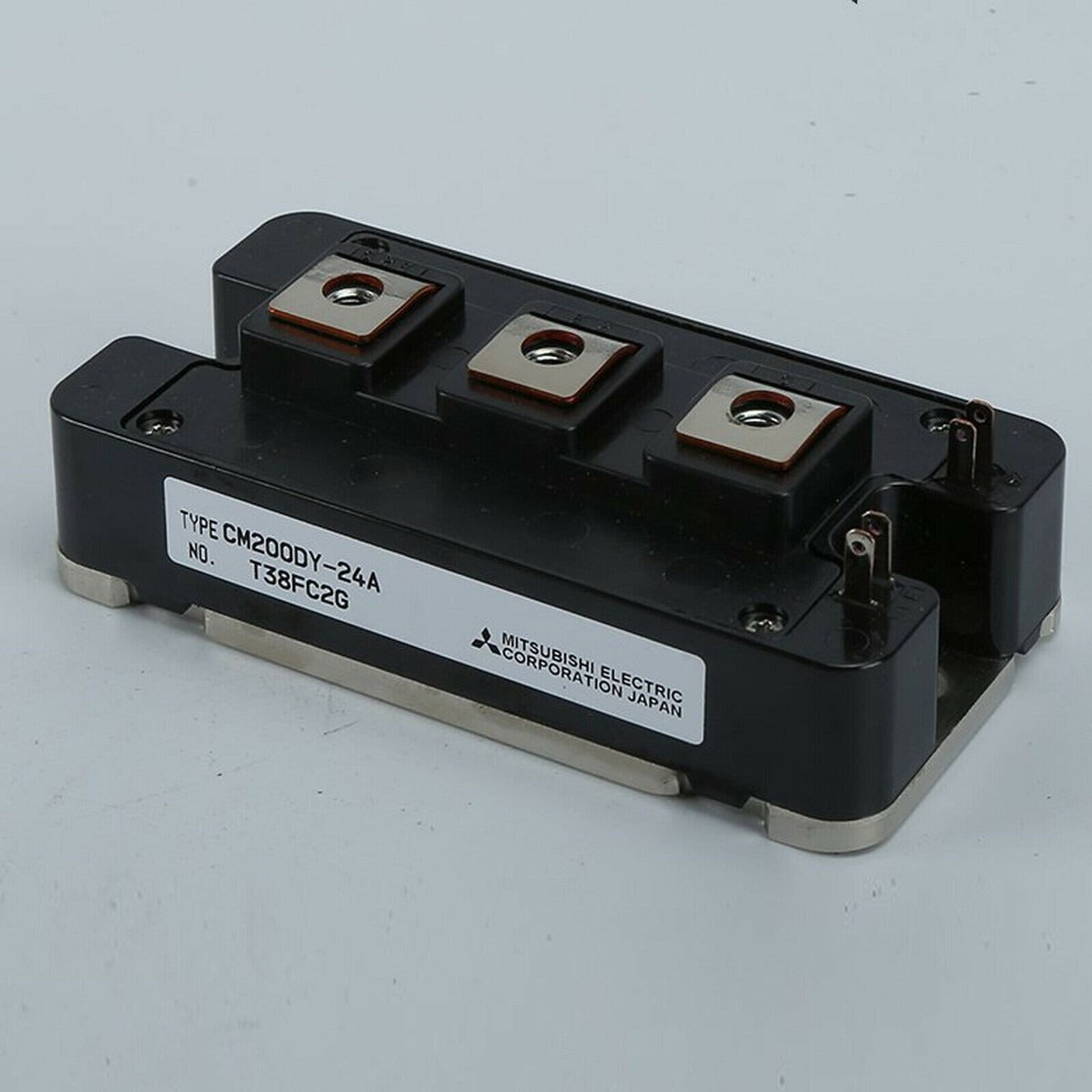

Mitsubishi CM200DY-24A IGBT Module
The Mitsubishi CM200DY-24A is a high-performance insulated gate bipolar transistor (IGBT) module designed for demanding power switching applications. With a collector-emitter voltage (V_CES) rating of 1200V and a continuous collector current (I_C) of 200A, it is engineered to handle substantial power loads efficiently. This module is particularly suitable for use in AC drive inverters, servo controls, and other industrial power electronic systems where reliability and performance are paramount.
Built with a dual-element configuration, the CM200DY-24A offers enhanced thermal management and reduced switching losses, ensuring optimal performance under continuous operation. Its insulated package design allows for straightforward integration into various systems, providing both electrical isolation and mechanical stability. The module's robust construction ensures durability and longevity, making it a reliable choice for industrial applications.
Whether you're developing motor drives, power supplies, or other high-power systems, the CM200DY-24A delivers the efficiency, durability, and performance required for modern industrial and commercial power electronics.
Key Specifications
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (V_CES) | 1200 V |
| Continuous Collector Current (I_C) | 200 A |
| Collector-Emitter Saturation Voltage (V_CE(sat)) | 2.1 V |
| Gate-Emitter Voltage (V_GE) | ±20 V |
| Power Dissipation (P_d) | 1340 W |
| Operating Junction Temperature (T_j) | -40°C to +150°C |
| Mounting Style | Screw Mount |
| Package Type | Insulated Type |
| Configuration | Dual Elements |
For more detailed information, please refer to the Mitsubishi CM200DY-24A datasheet.
