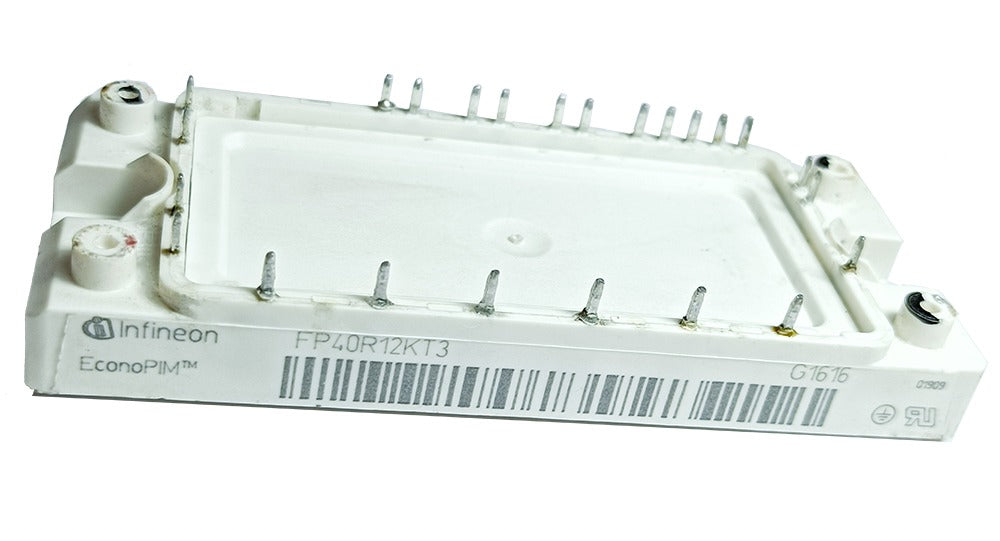

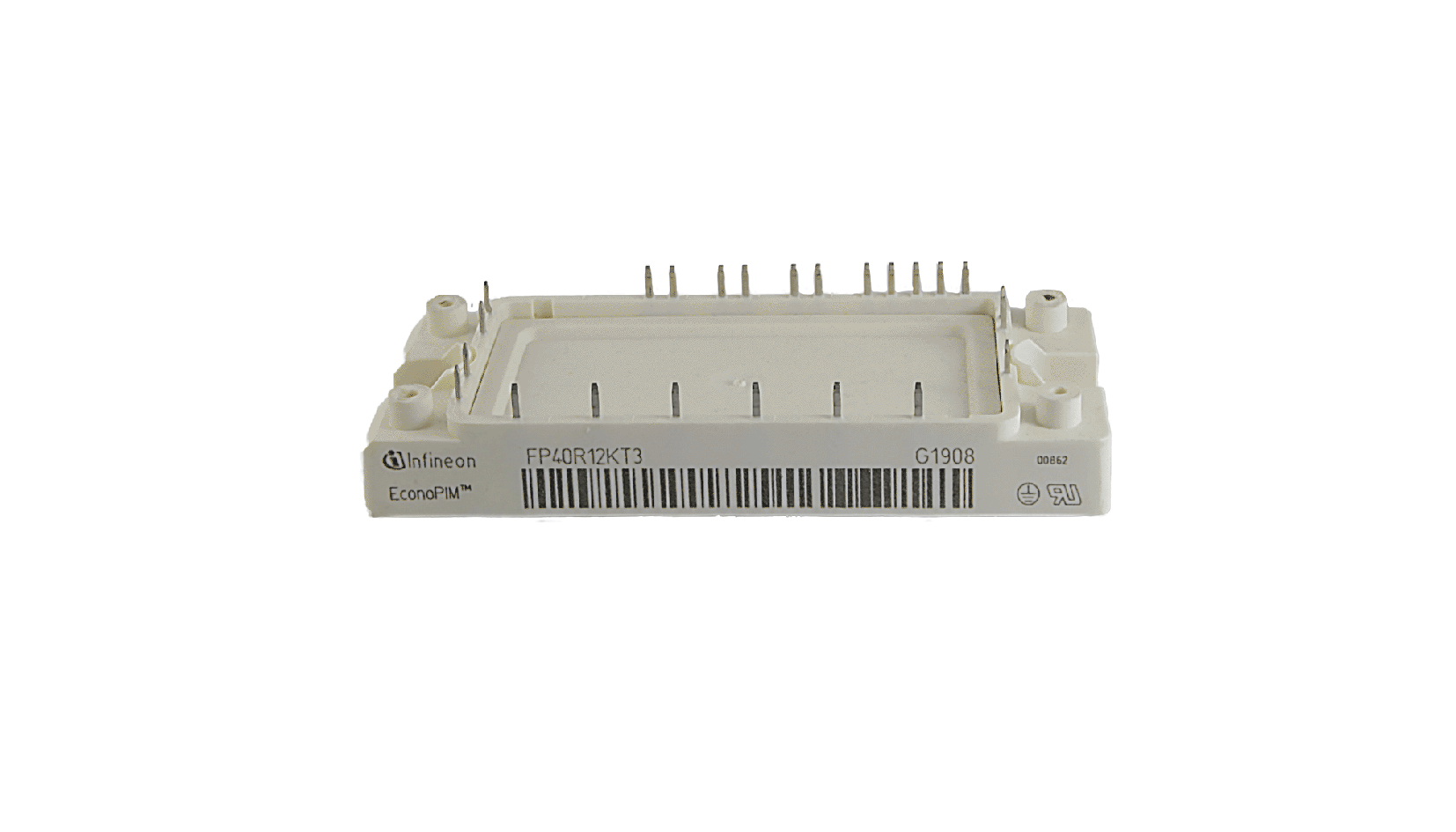

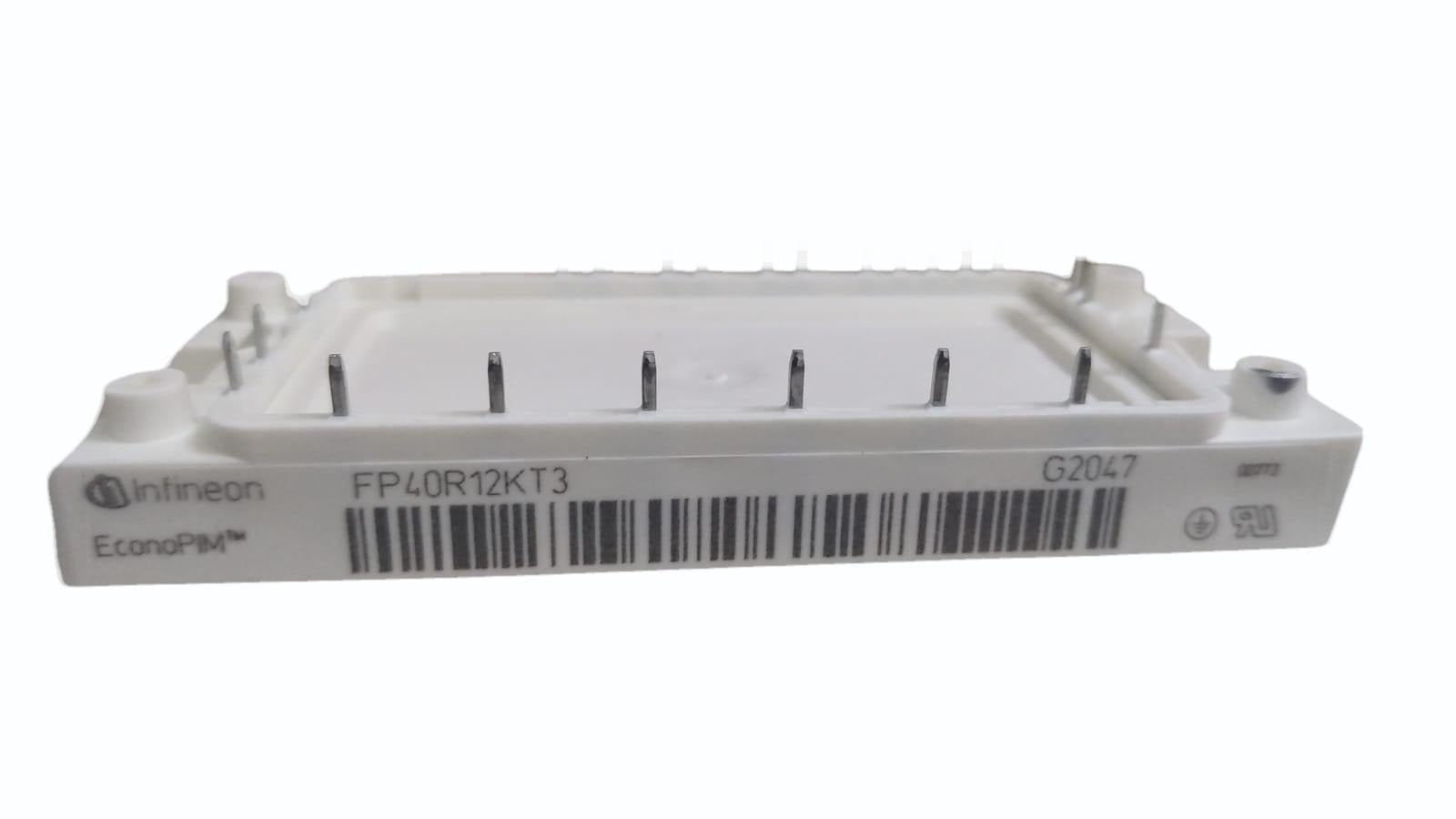

FP40R12KT3 — 1200 V / 40 A IGBT Power Module
The FP40R12KT3 is a high-performance IGBT module designed by Infineon to deliver efficiency, reliability, and long-term durability in power electronics. With a 1200 V blocking voltage and 40 A collector current rating, it is engineered to handle demanding industrial applications while minimizing power losses. Its robust Econo2 package provides excellent thermal management and compact integration, making it a trusted choice for OEMs and system integrators.
Optimized for frequency inverters, AC motor drives, UPS systems, and power supplies, the FP40R12KT3 stands out for its low conduction and switching losses, ensuring reduced energy consumption and heat dissipation. This efficiency translates into lower cooling requirements, enhanced system performance, and longer operating life. Its rugged construction and wide operating temperature range make it suitable for both industrial and commercial power conversion systems.
By combining proven Infineon technology with industry-standard packaging, the FP40R12KT3 enables reliable operation in a wide range of environments. It offers superior durability under thermal cycling, easy mounting for system designers, and compliance with RoHS standards. Whether for new equipment or maintenance of existing drives, this IGBT module provides an excellent balance of performance, durability, and cost-effectiveness.
Key Specs
| Specification | Value |
|---|---|
| Manufacturer | Infineon Technologies |
| Part Number | FP40R12KT3 |
| Type | IGBT Power Module |
| Collector-Emitter Voltage (V<sub>CE</sub>) | 1200 V |
| Collector Current (I<sub>C</sub>) | 40 A |
| Peak Current | Up to 55 A (depending on conditions) |
| Package | Econo2, screw-mount with copper baseplate |
| Max Junction Temperature (T<sub>j</sub>) | 125 °C |
| Gate-Emitter Voltage (V<sub>GE</sub>) | ±20 V |
| Applications | AC motor drives, frequency inverters, UPS, SMPS, traction converters |
| Compliance | RoHS compliant |
For more detailed electrical, thermal, and mechanical characteristics, please refer to the official Infineon datasheet: FP40R12KT3 Datasheet (PDF).
