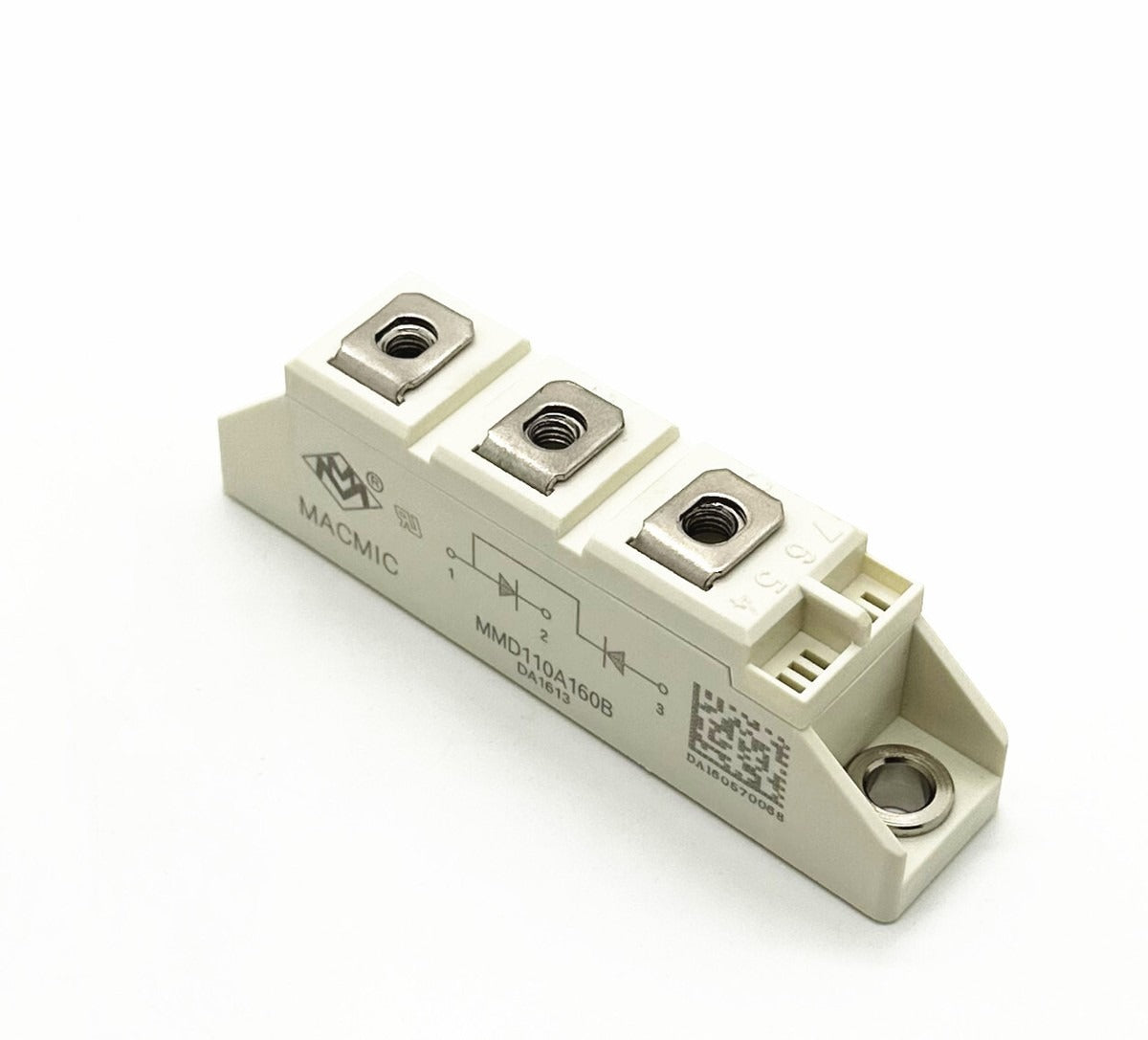

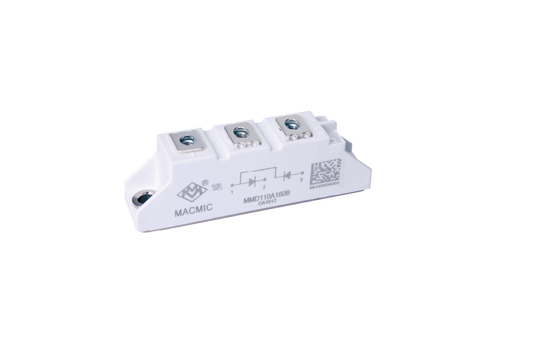

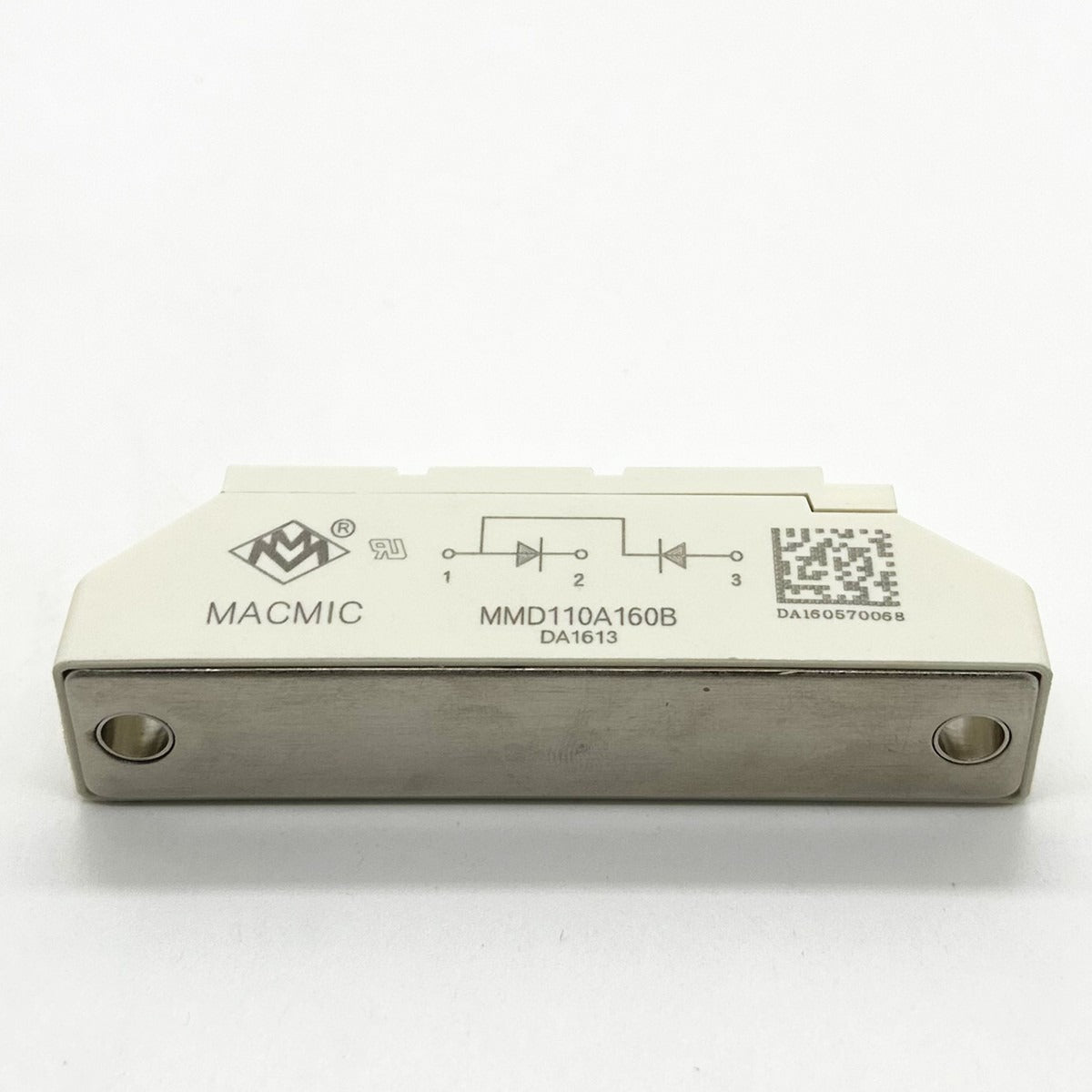

MACMIC MMD110A160B Rectifier Diode Module
The MACMIC MMD110A160B is a rectifier diode module designed for industrial and commercial power electronics applications. With a rated current of 110 A and a reverse voltage of 1600 V, it provides reliable power conversion for inverters, motor drives, and high-power supplies. Its semiconductor design and robust construction ensure consistent thermal and electrical performance under demanding conditions.
The module features low thermal resistance and high isolation voltage, allowing it to manage substantial power loads while maintaining stable operation. Its compact form factor supports effective heat dissipation, reducing the risk of overheating and ensuring system longevity. The MMD110A160B is suitable for various industrial and commercial setups, providing a balance of performance and reliability.
The MACMIC MMD110A160B supports efficient operation across a range of operating conditions. For detailed specifications and further information, refer to the MACMIC datasheet.
Key Specifications:
| Specification | Value |
|---|---|
| Rated Current | 110 A |
| Reverse Voltage | 1600 V |
| Power Dissipation | 410 W |
| Thermal Resistance (Junction to Case) | 0.3 K/W |
| Isolation Voltage | 3000 V AC (50Hz, 1 min) |
| Junction Temperature | -40 to +150 °C |
| Storage Temperature Range | -40 to +125 °C |
| Weight | 110 g |
| Recommended Torque (Module to Sink) | 3–5 N·m |
| Recommended Torque (Module Electrodes) | 2.5–5 N·m |
