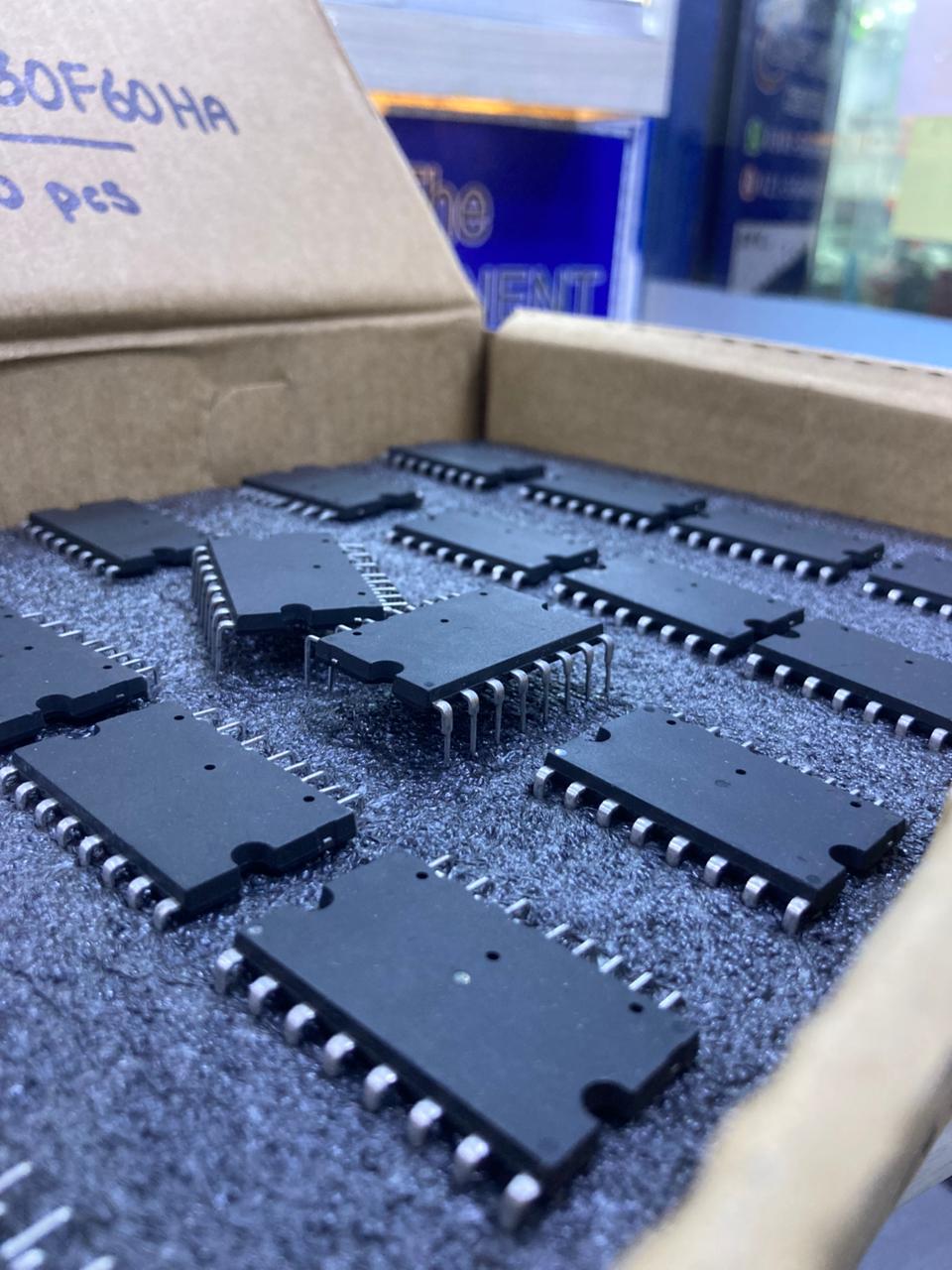

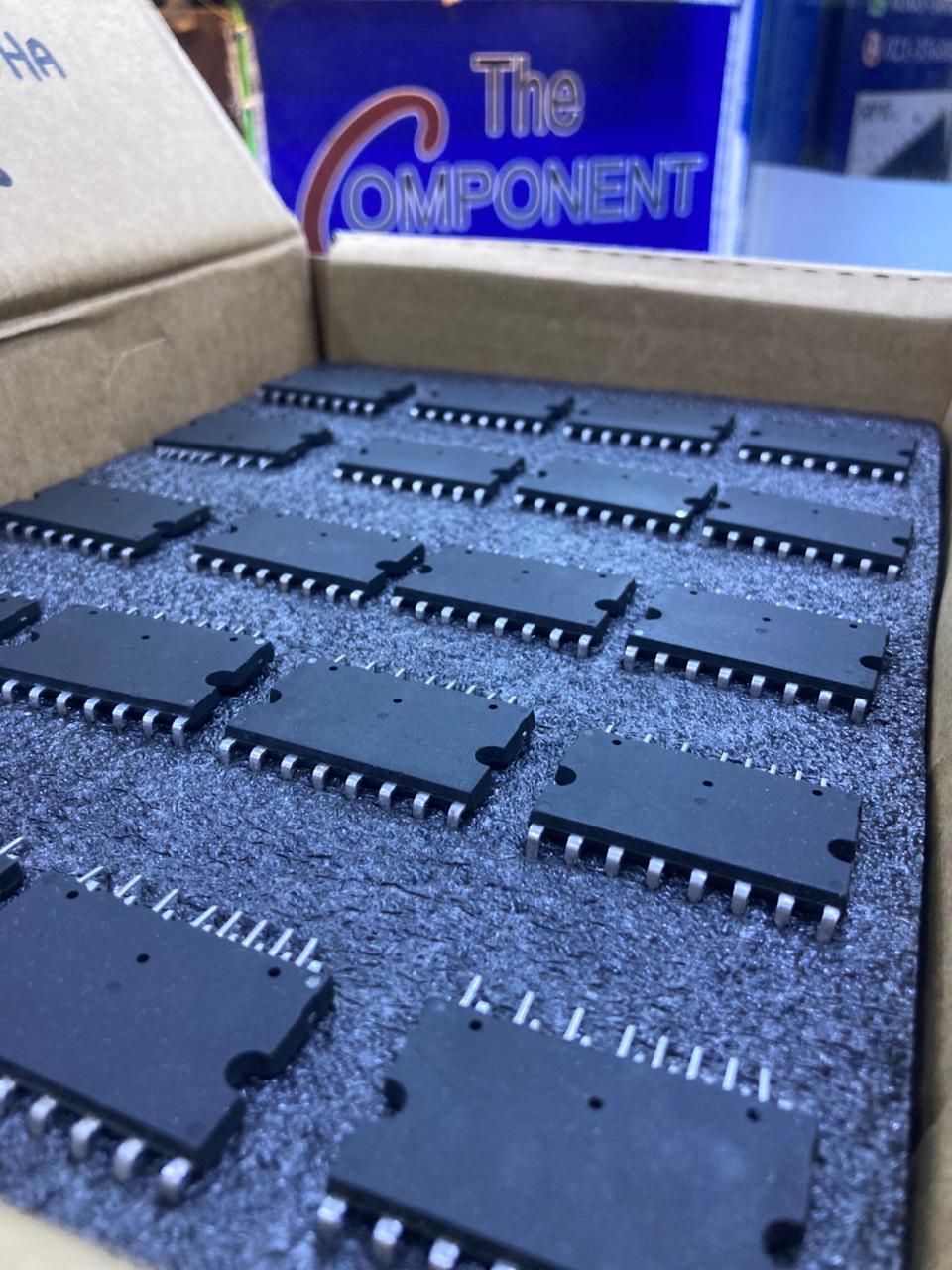

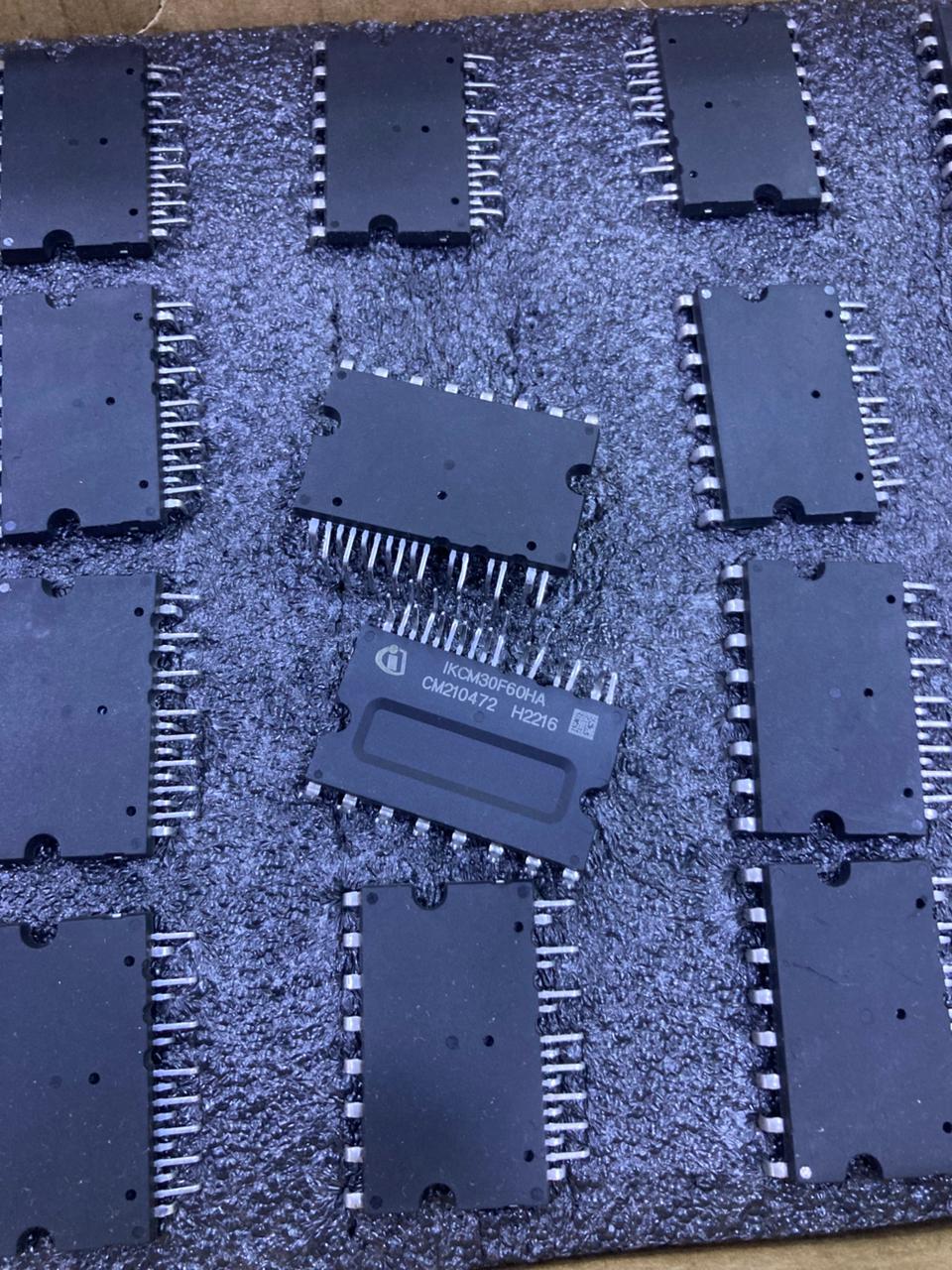

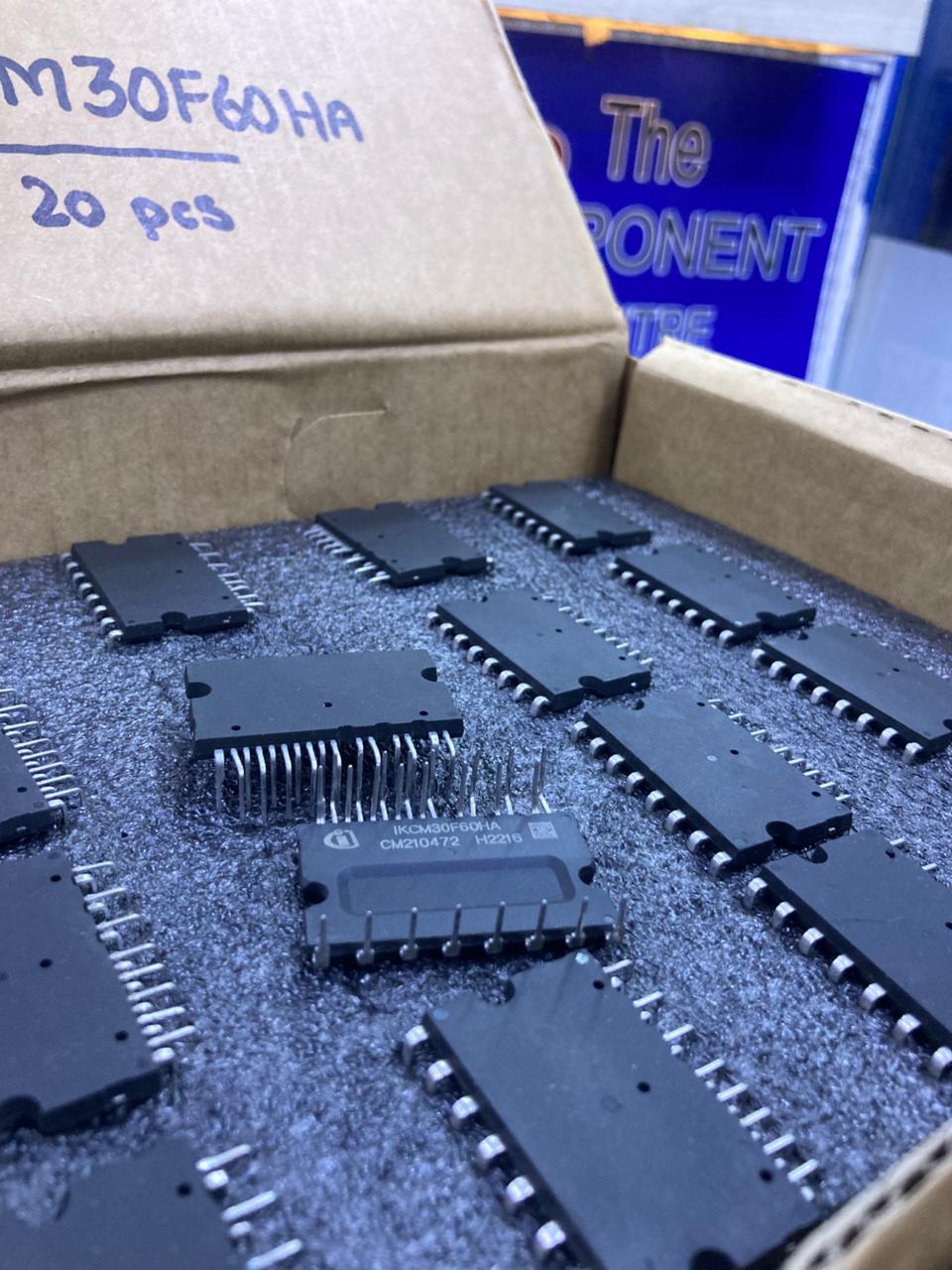

IKCM30F60HA – Intelligent Power Module for Industrial Applications
The Infineon IKCM30F60HA is an Intelligent Power Module (IPM) designed for industrial motor control applications. With a voltage rating of 600V and a current capacity of 30A, this module is suitable for controlling three-phase AC motors and permanent magnet motors in variable speed drives. It integrates TRENCHSTOP™ IGBTs and anti-parallel diodes, along with a SOI gate driver, ensuring reliable electrical performance in demanding environments.
The IKCM30F60HA features a fully isolated Dual In-Line molded package that provides thermal conduction and electrical isolation. Its design includes integrated bootstrap functionality, overcurrent shutdown, under-voltage lockout at all channels, and cross-conduction prevention, improving system protection and operational stability. The module is lead-free and RoHS compliant.
This IPM is used in home appliances such as dishwashers, refrigerators, washing machines, air conditioners, and fans, as well as in industrial motor control systems. Its compact form factor and built-in protection features make it practical for a variety of applications. For more detailed information, please refer to the Infineon datasheet.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage Rating (V_CE) | 600V |
| Current Rating (I_C) | 30A |
| Package Type | 24-PowerDIP |
| Isolation Voltage | 2000 Vrms |
| Gate Driver Technology | SOI (Silicon On Insulator) |
| Integrated Features | Bootstrap, Overcurrent Shutdown, Under-voltage Lockout, Cross-conduction Prevention |
| Compliance | RoHS, Lead-free |
| Applications | Home Appliances, Industrial Motor Drives |
