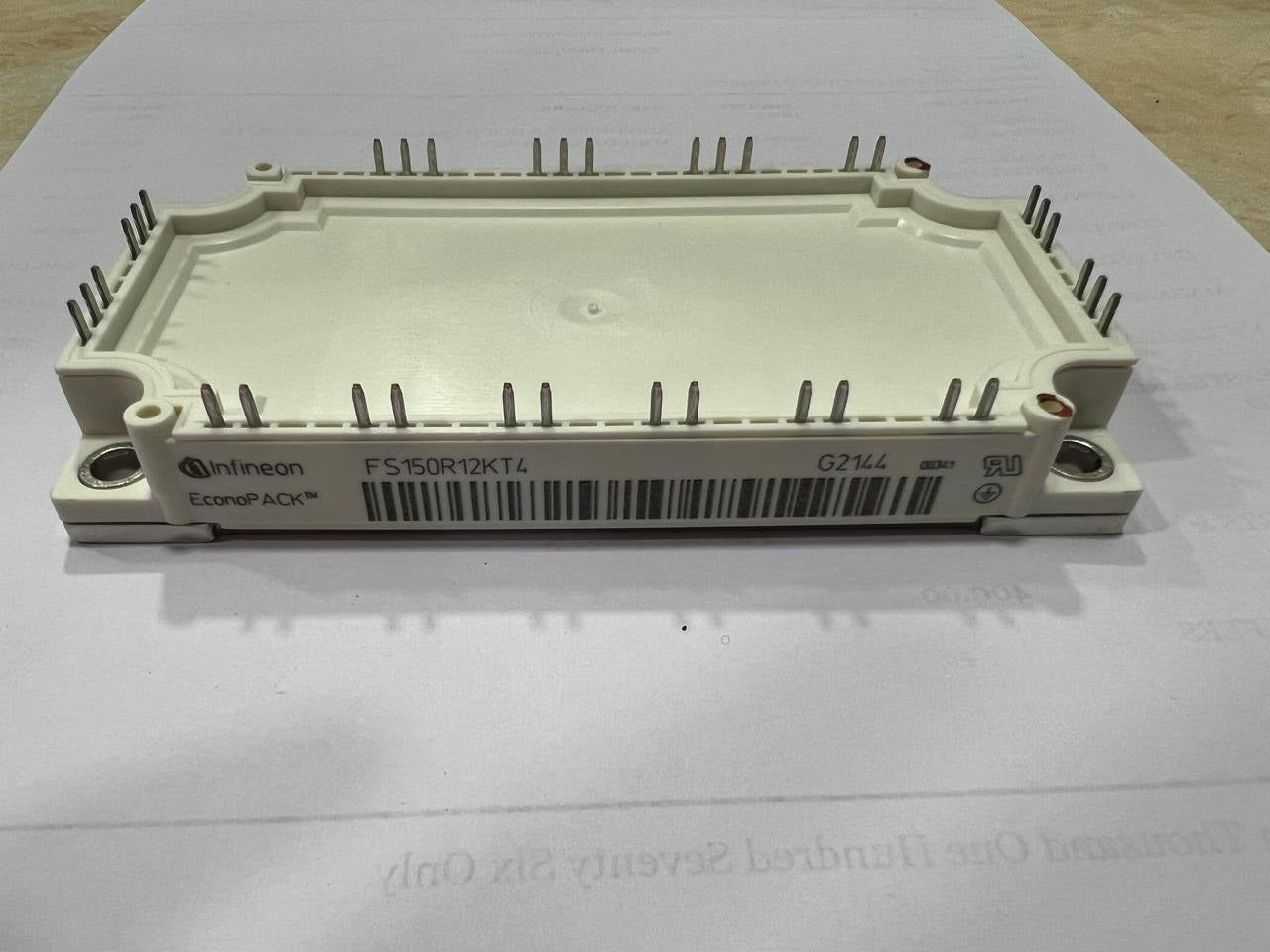

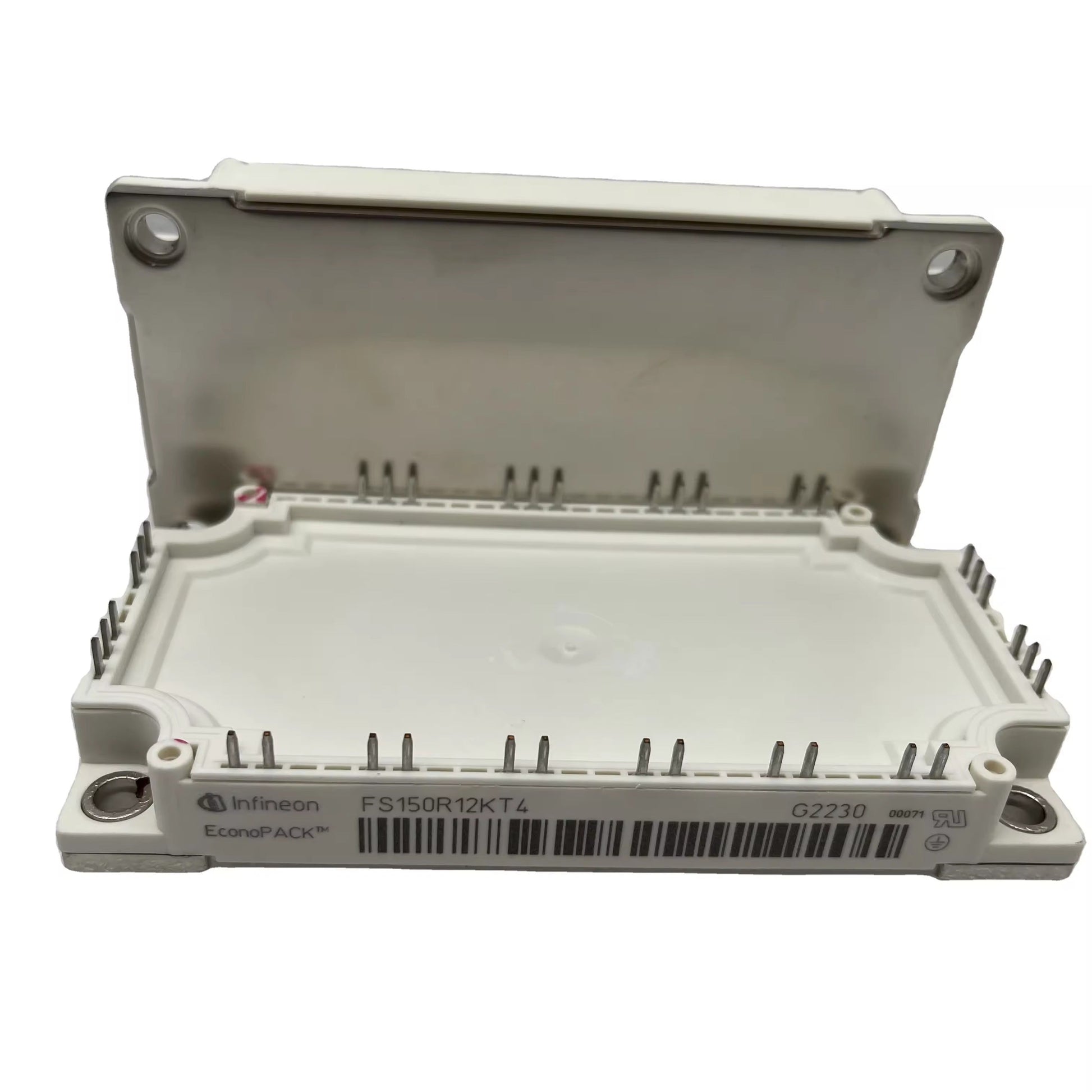

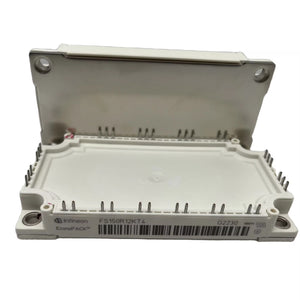

FS150R12KT4 IGBT Module
The FS150R12KT4 is a 1200V, 150A IGBT module from Infineon’s TRENCHSTOP™ IGBT4 series, designed for industrial and commercial power electronics applications. Housed in the EconoPACK™3 package, this module provides high current handling with low conduction losses, suitable for variable frequency drives (VFDs), uninterruptible power supplies (UPS), solar inverters, and servo drives. Its trench/fieldstop IGBT4 technology ensures stable switching performance and thermal management in high-frequency operation.
The FS150R12KT4 features a low collector-emitter saturation voltage (VCE(sat)) of 1.75V, reducing conduction losses. The module supports a maximum junction temperature of 150°C, allowing continuous operation in demanding conditions. Its integrated diode provides fast recovery and low reverse recovery charge, which improves efficiency in switching applications.
This module is suitable for a range of industrial and commercial power electronics applications, including motor drives, power supplies, and renewable energy systems, providing consistent performance under varying load conditions.
For more detailed information, please refer to the Infineon FS150R12KT4 datasheet.
Key Specifications
| Specification | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 1200 V |
| Continuous Collector Current (IC) | 150 A |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 1.75 V (typical) |
| Maximum Junction Temperature (Tj) | 150°C |
| Power Dissipation (Pd) | 750 W |
| Package Type | EconoPACK™3 |
| Switching Energy (Ets) | 21.5 mJ (typical) |
| Short Circuit Withstand Time (tpsc) | 10 µs |
| Thermal Resistance (junction-to-case) | 0.130 K/W |
| Gate-Emitter Leakage Current (IGES) | 100 nA |
For complete technical details, please consult the Infineon FS150R12KT4 datasheet.
