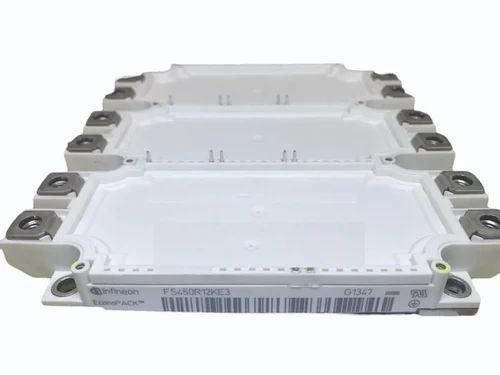

FS450R12KE3 IGBT Module: Power Conversion Solution
The FS450R12KE3 is a 1200V, 450A IGBT module from Infineon Technologies, designed for reliable power conversion in industrial and commercial applications. Housed in the EconoPACK™+ package, this module uses a three-level Neutral Point Clamped (NPC) topology, suitable for systems such as solar inverters, uninterruptible power supplies (UPS), and motor drives. Its design reduces switching losses and supports effective thermal management.
This module delivers high efficiency and supports high-frequency switching applications, enabling smaller passive components and more compact system designs. Its durability and performance make it suitable for industrial motor drives, renewable energy systems, and power-factor correction circuits.
For technical specifications, please refer to the Infineon FS450R12KE3 datasheet.
Key Specifications
| Specification | Value |
|---|---|
| Type | IGBT Module |
| Voltage Rating (Vce) | 1200 V |
| Current Rating (Ic) | 450 A |
| Power Dissipation (Ptot) | 2.1 kW |
| Collector-Emitter Saturation Voltage (Vce(sat)) | 1.7 V |
| Gate-Emitter Voltage (Vge) | ±20 V |
| Operating Temperature (Tj) | -40°C to +125°C |
| Package Type | EconoPACK™+ |
| Topology | Three-Level NPC |
| Mounting Style | Screw Mount |
| Dimensions (L x W x H) | 162 mm x 150 mm x 17 mm |
For more detailed information, please refer to the Infineon FS450R12KE3 datasheet.
