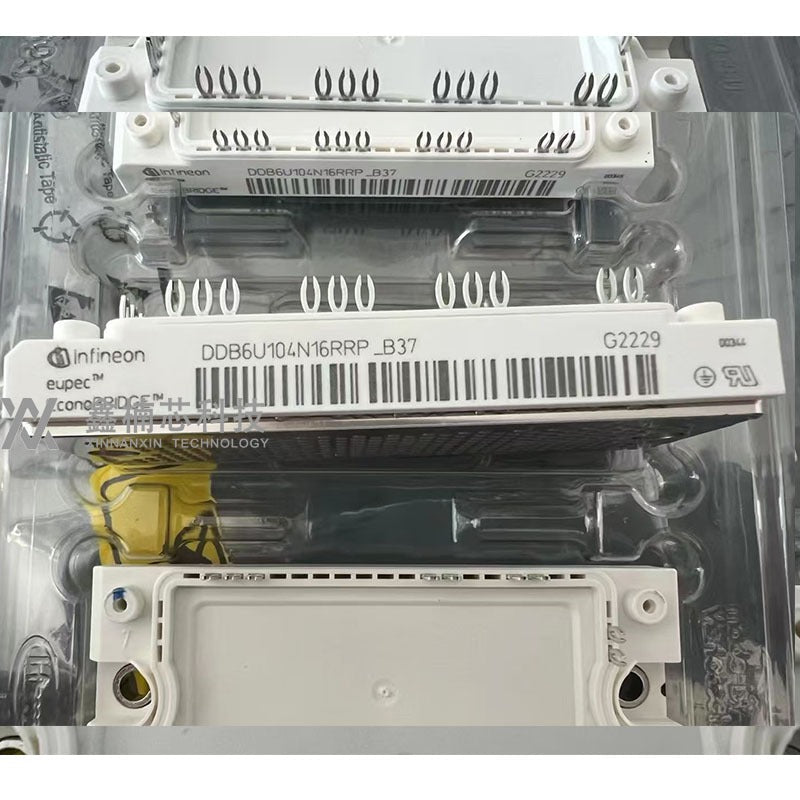

Infineon DDB6U104N16RRP-B37 1600V 104A Industrial IGBT Module
Regular price
Rs.0.00
DDB6U104N16RRP-B37
The DDB6U104N16RRP-B37 by Infineon Technologies is a power module designed for industrial power electronics. With a voltage rating of 1600V and a nominal current of 104A, it delivers reliable performance in systems such as auxiliary inverters, motor drives, air conditioning units, and servo drives. Its Trench/Fieldstop IGBT4 technology ensures low switching losses and high efficiency.
The module features an Al₂O₃ substrate with low thermal resistance for effective heat dissipation, while the isolated base plate and compact design allow straightforward integration into various systems. PressFIT contact technology supports easy installation and connection.
This module is RoHS compliant and includes pre-applied thermal interface material, providing stability across a wide operating temperature range. Its construction is suitable for both industrial and commercial use, ensuring consistent performance in demanding conditions.
Key Specifications
| Feature | Specification |
|---|---|
| Voltage Rating (VCES) | 1600V |
| Nominal Current (IC_nom) | 104A |
| Maximum Repetitive Collector Current (ICRM) | 208A |
| Operating Junction Temperature (Tvj_op) | 150°C |
| Thermal Interface | Pre-applied Thermal Interface Material |
| Substrate Material | Al₂O₃ (Alumina) |
| Base Plate | Isolated |
| Contact Technology | PressFIT |
| Package Type | EconoPACK™2 |
| Compliance | RoHS |
For detailed information, please refer to the Infineon DDB6U104N16RRP-B37 datasheet.
