FS100R12KE3

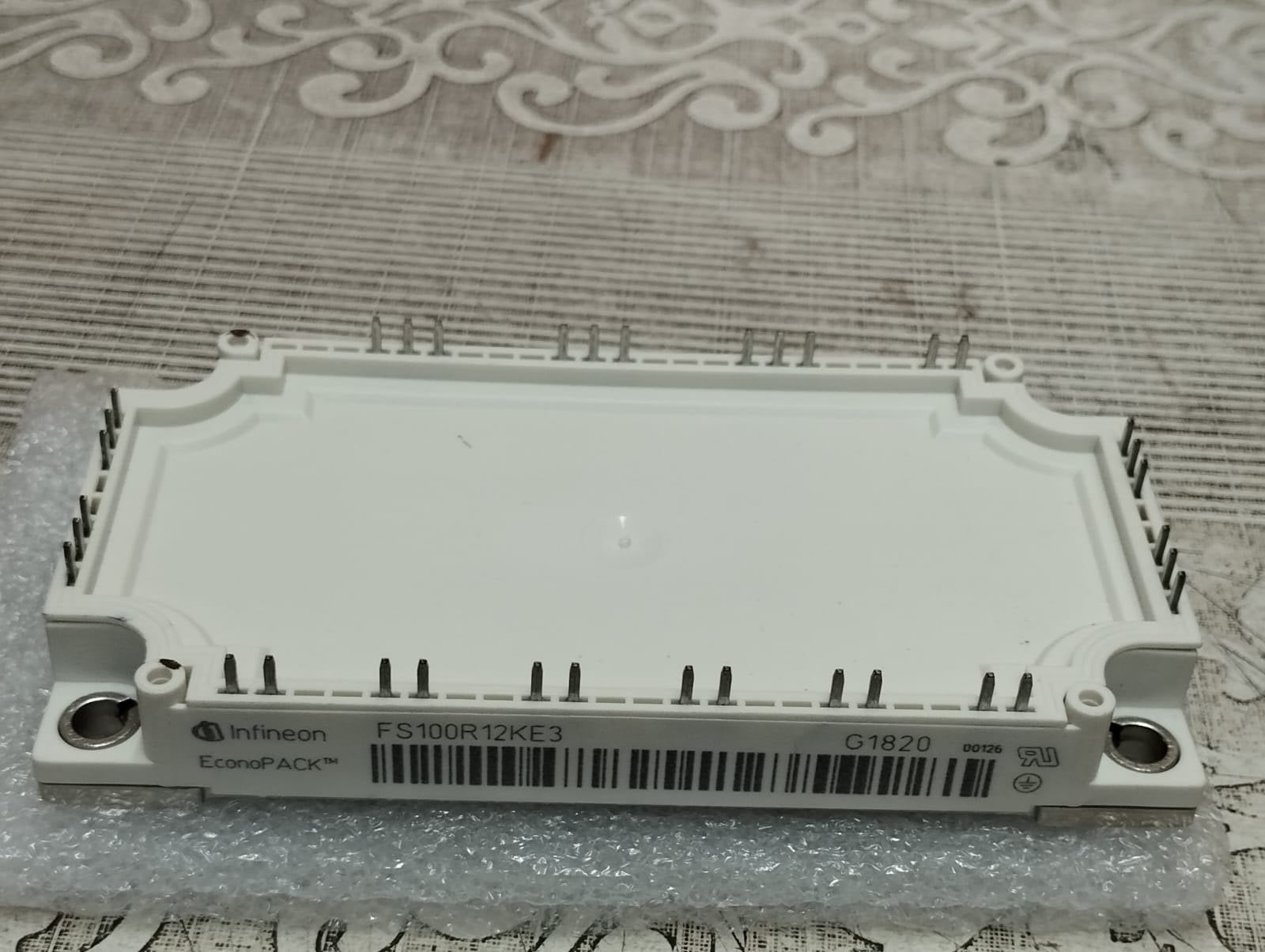

The FS100R12KE3 is a six-pack IGBT module from Infineon’s EconoPACK™ 3 series. It provides a collector-emitter voltage rating of 1200 V and a nominal current of 100 A, making it suitable for use in three-phase inverter configurations. Typical applications include industrial motor drives, renewable energy inverters, and uninterruptible power supplies. The compact EconoPACK™ 3 package design supports efficient thermal management and straightforward integration into power electronic systems.
This module is built on Trenchstop IGBT technology, which allows for reduced switching and conduction losses. With a low VCE(on) of approximately 2.15 V at 100 A and the capability to handle continuous current up to 140 A under specified conditions, it ensures reliable performance in demanding environments. Its mechanical design with screw-mount assembly supports secure installation and consistent operation.
The FS100R12KE3 is often used in medium-power conversion systems where stable operation and durability are required. Its housing dimensions of about 122 × 62 × 17 mm follow standard EconoPACK™ 3 outlines, enabling compatibility with common heatsinking and connection methods. For electrical characteristics, test conditions, and thermal ratings, please refer to the official datasheet.
Key Specs
| Specification | Value |
|---|---|
| Part Number | FS100R12KE3 |
| Manufacturer | Infineon Technologies |
| Package | EconoPACK™ 3, six-pack IGBT module |
| Collector-Emitter Voltage (Vces) | 1200 V |
| Nominal Current (IC) | 100 A |
| Continuous Collector Current (Ic at Tc conditions) | 140 A |
| VCE(on) (typical) | ~2.15 V @ VGE = 15 V, IC = 100 A |
| Maximum Power Dissipation | ~480 W |
| Operating Temperature Range | −40 °C to +125 °C |
| Gate-Emitter Voltage (VGE) | ±20 V |
| Dimensions | ~122 × 62 × 17 mm |
| Mounting | Screw mount |
For more detailed information, refer to the Infineon FS100R12KE3 Datasheet.
