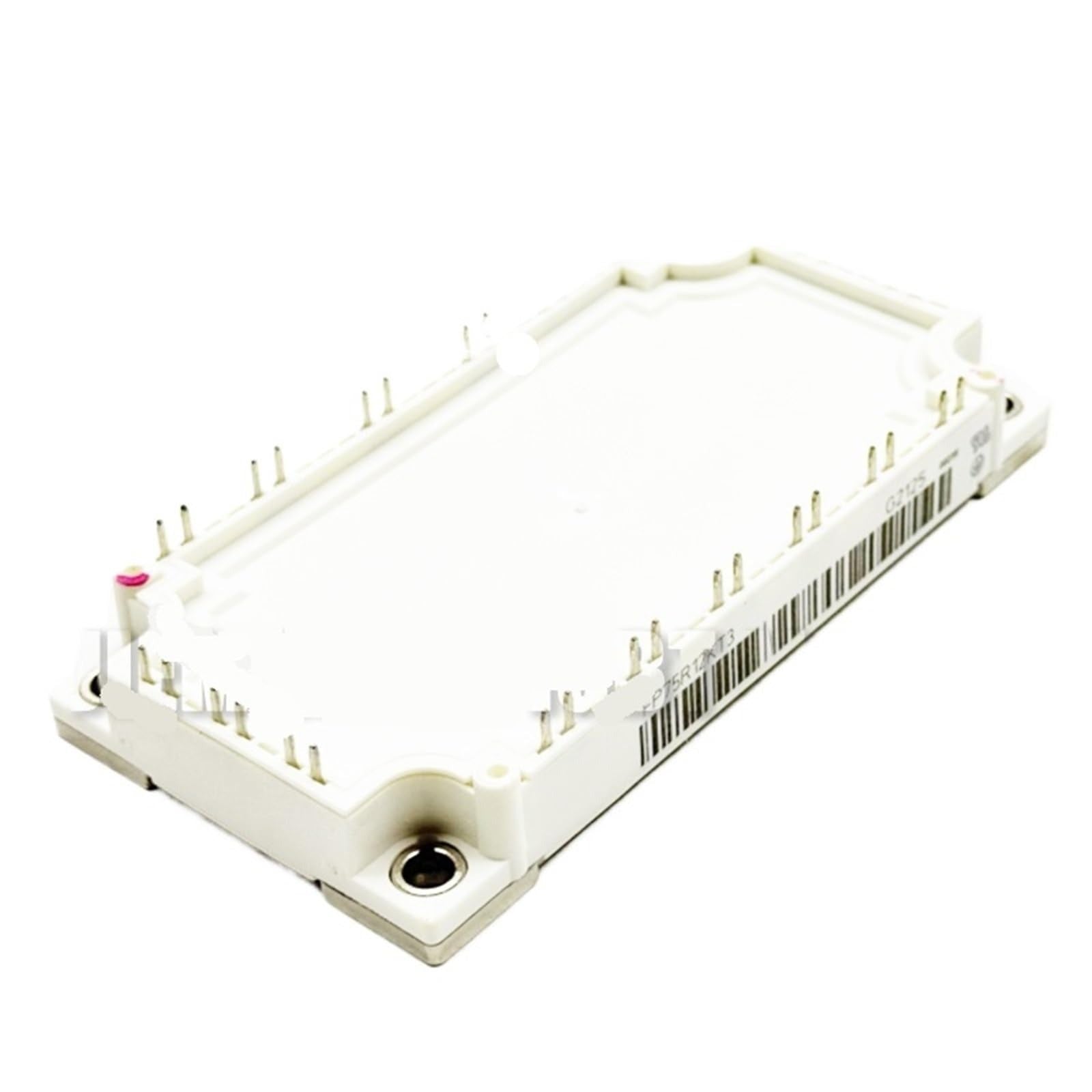

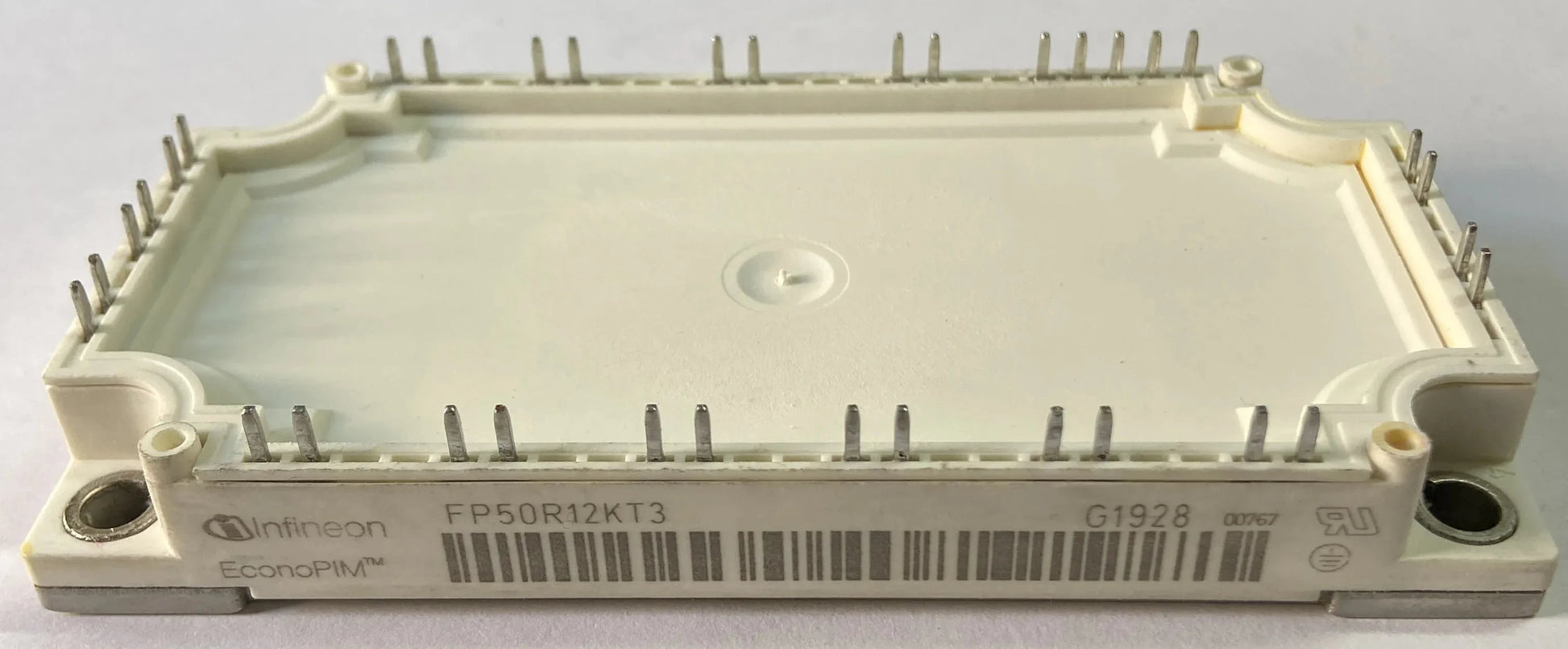

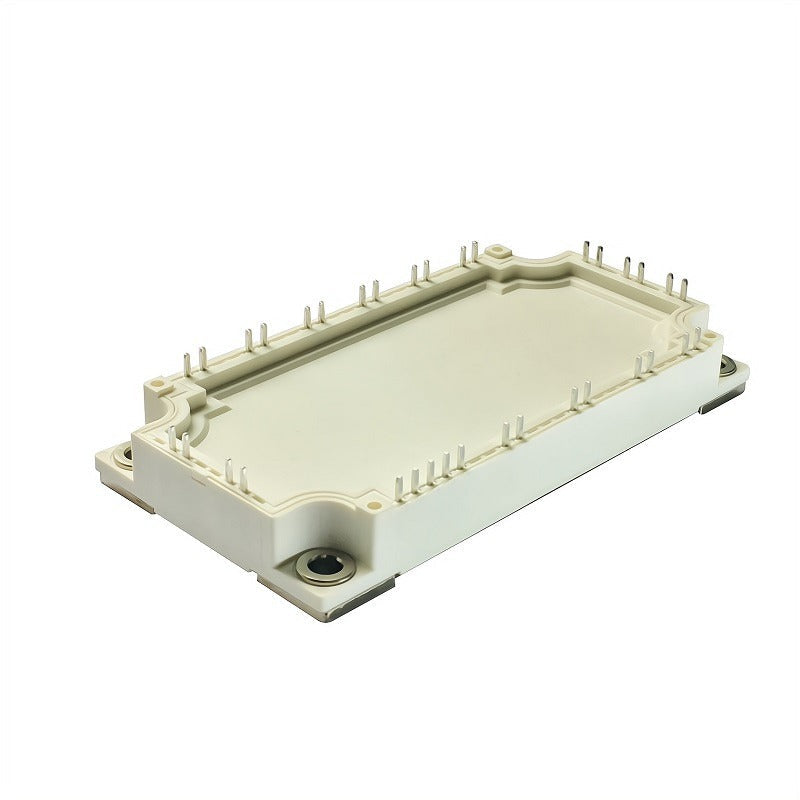

FP50R12KT3
The FP50R12KT3 is a compact IGBT module designed for power electronics applications requiring reliable switching and efficient performance. Using Infineon’s TRENCHSTOP technology in an Econo 3 package, it provides a 1.2 kV collector-emitter voltage and suitable continuous current for three-phase inverters, motor drives, and industrial power supplies.
With low VCE(sat) and a low-stray-inductance design, the module offers reduced switching losses and effective heat dissipation through its copper base plate. This supports stable operation under high power and extended duty cycles. Typical ratings include a VCE(sat) around 1.7 V and a total power dissipation near 280 W.
The FP50R12KT3 features a solderable pin layout and optional temperature sensor for system monitoring. Its standard package and mounting style simplify integration into AC drives, UPS, and solar inverters, providing a durable and efficient solution for industrial and commercial applications.
Key Specs
| Parameter | Value |
|---|---|
| Manufacturer | Infineon Technologies |
| Part number | FP50R12KT3 |
| Collector-Emitter Voltage (V_CE0) | 1200 V |
| Continuous Collector Current (I_C @ 25 °C) | 75 A |
| Pulse Collector Current (I_Cpulse) | 75 A |
| Collector-Emitter Saturation Voltage (VCE(sat)) | ≈ 1.7 V |
| Total Power Dissipation (P_tot) | ~280 W |
| Maximum Junction Temperature (T_j,max) | +125 °C |
| Gate-Emitter Voltage (V_GE max) | ±20 V |
| Package / Case | Econo 3 (EconoPIM) |
| Mounting style | Screw mount; solderable pins |
| Compliance | RoHS compliant |
For more detailed information, please refer to the Infineon datasheet FP50R12KT3 Datasheet.
