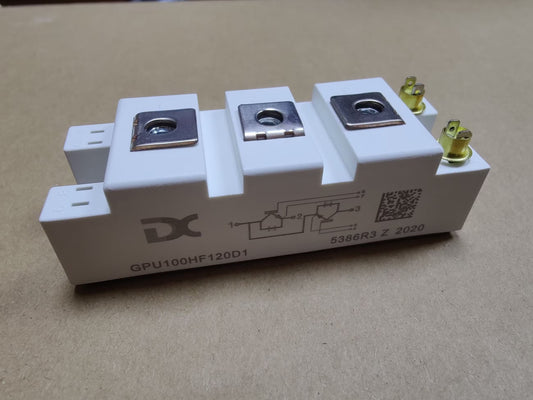

GPU100HF120D1 IGBT Module
The GPU100HF120D1 is a robust 1200V, 100A IGBT module engineered for demanding industrial applications. Built upon advanced technology, this module offers exceptional switching performance and low conduction losses, making it ideal for high-efficiency motor drives, inverters, and uninterruptible power supplies (UPS).
Designed with a compact housing and PressFIT contact technology, the GPU100HF120D1 ensures reliable mechanical and electrical connections, simplifying assembly and enhancing system longevity. Its aluminum oxide (Al₂O₃) substrate provides excellent thermal conductivity, supporting continuous operation at junction temperatures up to 150°C. The integrated NTC thermistor allows for precise temperature monitoring, further safeguarding the module against thermal stress.
Whether you're developing high-power motor drives or sophisticated power conversion systems, the GPU100HF120D1 delivers the performance, durability, and efficiency required for modern industrial applications.
Key Specifications
| Specification | Value |
|---|---|
| Module Type | IGBT Module |
| Voltage Rating (V_CEO) | 1200 V |
| Current Rating (I_C) | 100 A |
| Power Dissipation (P_D) | 431 W |
| Collector-Emitter Saturation Voltage (V_CE(sat)) | 3.2 V @ 100 A |
| Gate-Emitter Threshold Voltage (V_GEth) | 5.7 V |
| Maximum Junction Temperature (T_j) | 150°C |
| Package Type | Half Bridge Module |
| Contact Technology | PressFIT |
| Substrate Material | Al₂O₃ Ceramic |
| Weight | 290 g |
For more detailed information, please refer to the HMSEMI datasheet.
