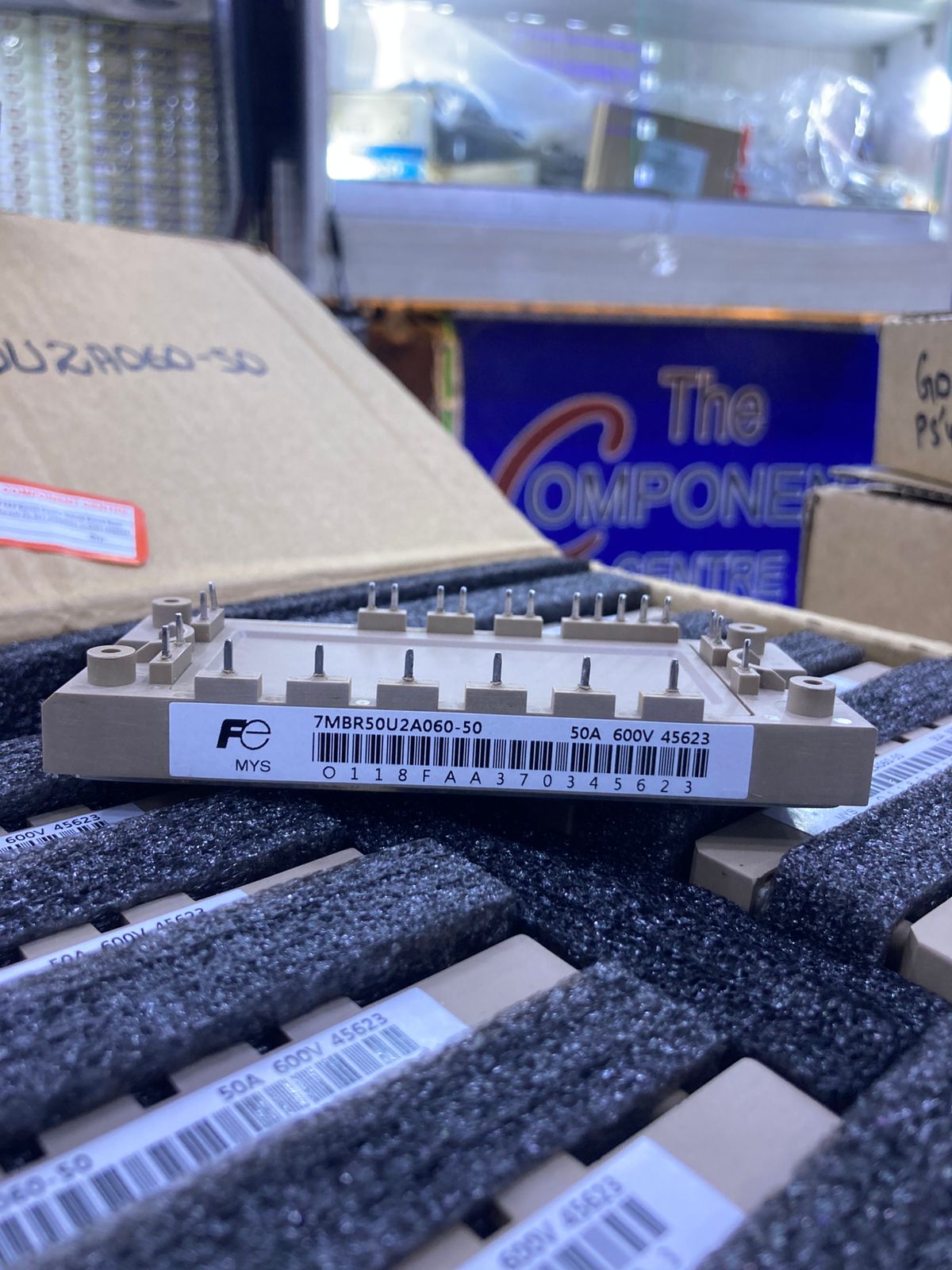

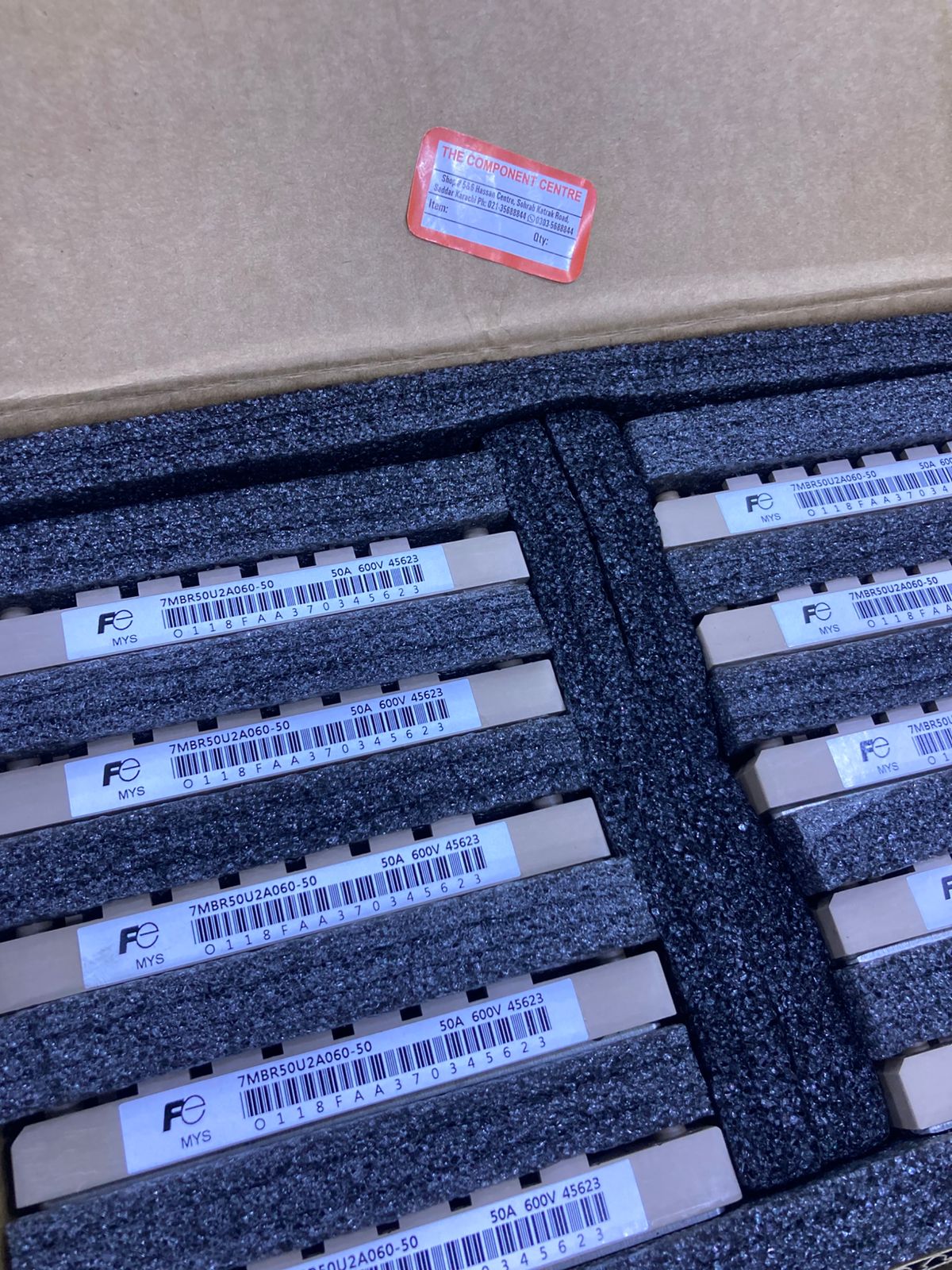

Fuji Electric 7MBR50U2A060-50 600V 50A IGBT Module
Regular price
Rs.10,500.00
Sale price
Rs.11,500.00
7MBR50U2A060-50 — Fuji Electric 600 V / 50 A PIM IGBT Module
The 7MBR50U2A060-50 from Fuji Electric is a U-series power integrated module (PIM) designed for 600 V and 50 A operation. It is built for use in inverters, servo drives, UPS systems, and other industrial power applications that require stable switching and low conduction losses. The module integrates an IGBT and a free-wheeling diode in an insulated package to simplify system design and improve overall reliability.
The module provides a typical collector-emitter saturation voltage (VCE(sat)) of approximately 2.25 V at rated conditions, contributing to reduced power loss. With a maximum junction temperature of +150 °C and a junction-to-case thermal resistance of about 0.67 °C/W (with thermal compound), it is suitable for continuous duty under controlled thermal conditions. The isolation voltage of AC 2500 V between terminals and base ensures safety in industrial environments.
The 7MBR50U2A060-50 is designed for PCB or chassis mounting with recommended screw torque of 2.5–3.5 N·m (M5). It offers surge current handling capability of around 350 A and features a wide storage temperature range of −40 °C to +125 °C. For detailed electrical characteristics, mechanical drawings, and application guidance, please consult the official datasheet.
Key Specs
| Parameter | Value | Notes |
|---|---|---|
| Manufacturer | Fuji Electric | — |
| Part number | 7MBR50U2A060-50 | U-series PIM |
| Module type | IGBT module (PIM) | Insulated package |
| Collector-Emitter voltage (VCES) | 600 V | Absolute rating |
| Gate-Emitter voltage (VGES) | ±20 V | Absolute rating |
| Continuous collector current (IC) | 50 A | Tc = 25 °C |
| Surge current (IFSM) | ~350 A | Half-sine, datasheet conditions |
| VCE(sat) (typical) | ~2.25 V | IC = 50 A, VGE = 15 V |
| Thermal resistance Rth(j-c) | ~0.67 °C/W | With thermal compound |
| Junction temperature (Tj) | +150 °C | Maximum rating |
| Storage temperature (Tstg) | −40 to +125 °C | — |
| Isolation voltage (Viso) | AC 2500 V | Terminal to base |
| Mounting torque | 2.5–3.5 N·m | M5 screws |
| Applications | Motor drives, inverters, servo amplifiers, UPS | — |
For more detailed information, please refer to the official Fuji Electric datasheet: 7MBR50U2A060 Datasheet (PDF).
We deliver all across Pakistan through trusted courier partners, including TCS and Leopards. Our nationwide shipping ensures that your order reaches you within 2 to 3 working days. Delivery charges are calculated based on the total parcel weight — for example, 1kg, 2kg, or 3kg packages may vary in cost accordingly.
