Infineon FP50R12KT4 1200V 50A IGBT Module
Regular price
Rs.15,000.00
Sale price
Rs.16,000.00
Infineon FP50R12KT4 — 1200 V IGBT Power Module

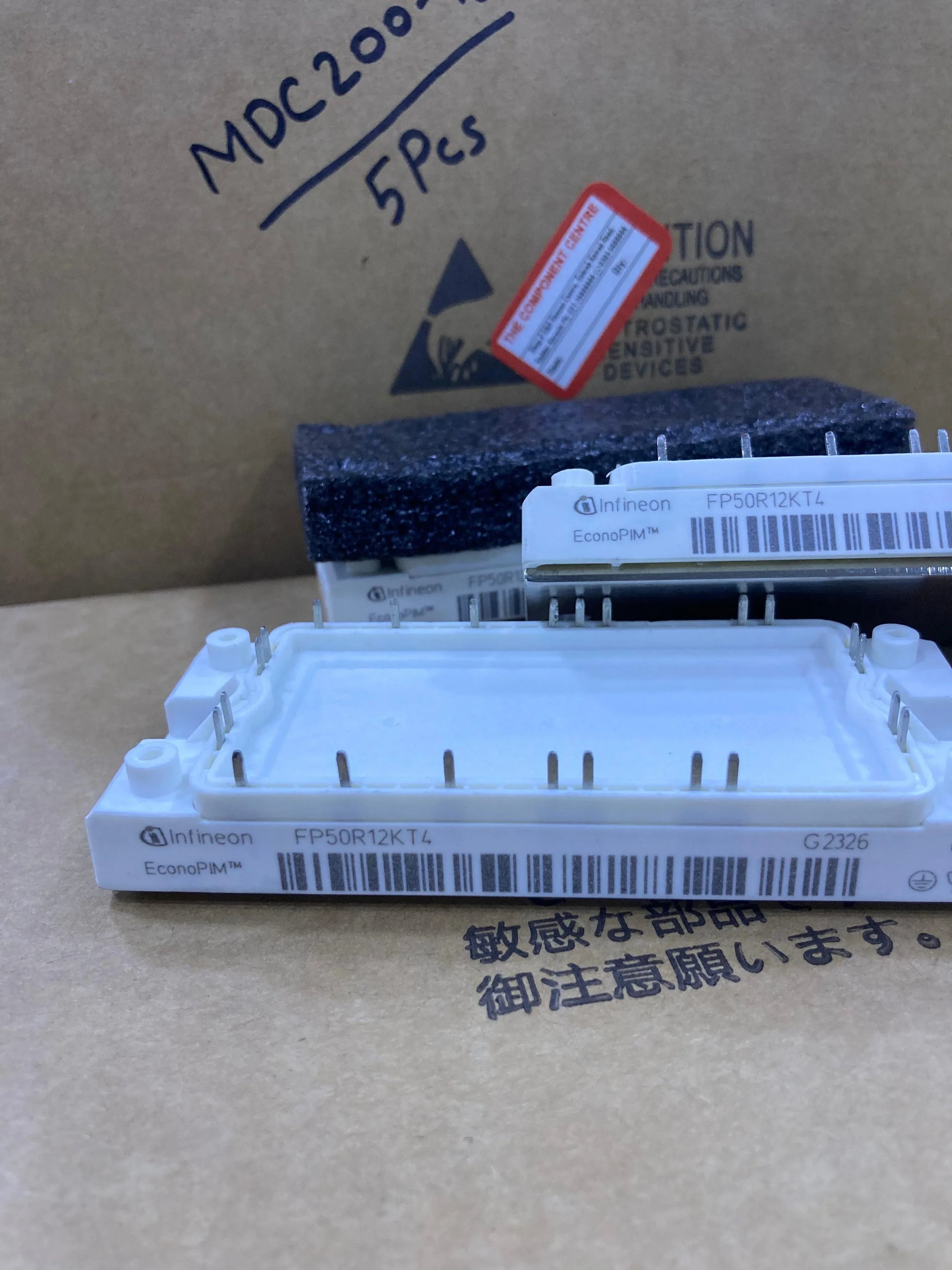

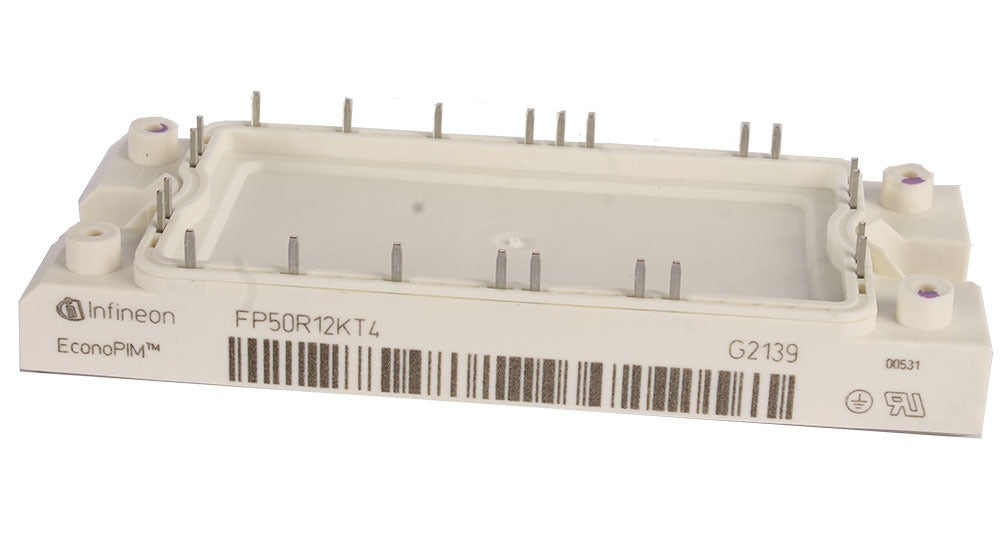

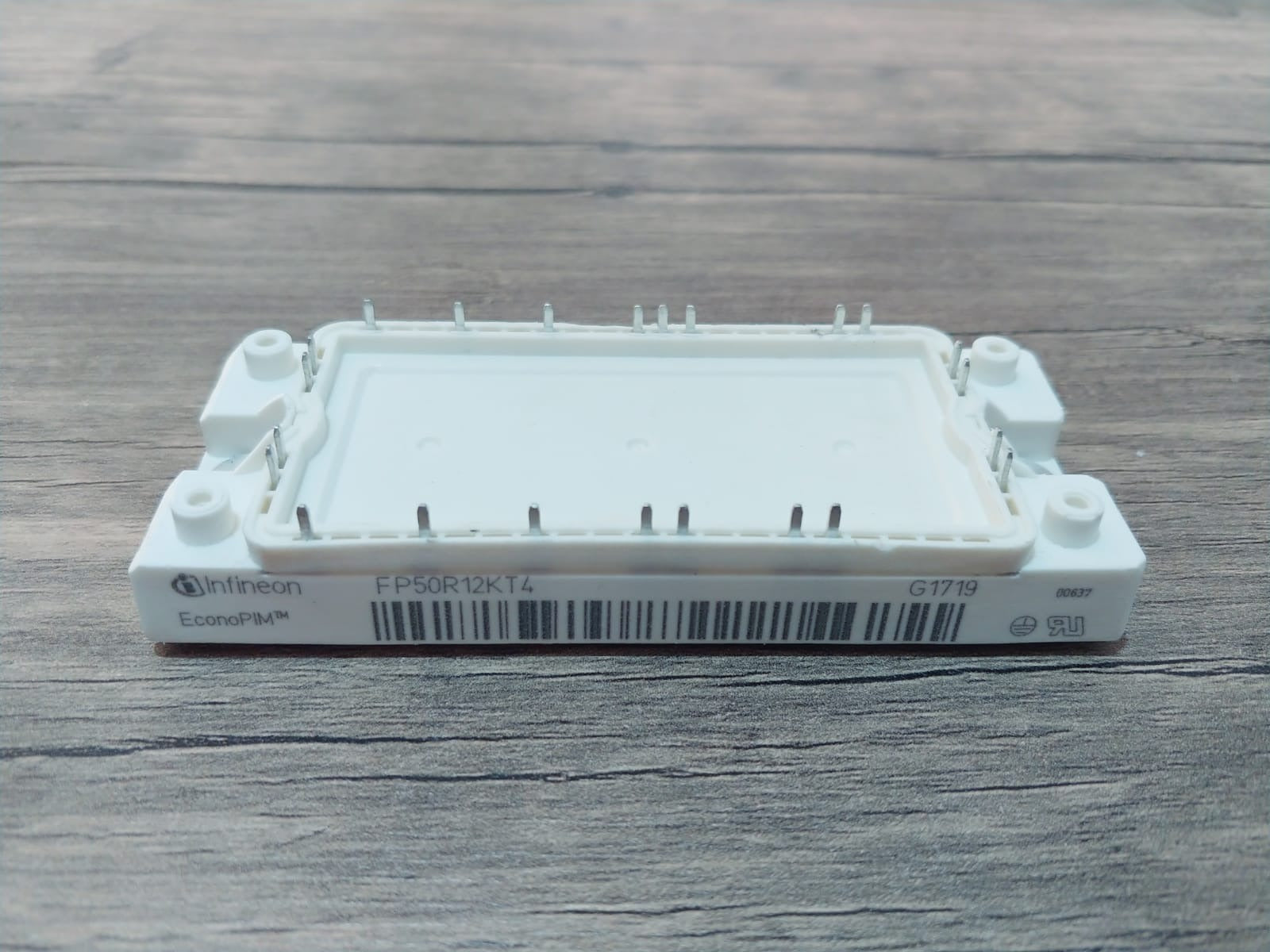

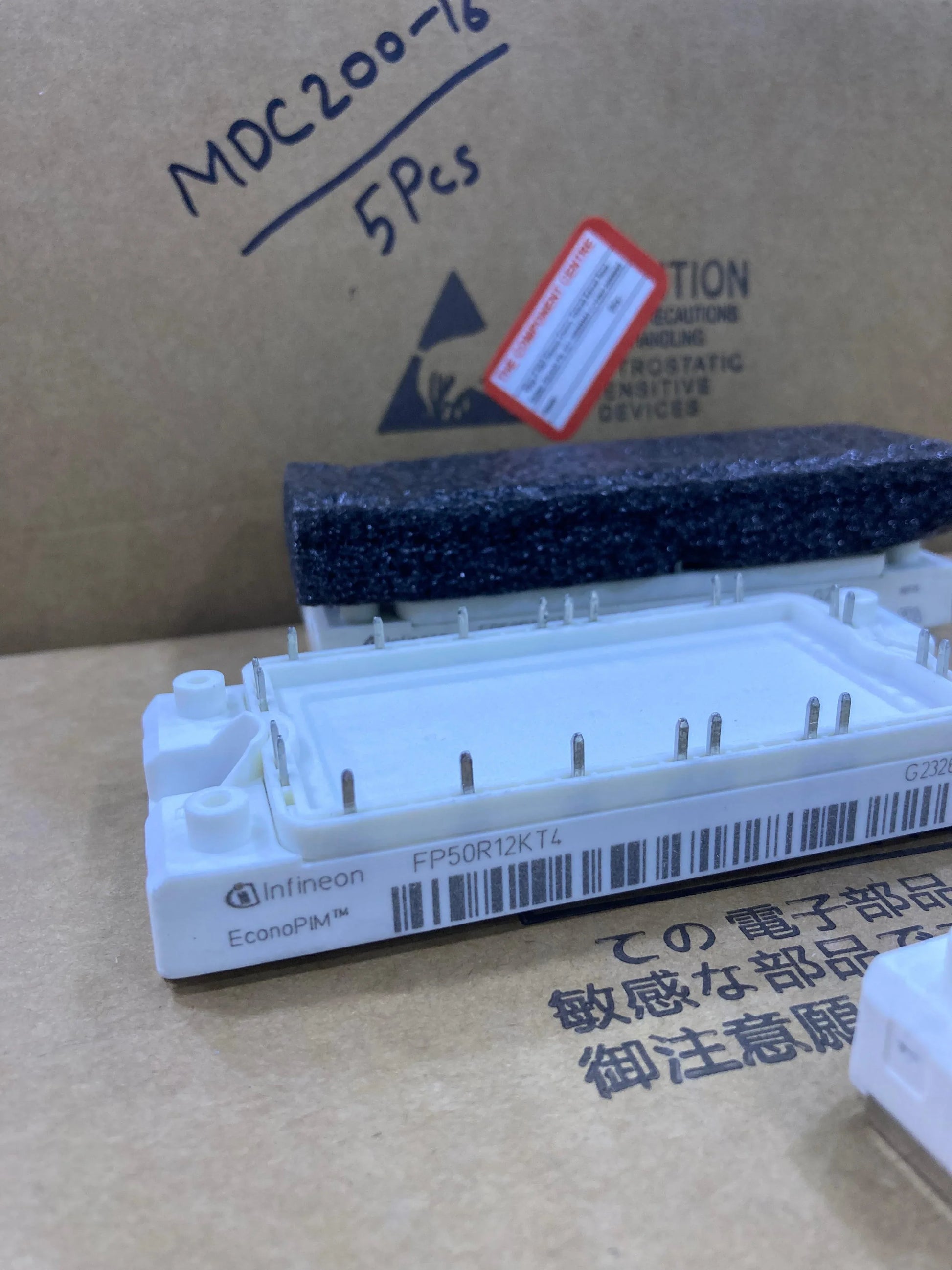

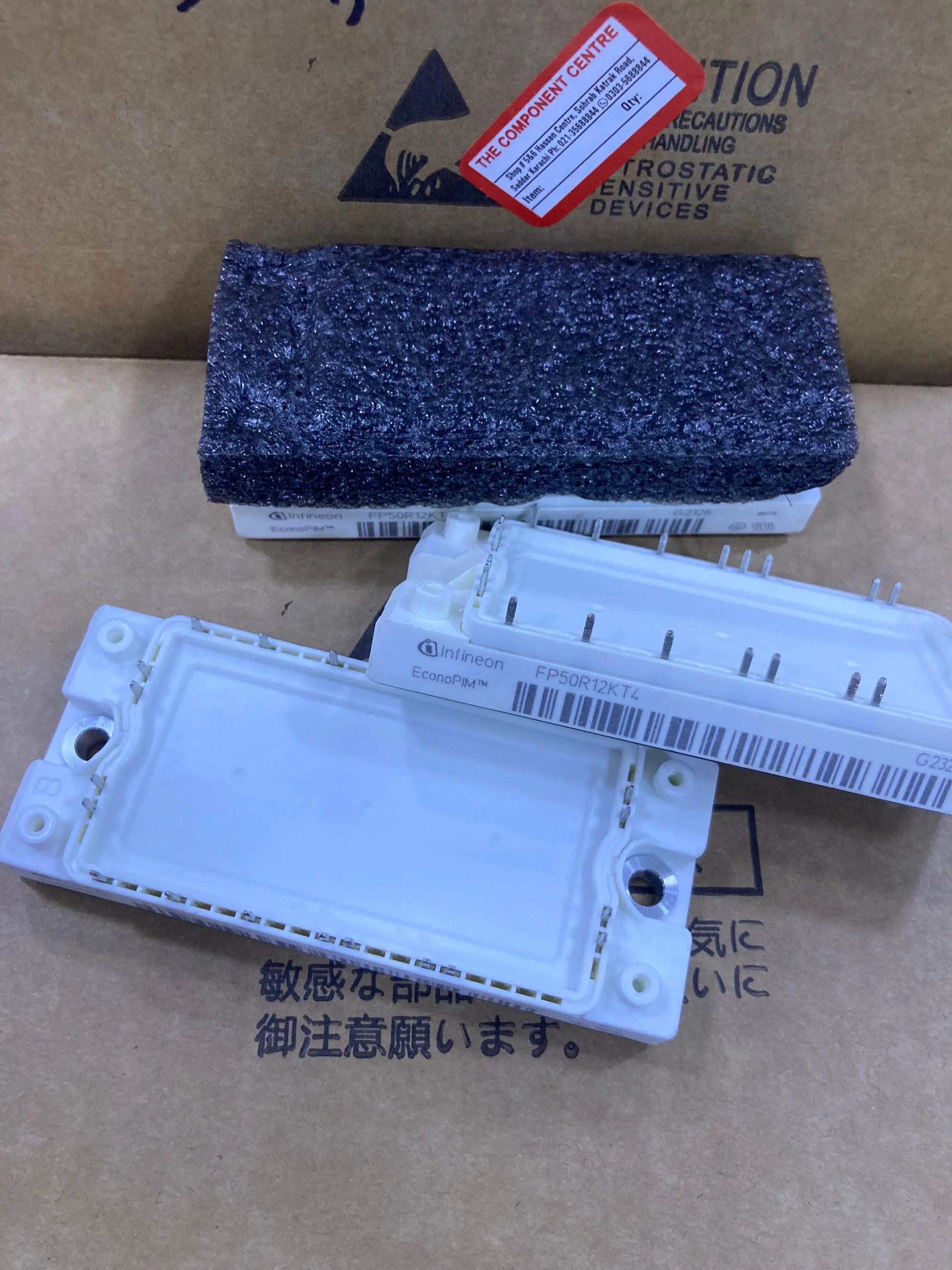

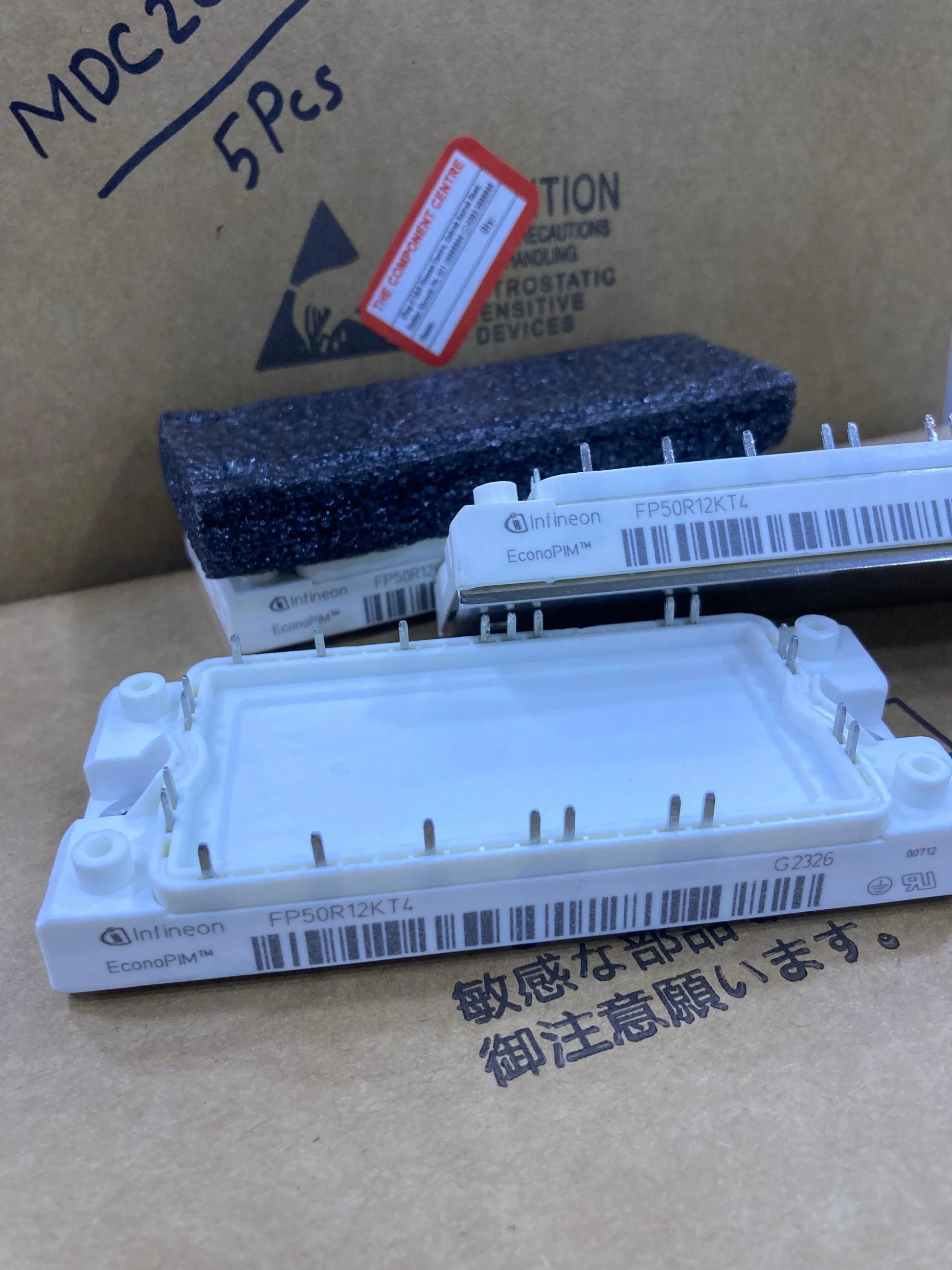

The Infineon FP50R12KT4 is a 1200 V IGBT module built on Trench/Fieldstop IGBT4 technology within the EconoPIM™2 package. It integrates inverter, rectifier and brake-chopper functions into a single module and provides a continuous collector current of 50 A at TC ≈ 95 °C. Its electrical and structural design makes it suitable for motor drives, UPS equipment and renewable-energy conversion systems.
The module is designed to maintain low conduction and switching losses, supporting a maximum junction temperature of 175 °C. It offers stable thermal behavior, a 280 W total power dissipation rating (TC = 25 °C), and uses solder-contact technology with an isolated copper base plate to improve electrical consistency and mechanical stability.
With its integrated topology and compact EconoPIM™2 footprint, the FP50R12KT4 supports efficient system layout and predictable switching performance. It is commonly used in industrial power-control systems, energy-conversion platforms and drive applications where controlled switching and long-term operational stability are required. For more detailed information, please refer to the Infineon datasheet linked below.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer / Series | Infineon Technologies — FP50R12KT4 (EconoPIM™2) |
| Collector-Emitter Voltage (VCES) | 1200 V |
| Continuous Collector Current (IC nom) | 50 A (TC ≈ 95 °C) |
| Total Power Dissipation (Ptot) | 280 W (TC = 25 °C) |
| Collector-Emitter Saturation Voltage (VCE(sat)) | ~1.85 V typ, ~2.25 V max (conditions per datasheet) |
| Maximum Junction Temperature (Tj max) | 175 °C |
| Operating Temperature Range | −40 °C to +150 °C |
| Gate-Emitter Peak Voltage (VGES) | ±20 V |
| Switching Times | Turn-on delay ≈ 0.16 µs, turn-off delay ≈ 0.33 µs |
| Package Type | EconoPIM™2 module with isolated copper base plate |
We dispatch all orders through Leopard Courier and TCS, while bulk or heavy shipments are sent via cargo (bilty) for safer handling and better rates. Standard delivery time is 2–3 working days for both courier and cargo deliveries, depending on your location. Orders are dispatched within 24 hours after payment confirmation, and the tracking number is shared on WhatsApp once shipped. Shipping charges depend on parcel weight and destination, and may be waived for bulk or corporate orders. Please ensure your contact details and address are accurate to avoid delays. For urgent delivery or specific shipping requirements, contact us directly on WhatsApp at 0303 56888 44.
