Semikron Danfoss SKiiP39ANB16V1 1200V 124A IGBT Rectifier & Module

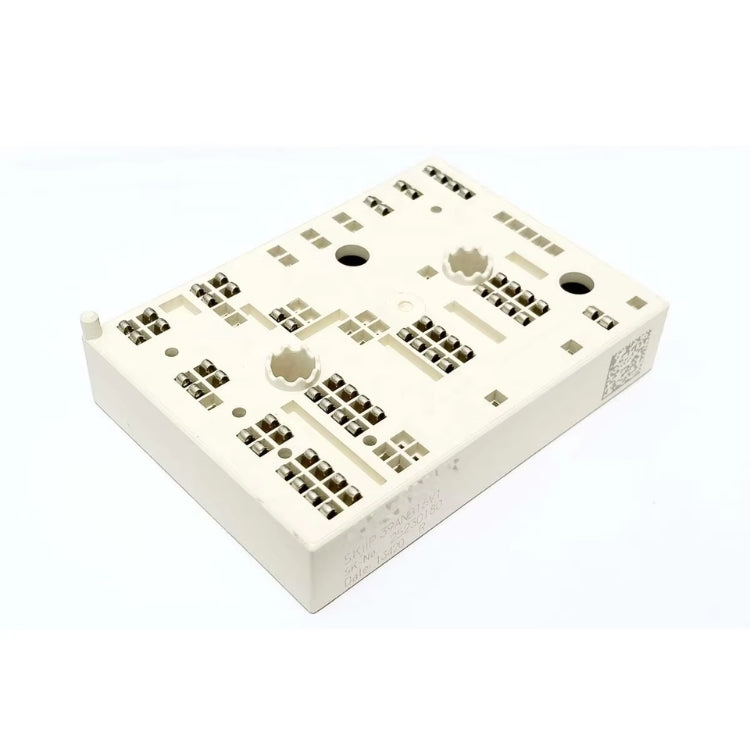

SKiiP39ANB16V1 1200V 124A IGBT Rectifier & Brake Chopper Module – MiniSKiiP 3 Package by Semikron-Danfoss

SKiiP39ANB16V1 is a high-performance IGBT power module rated at 1200V and 124A, developed by Semikron-Danfoss. This versatile module integrates a 3-phase bridge rectifier and brake chopper in a single MiniSKiiP 3 package, providing reliable power conversion for a range of industrial applications. Built on advanced IGBT technology with CAL freewheeling diodes, it ensures low conduction losses, soft switching characteristics, and stable operation in medium to high-power systems.

Designed for simplified assembly, the SKiiP39ANB16V1 features a spring-contact interface that eliminates the need for soldering, enhancing thermal conductivity and reducing mechanical stress. It operates across a wide temperature range from -40°C to 150°C and supports pulse currents up to 1600A, making it suitable for high-inertia loads and regenerative braking scenarios. The module’s compact footprint and robust insulation make it ideal for space-constrained environments in motor drives, inverters, UPS systems, and industrial automation.

Engineers rely on the SKiiP39ANB16V1 for its integration efficiency, long-term durability, and thermal reliability under dynamic load conditions. Its compliance with UL and RoHS standards ensures safe, environmentally friendly performance in demanding industrial environments.

Key Specs
Voltage Rating: 1200V
Current Rating: 124A Continuous
Technology: IGBT with Integrated Rectifier & Brake Chopper
Package: MiniSKiiP 3 with Spring Contacts
Surge Current: Up to 1600A
Switching: Soft Switching with CAL Diodes
Thermal Performance: Junction Temp -40°C to +150°C
Applications: Inverters, Motor Drives, Braking Systems, UPS, Power Conversion
Brand: Semikron-Danfoss
Compliance: UL Recognized, RoHS Compliant
