Semikron Danfoss SKiiP39GAH12E4V1 1200V 150A IGBT Module

SKiiP39GAH12E4V1 1200V 150A IGBT Power Module – MiniSKiiP II 3 Package by Semikron-Danfoss

SKiiP39GAH12E4V1 is a high-efficiency IGBT module rated at 1200V and 150A, manufactured by Semikron-Danfoss. Utilizing advanced Trench 4 IGBT technology and CAL freewheeling diodes, this module ensures low switching losses and high reliability in demanding industrial applications. It is ideally suited for use in motor drives, solar inverters, UPS systems, and industrial power conversion.

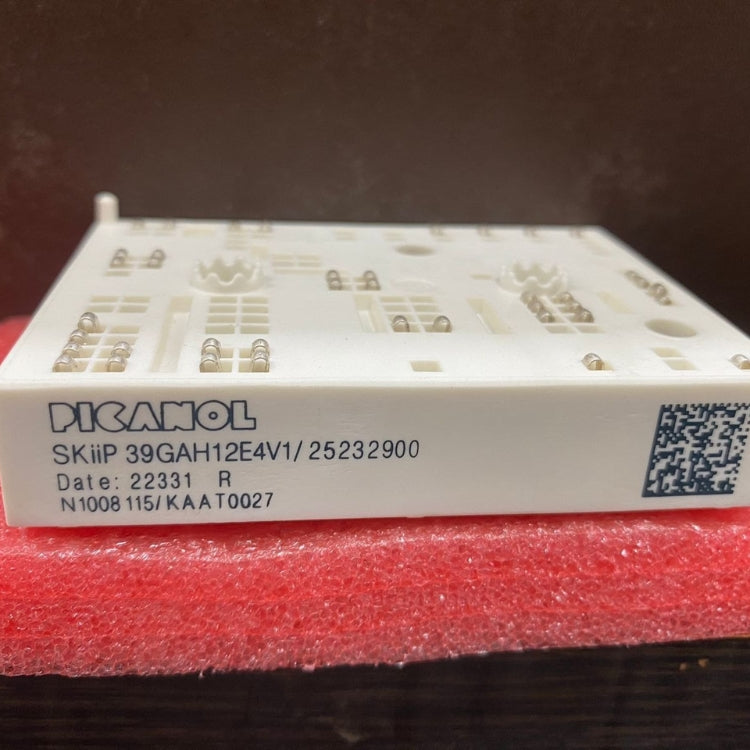

Built into a compact MiniSKiiP II 3 housing, the SKiiP39GAH12E4V1 features a spring-contact interface for solder-free mounting, improving thermal transfer and simplifying assembly. Its UL recognition, robust insulation, and efficient layout provide enhanced system safety and performance even under harsh electrical and thermal conditions.

Engineers and system designers prefer the SKiiP39GAH12E4V1 for its rugged design, fast switching performance, and proven reliability in medium to high power systems. Its use of Semikron’s optimized packaging and cooling approach ensures long-term durability in continuous industrial operation.

Key Specs Voltage Rating: 1200V Current Rating: 150A Continuous Technology: Trench 4 IGBT with CAL Diodes Package: MiniSKiiP II 3 Switching: Fast, Soft-Switching with Low Losses Thermal Performance: Case Temp up to 125°C Applications: Motor Drives, Solar Inverters, UPS, Power Conversion, Industrial Automation Brand: Semikron-Danfoss Compliance: UL Recognized, RoHS Compliant
