IXYS DSEI2X101-12A 1200V, 91A Dual Rectifier Diode
Regular price
Rs.0.00
DSEI2X101-12A

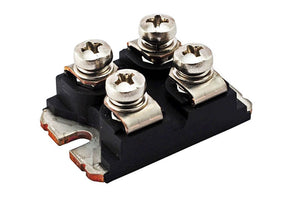

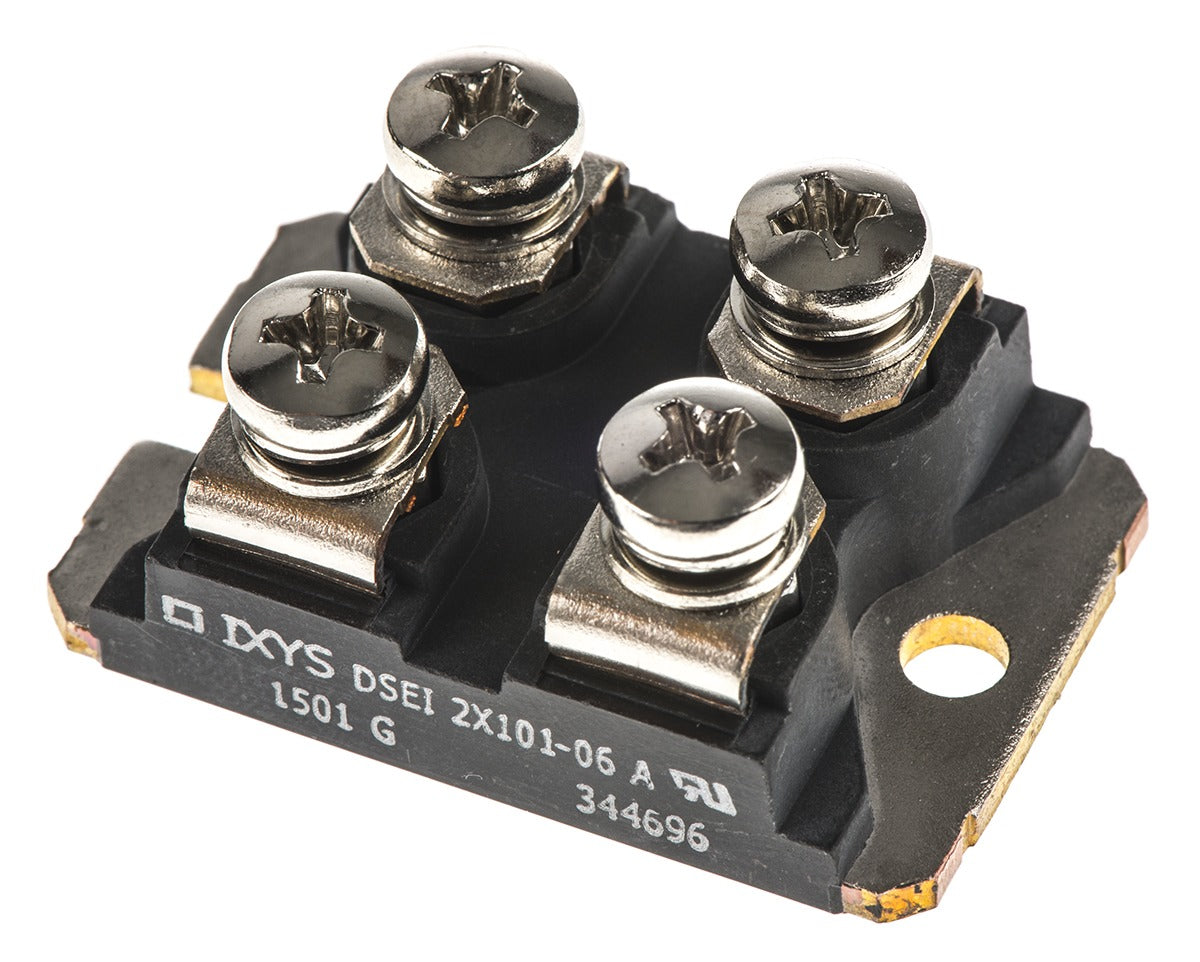

The DSEI2X101-12A by Littelfuse (IXYS) is a dual isolated fast recovery epitaxial diode (FRED) designed for power electronic applications. It comes in a SOT-227B (miniBLOC) package and features two independent diodes, each with a repetitive peak reverse voltage (V_RRM) of 1200V and an average forward current (I_FAV) of 91A. The forward voltage drop is 1.87V at 100A, reducing conduction losses and improving efficiency.
With a reverse recovery time (t_rr) of 40ns, the DSEI2X101-12A minimizes switching losses and electromagnetic interference (EMI). It is suitable for freewheeling diodes, snubber circuits, and rectifiers in switch-mode power supplies (SMPS) and uninterruptible power supplies (UPS). Its soft recovery behavior supports high-frequency switching devices, enabling reliable operation in industrial and commercial environments.
The diode uses planar passivated chips on a copper base plate with direct copper bonding (DCB) isolation for improved thermal performance and mechanical stability. The isolation voltage rating is 2500V~. The epoxy material meets UL 94V-0 flammability standards and the device complies with RoHS.
For more detailed information, please refer to the DSEI2X101-12A datasheet.
Key Specs
| Parameter | Value |
|---|---|
| Package Type | SOT-227B (miniBLOC) |
| Configuration | Dual Isolated |
| Maximum Repetitive Reverse Voltage (V_RRM) | 1200V |
| Average Forward Current (I_FAV) | 91A |
| Forward Voltage (V_F) at 100A | 1.87V |
| Reverse Recovery Time (t_rr) | 40ns |
| Maximum Reverse Recovery Current (I_RM) | 38A |
| Maximum Surge Current (I_FSM) | 900A |
| Thermal Resistance Junction-to-Case (R_thJC) | 0.5 K/W |
| Thermal Resistance Case-to-Heatsink (R_thCH) | 0.1 K/W |
| Maximum Junction Temperature (T_VJM) | 150°C |
| Isolation Voltage | 2500V~ |
| Package Material | Copper Base Plate, DCB Isolated |
| Compliance | RoHS, UL 94V-0 |
