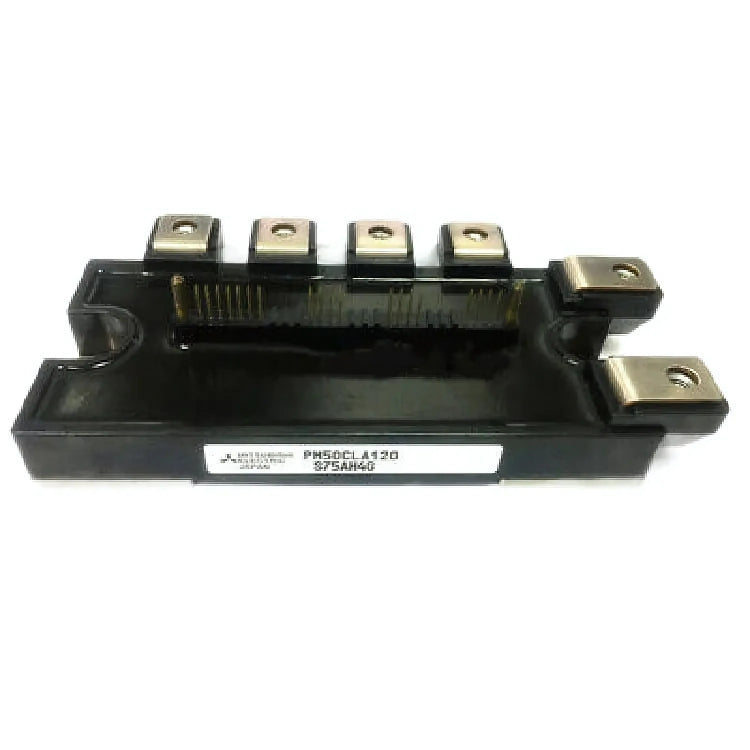

Mitsubishi PM50CLA120 50A 1200V Intelligent Power Module

PM50CLA120 1200V 50A Intelligent Power Module – Flat-Base Insulated Package by Mitsubishi

The PM50CLA120 is an Intelligent Power Module (IPM) rated at 1200V and 50A, developed by Mitsubishi Electric. It integrates 5th-generation IGBT technology and built-in gate drive circuitry for compact and efficient power switching. Key features include low V_CE(sat), fast switching performance, and comprehensive protection logic such as under-voltage lockout, short-circuit protection, and over-temperature shutdown.

Housed in a flat-base insulated package, the module supports high thermal efficiency and reliable operation in environments up to 150°C. It is suitable for use in variable frequency drives, servo controls, HVAC inverters, and renewable energy systems.

Key Specs

Voltage Rating: 1200V
Current Rating: 50A Continuous
Technology: 5th-Generation IGBT with Integrated Gate Driver
Package: Flat-Base Insulated Intelligent Power Module
On-State Voltage (V_CE(sat)): 1.9V typ.
Protection Features: Under-Voltage Lockout, Short-Circuit, Over-Temperature
Thermal Performance: Up to 150°C
Applications: Servo Drives, Motor Control, Inverters, HVAC, Renewable Energy Systems
Brand: Mitsubishi Electric
Compliance: RoHS & Pb-Free
