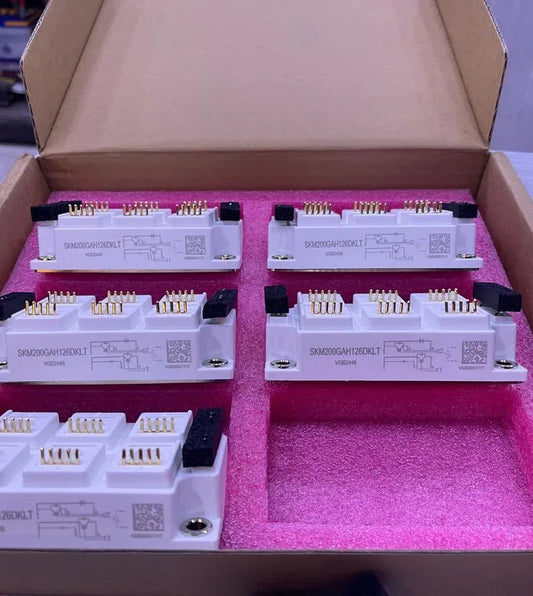

Semikron SKM200GAH126DKLT 1200V 200A IGBT Module
Regular price
Rs.25,500.00
Sale price
Rs.26,000.00

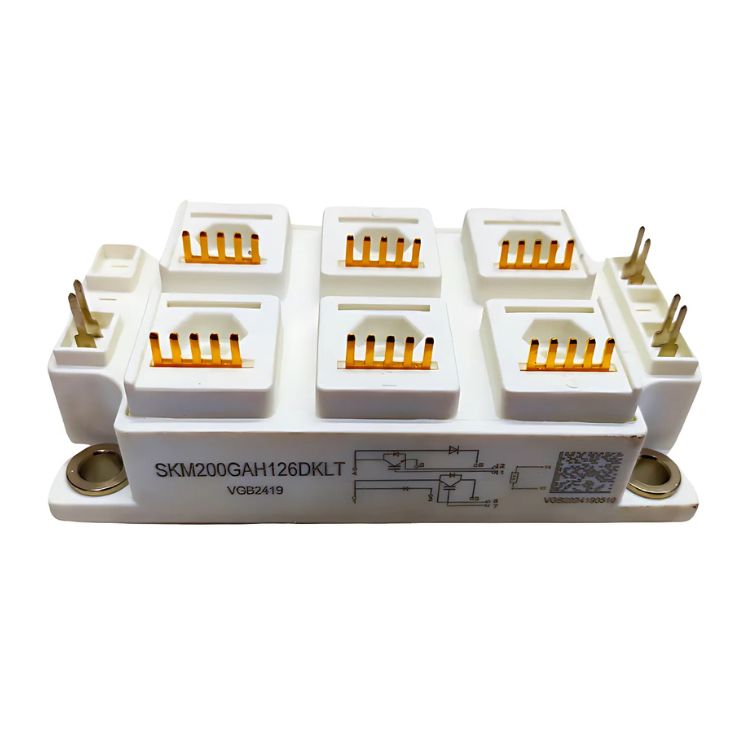

SKM200GAH126DKLT – 1200 V / 200 A IGBT Power Module
The SKM200GAH126DKLT from Semikron is a high-current IGBT module rated at 1200 V and 200 A, designed for industrial power electronics applications. It combines IGBT technology with integrated fast-recovery free-wheeling diodes to provide efficient switching and reduced conduction and switching losses. The isolated baseplate package ensures proper electrical insulation and supports thermal management for stable operation in high-power systems.
This module is built for reliable performance in elevated temperature conditions. The insulated baseplate supports effective heat dissipation, allowing the module to operate consistently under high load. It is suitable for motor drives, inverters, UPS systems, and renewable energy converters, where high current handling and voltage blocking are required.
The SKM200GAH126DKLT offers low on-state voltage to minimize conduction losses, while fast free-wheeling diodes reduce switching transients. Its construction meets global compliance standards, including RoHS. The module is suitable for AC/DC motor control, industrial automation, and power conversion circuits.
Key Specifications
| Parameter | Value |
|---|---|
| Part Number | SKM200GAH126DKLT |
| Voltage Rating (V_CES) | 1200 V |
| Continuous Collector Current (I_Cnom) | 200 A |
| Switching Technology | IGBT with fast free‑wheeling diodes |
| Package Type | Isolated baseplate power module |
| On‑State Saturation Voltage (V_CE(sat)) | Low, typical for 1200 V class (~2.1 V at rated current) |
| Thermal Resistance (Junction‑to‑Sink) | ~0.32 K/W |
| Operating Temperature Range | –40 °C to +150 °C (junction) |
| Short‑Circuit Withstand Time | ≥ 10 µs |
| Package Weight | ~325 g |
| Compliance | RoHS-compliant, lead-free |
For more detailed information, please refer to the Semikron datasheet: SKM200GAH126DKLT Datasheet (PDF)
We dispatch all orders through Leopard Courier and TCS, while bulk or heavy shipments are sent via cargo (bilty) for safer handling and better rates. Standard delivery time is 2–3 working days for both courier and cargo deliveries, depending on your location. Orders are dispatched within 24 hours after payment confirmation, and the tracking number is shared on WhatsApp once shipped. Shipping charges depend on parcel weight and destination, and may be waived for bulk or corporate orders. Please ensure your contact details and address are accurate to avoid delays. For urgent delivery or specific shipping requirements, contact us directly on WhatsApp at 0303 56888 44.
