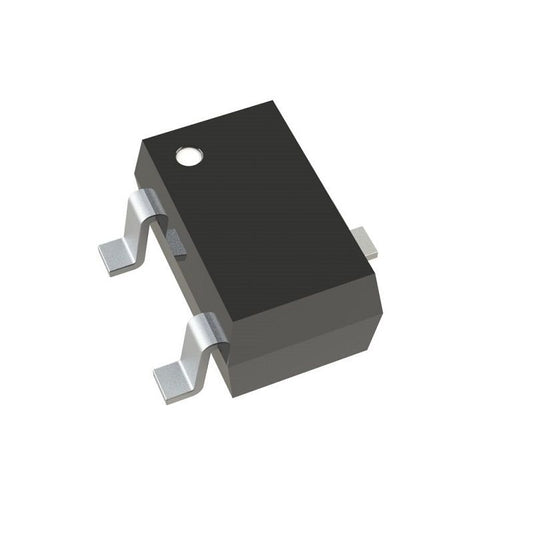

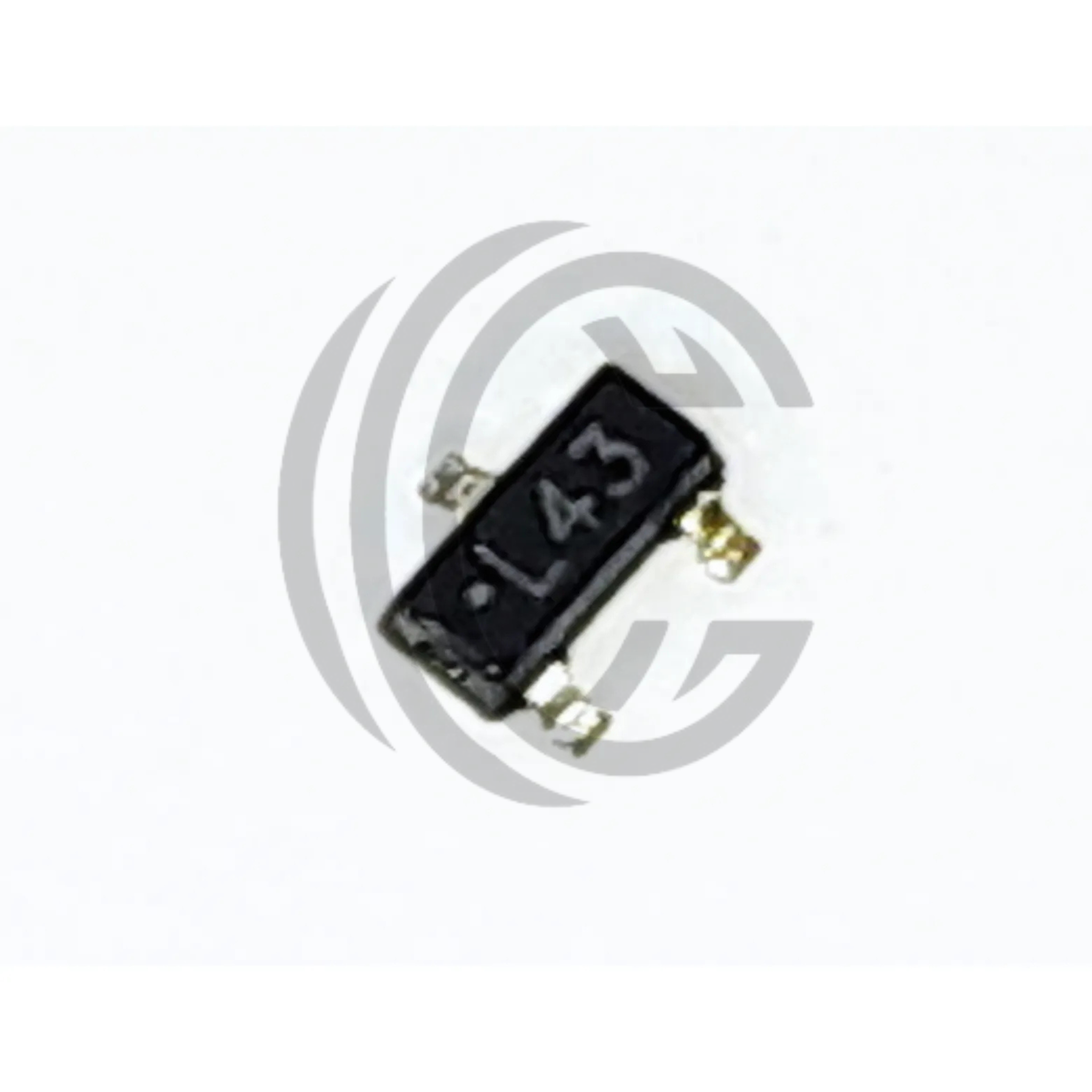

BAT54C 30 V, 200 mA SOT‑23 Dual Schottky Diode
Regular price
Rs.25.00
Sale price
Rs.30.00
BAT54C – SOT‑23 Schottky Diode
The BAT54C is a dual Schottky diode in a SOT‑23 surface‑mount package, designed for low-power rectification, voltage clamping, polarity protection, and signal routing. It has a maximum reverse voltage of 30 V and a forward current rating of 200 mA. With a low forward voltage drop and fast switching speed, it is suitable for DC-DC converters, communication modules, and portable devices where space and thermal management are important.
The diode features a dual common-cathode configuration and an integrated PN junction guard ring for enhanced ESD and transient protection. It supports rapid switching with a reverse recovery time of approximately 5 ns. The operating junction temperature range is –55 °C to +150 °C, and the device is fully RoHS‑compliant.
BAT54C provides reliable performance for signal routing, rectification, clamping, and polarity protection in industrial, commercial, and consumer electronics. Its compact design and robust characteristics make it suitable for applications requiring efficient and consistent operation.

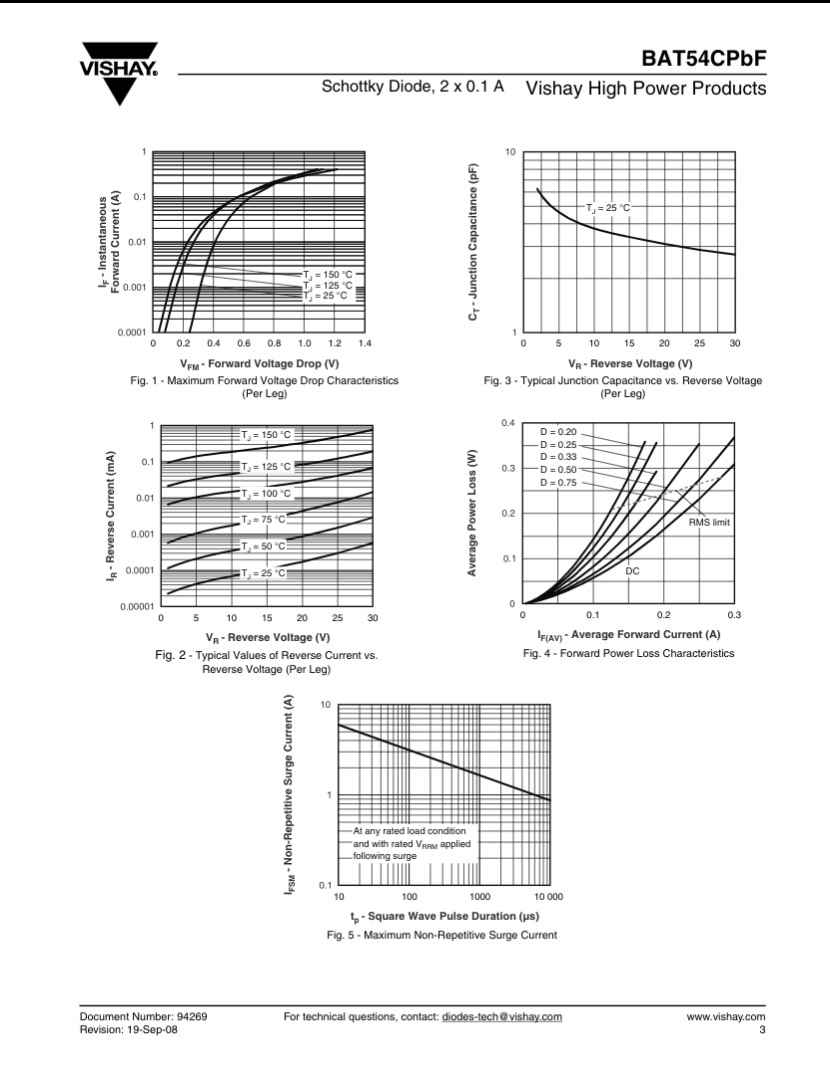

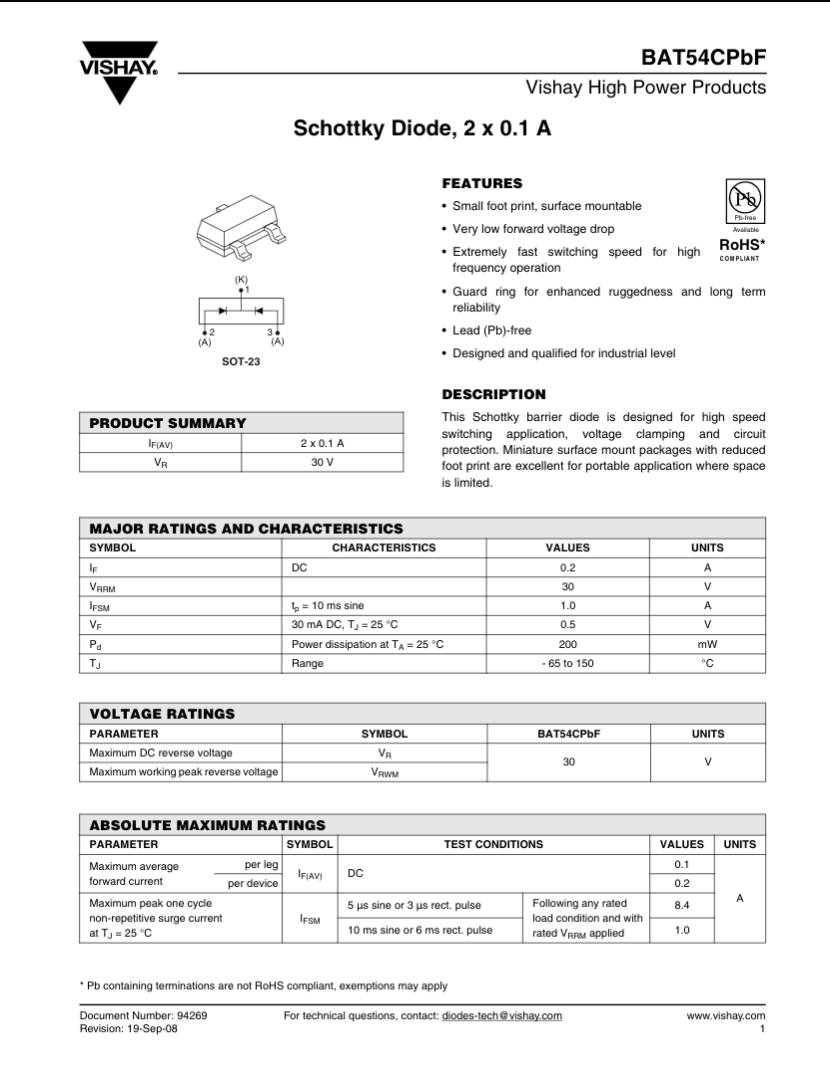

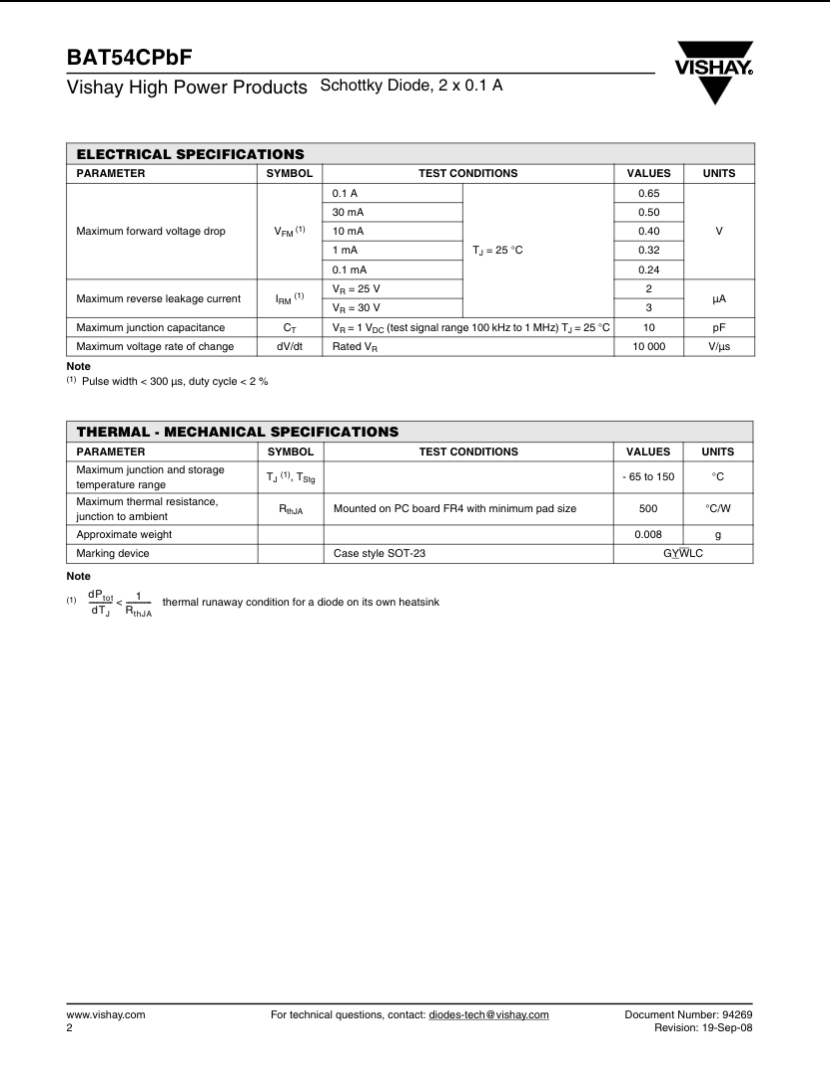

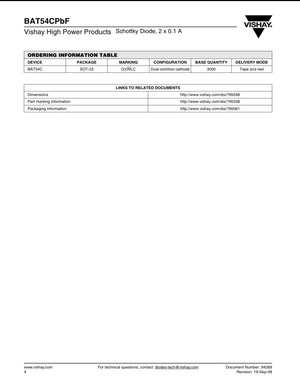

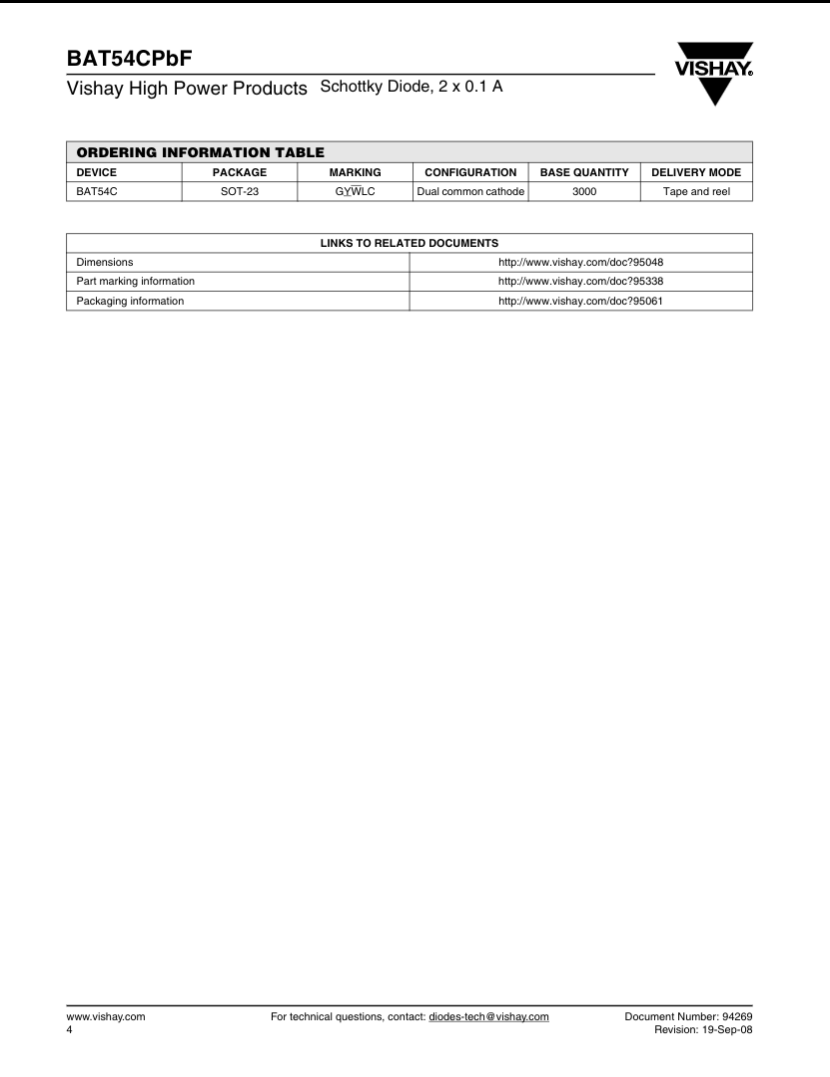

Key Specs
| Specification | Value |
|---|---|
| Repetitive Peak Reverse Voltage (VRRM) | 30 V |
| Forward Continuous Current (IF) | 200 mA |
| Forward Voltage Drop (VF) @ 100 mA | ≤ 0.8 V |
| Reverse Recovery Time (trr) | ~ 5 ns |
| Non‑repetitive Peak Forward Surge Current (IFSM) | 600 mA (1 sec pulse) |
| Package / Case | SOT‑23 (SOT‑23‑3) Surface‑Mount |
| Diode Configuration | Dual Common Cathode Schottky Diode |
| Operating Junction Temperature Range | –55 °C to +150 °C |
| Reverse Leakage Current | ~ 2 µA @ 25 V |
| Compliance / Environment | RoHS‑compliant, lead‑free |
