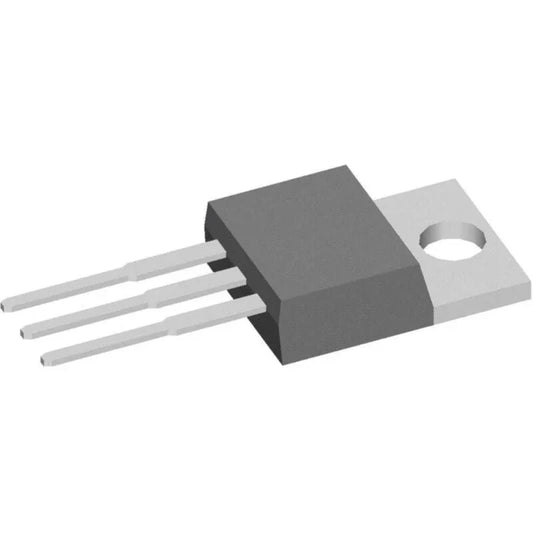

IXYS IXFP7N100P 1000V 7A N Channel MOSFET
Regular price
Rs.350.00
Sale price
Rs.400.00
IXFP7N100P
The IXFP7N100P is a high-voltage N-channel MOSFET designed for power switching and conversion applications. Rated for 1000 V drain-source voltage and 7 A continuous drain current, it features low on-resistance and fast switching performance, supporting efficient operation in high-frequency circuits. Its silicon-based design provides stable performance under heavy load and temperature variations.
This device is suitable for applications including switch-mode power supplies, DC–DC converters, solar inverters, EV powertrains, UPS systems, and industrial motor drives. Its low gate charge and input capacitance allow rapid switching, ensuring consistent operation in high-frequency circuits.
The TO-220AB (TO-220-3) package allows for straightforward thermal management and mounting. The MOSFET operates reliably across a wide temperature range (-55 °C to +150 °C) and can dissipate up to 300 W at case temperature, making it suitable for industrial environments and compact circuit layouts.
Key Specifications
| Parameter | Specification |
|---|---|
| Device Type | N-Channel MOSFET (Enhancement mode) |
| Drain-Source Voltage (V_DSS) | 1000 V |
| Continuous Drain Current (I_D @ 25 °C) | 7 A |
| Maximum On-State Resistance (R_DS(on)) | ≤ 1.9 Ω @ 3.5 A, V_GS = 10 V |
| Gate-Source Threshold Voltage (V_GS(th)) | max. 6 V @ I_D = 1 mA |
| Maximum Gate-Source Voltage (V_GS) | ± 30 V |
| Gate Charge (Q_G) | 47 nC @ V_GS = 10 V |
| Input Capacitance (C_iss) | 2590 pF @ V_DS = 25 V |
| Power Dissipation (P_D) | 300 W (Tc) |
| Operating Temperature Range | –55 °C … +150 °C |
| Package / Case | TO‑220AB (TO‑220-3) through-hole |
| Typical Applications | Switch-mode power supplies, DC–DC converters, UPS, motor drives, inverters, high-voltage switching systems, industrial power electronics |
For detailed technical information, please refer to the official datasheet: IXFP7N100P Datasheet (PDF).
