IRF840 500V 8A N Channel MOSFET
Regular price
Rs.90.00
Sale price
Rs.95.00

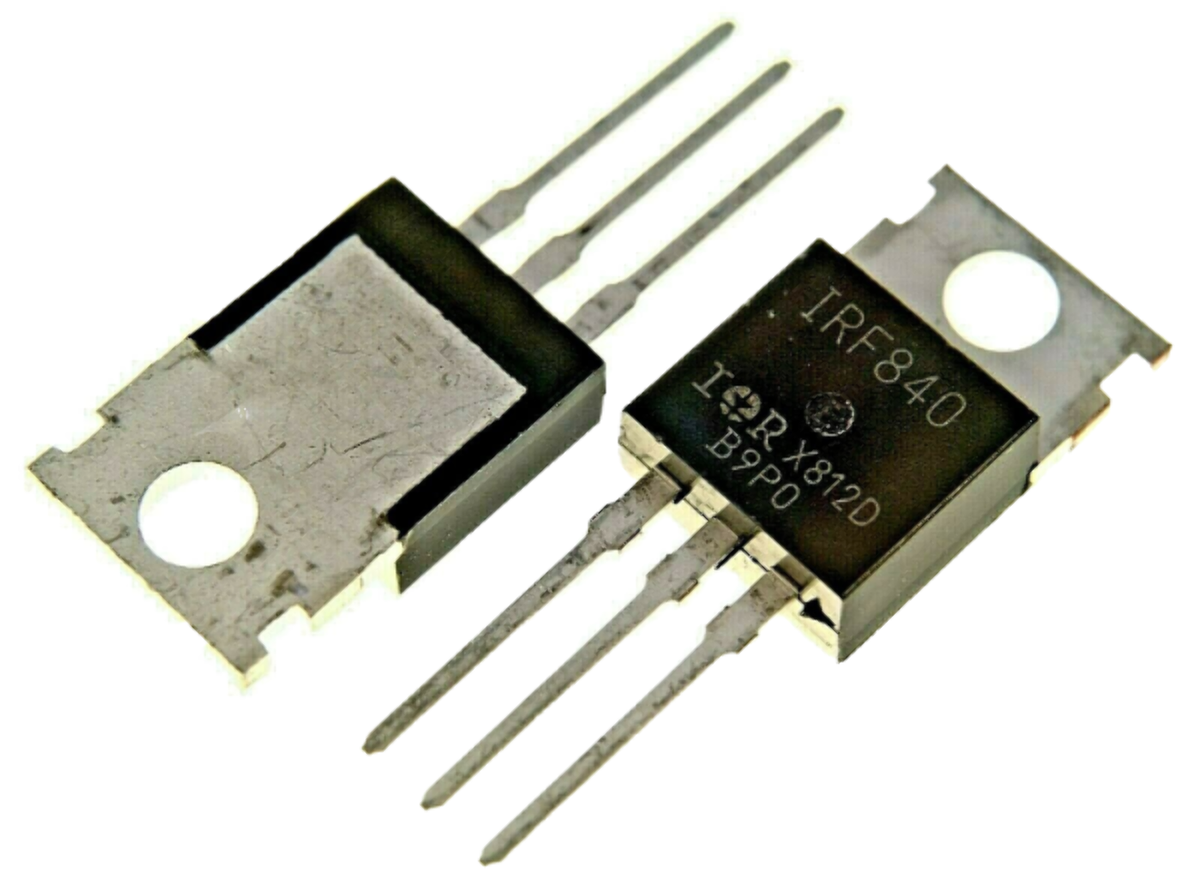

IRF840
The IRF840 is a high-voltage N-Channel MOSFET designed for reliable switching in power electronics applications. With a drain-source voltage rating of 500 V and a continuous drain current of 8 A, it is suitable for switch-mode power supplies (SMPS), DC-AC converters, industrial motor drivers, and audio amplifiers. Manufactured by Vishay and STMicroelectronics, it provides consistent performance for industrial and commercial systems.
Featuring a low on-resistance of 0.85 Ω and a fast rise time of 23 ns, the IRF840 reduces power loss and supports high-frequency operation. Its TO-220 package allows effective thermal dissipation and easy integration with heatsinks, supporting stability under demanding operating conditions. The device is avalanche-rated and has a low gate charge of 63 nC, making it suitable for inverter circuits, automation systems, and solid-state relays.
The IRF840 operates across a wide temperature range (−55 °C to +150 °C) and offers reliable switching characteristics for renewable energy systems, UPS applications, and motor control circuits. Its design ensures stable operation in industrial, telecom, and consumer electronics environments.
Key Specifications
| Parameter | Value |
|---|---|
| Drain-Source Voltage (V_DS) | 500 V |
| Continuous Drain Current (I_D) | 8 A |
| Pulsed Drain Current (I_DM) | 32 A |
| On-Resistance (R_DS(on)) | ≤ 0.85 Ω @ V_GS = 10 V |
| Gate Threshold Voltage (V_GS(th)) | 2.0 V – 4.0 V |
| Maximum Gate Charge (Q_G) | 63 nC |
| Input Capacitance (C_iss) | 1,300 pF |
| Switching Times | t_on_delay ≈ 14 ns, t_rise ≈ 23 ns, t_off_delay ≈ 49 ns, t_fall ≈ 20 ns |
| Single-Pulse Avalanche Energy (E_AS) | 510 mJ |
| Peak Diode Recovery dV/dt | 3.5 V/ns |
| Power Dissipation (P_D) | 125 W |
| Operating Temperature Range (T_J) | −55 °C to +150 °C |

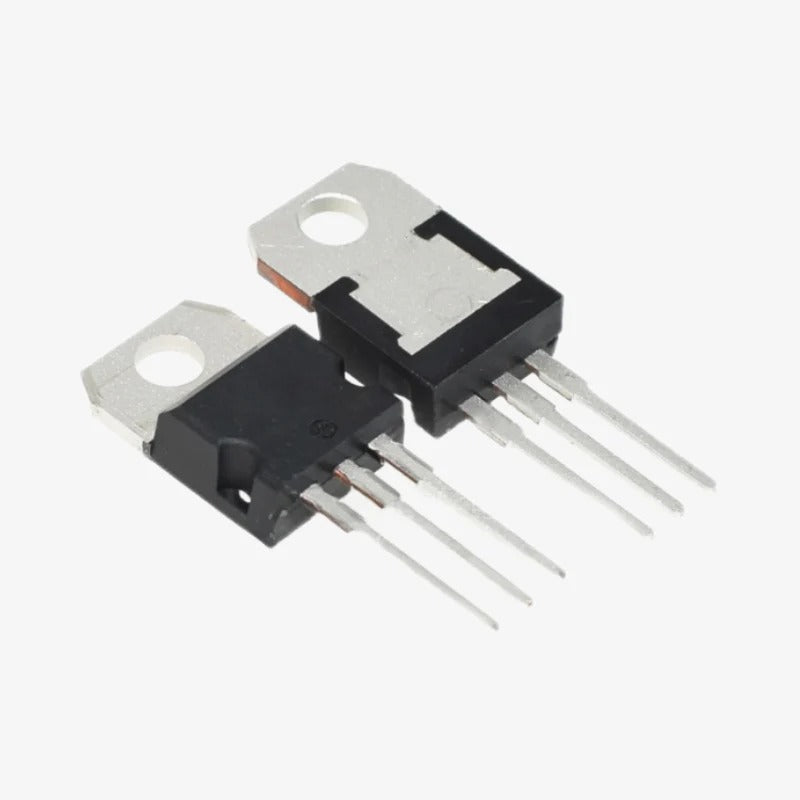

| Package | TO-220AB |
