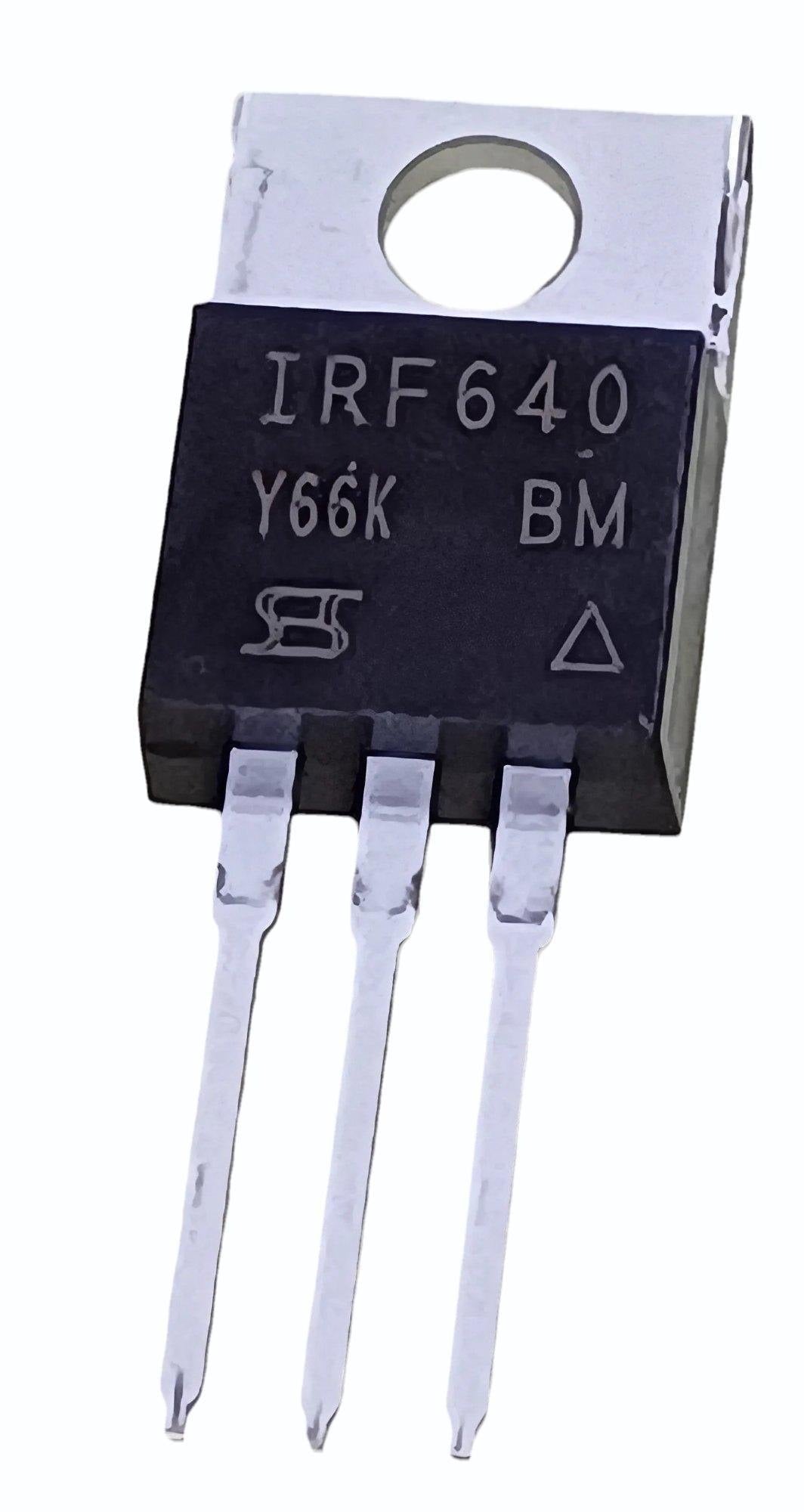

IRF640 200V 18A N Channel MOSFET
Regular price
Rs.90.00
Sale price
Rs.95.00
IRF640
The IRF640 is a 200 V, 18 A N-channel power MOSFET from STMicroelectronics, designed for high-speed switching in power electronics. With low on-resistance and efficient conduction, it provides reliable performance in circuits where heat management and current handling are critical.
This MOSFET is suitable for UPS systems, DC-DC converters, inverters, and motor control circuits. Its avalanche-rugged construction allows tolerance to high pulse energies, making it appropriate for industrial automation, telecommunications, and renewable energy systems.
Encased in a TO-220 package, the IRF640 supports easy mounting and effective thermal management. Its low gate threshold voltage and fast switching capabilities reduce power loss in high-frequency designs. Its durability, voltage tolerance, and efficient operation make it suitable for energy-conscious applications in automotive, lighting, and industrial control systems.
Key Specs
| Parameter | Value |
|---|---|
| Drain-Source Voltage (V₍DSS₎) | 200 V (ST Datasheet) |
| Continuous Drain Current (I₍D₎) | 18 A |
| Pulsed Drain Current (I₍DM₎) | 72 A |
| On-Resistance, R₍DS(on)₎ (V₍GS₎ = 10 V) | Typ 0.150 Ω, Max 0.180 Ω |
| Gate-Source Threshold Voltage (V₍GS(th)₎) | 2–4 V |
| Gate-Source Voltage (V₍GS₎ max) | ±20 V |
| Total Gate Charge (Q₍G₎) | ~72 nC |
| Input Capacitance (C₍iss₎) | ~1560 pF |
| Single-Pulse Avalanche Energy (E₍AS₎) | ~150 mJ |
| Power Dissipation (P₍tot₎) | 125 W |
| Thermal Resistance, Junction-to-Case (R₍θJC₎) | ~1.0 °C/W |
| Operating Junction Temperature | –55 °C to +150 °C |
| Storage Temperature | –65 °C to +150 °C |
| Package | TO-220 (through-hole) |
