Infineon IRFP4568 150V 171A MOSFET
Regular price
Rs.450.00
Sale price
Rs.500.00
IRFP4568

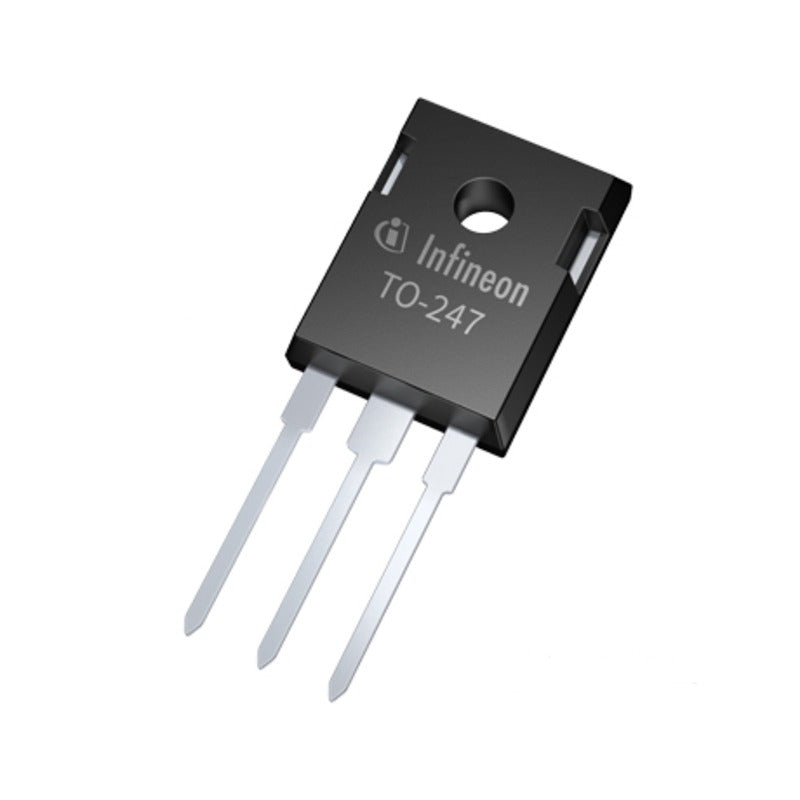

The IRFP4568 is a 150 V, 171 A N-channel MOSFET developed by Infineon Technologies for use in high-power switching and conversion systems. Its TO-247 package supports effective heat dissipation, enabling stable performance in UPS equipment, DC–DC converters, motor drives, solar inverters, and other industrial power circuits.
With an on-resistance of 5.9 mΩ at VGS = 10 V and fast switching behavior, the IRFP4568 helps reduce electrical losses in high-frequency applications. The device is 100% avalanche tested and supports high pulse-current capability, allowing it to operate in circuits that experience inductive loads or transient voltages.
Its electrical characteristics, thermal ratings, and mechanical specifications make the IRFP4568 suitable for industrial and commercial systems that require high current handling, low conduction losses, and consistent operation.
Key Specs
| Parameter | Value |
|---|---|
| Brand | Infineon Technologies |
| Part Number | IRFP4568 |
| Device Type | N-Channel MOSFET |
| Drain–Source Voltage (VDS) | 150 V |
| Continuous Drain Current (ID) | 171 A |
| Pulsed Drain Current (IDM) | 684 A |
| On-Resistance (RDS(on)) | 5.9 mΩ @ VGS = 10 V |
| Package | TO-247 |
| Switching | Fast, Low Gate Charge |
| Applications | UPS, DC–DC Converters, Solar Inverters, Battery Systems |
| Compliance | RoHS & Pb-Free |
