Infineon FS75R12KT3G 1200V 100A IGBT Module

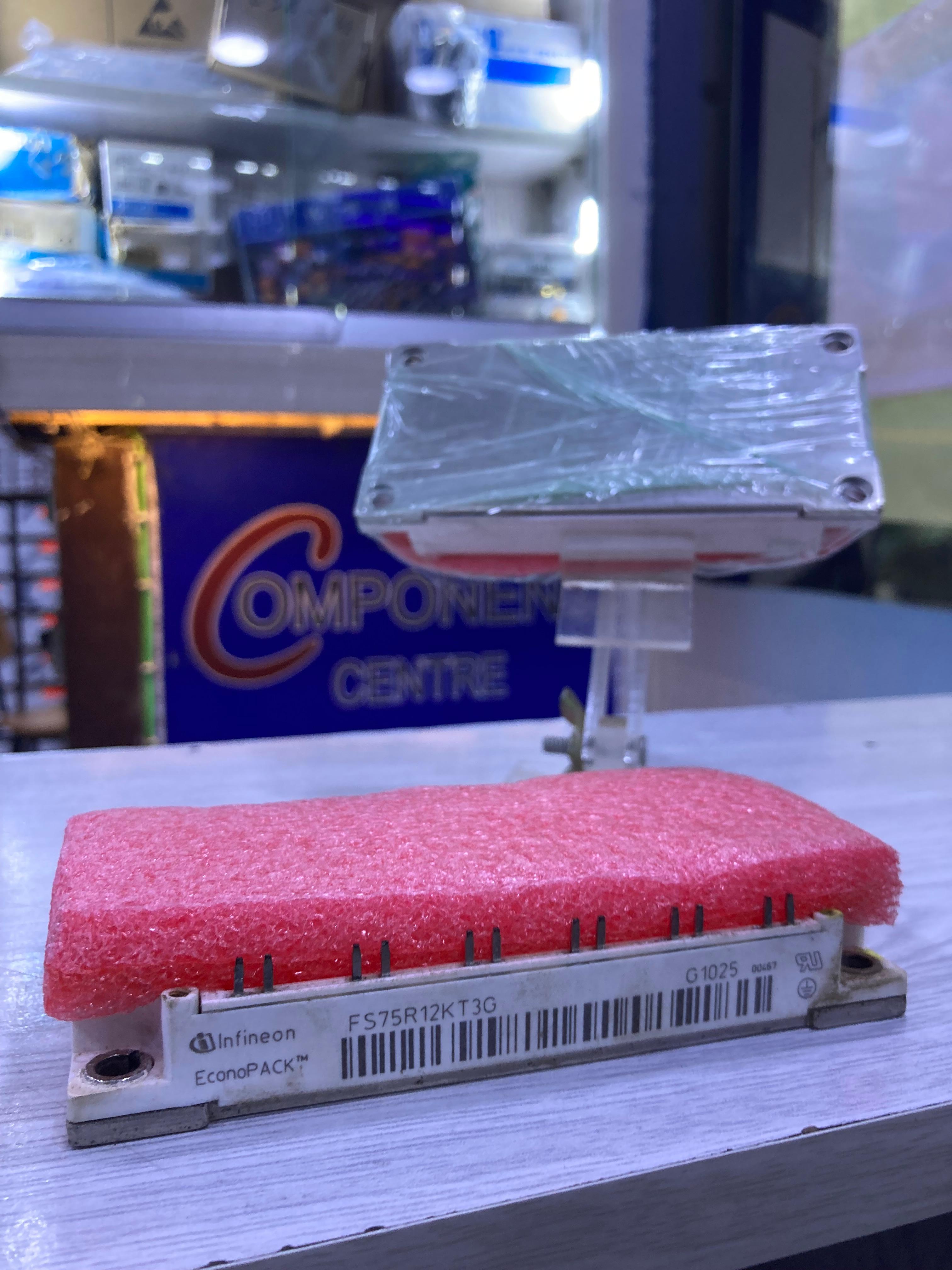

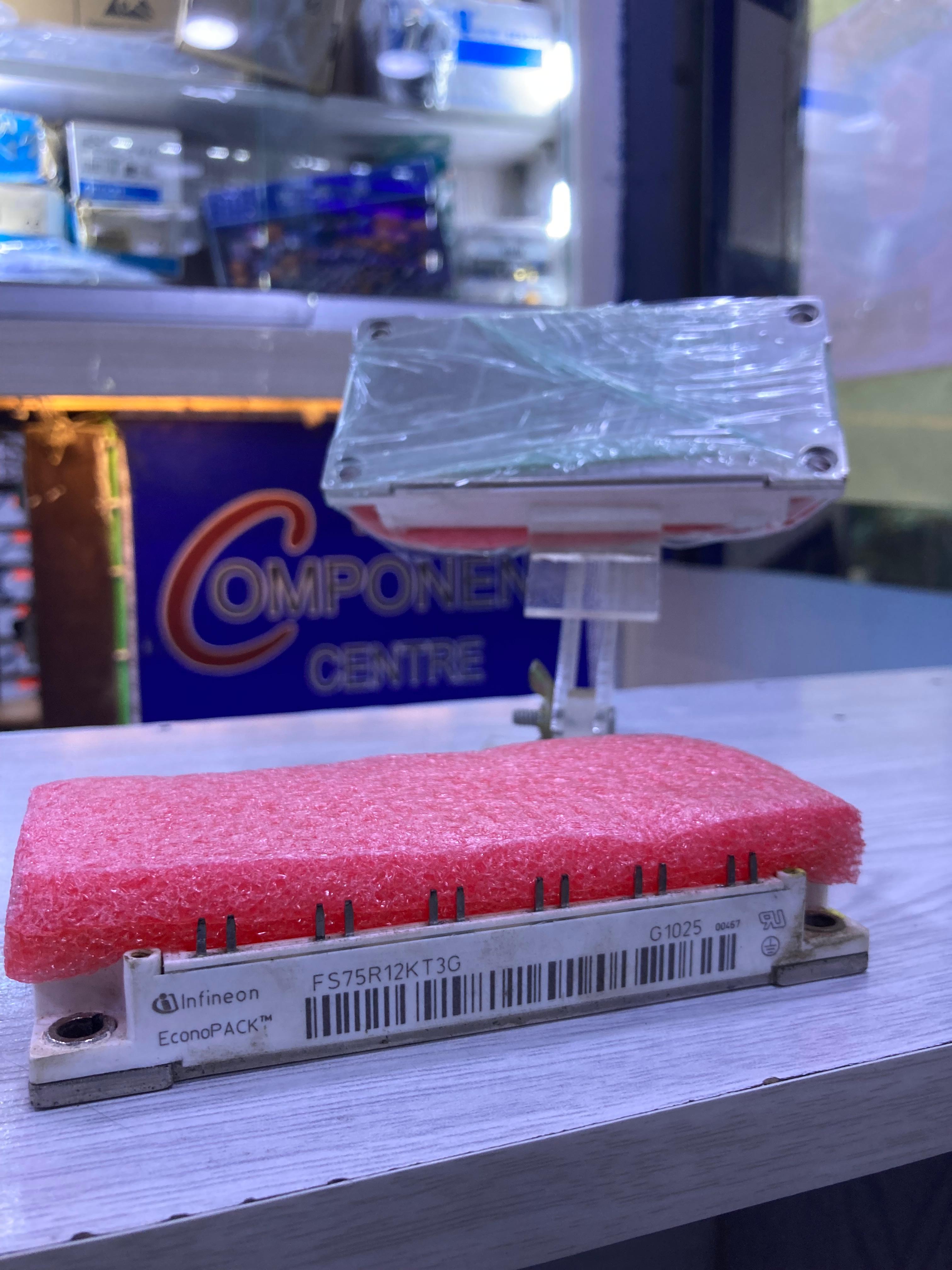

FS75R12KT3G IGBT Module – 1200V 100A EconoPACK 3 by Infineon
FS75R12KT3G is a high-performance 1200V IGBT module from Infineon Technologies, designed for industrial-grade power control systems including motor drives, inverters, UPS systems, and renewable energy applications. Featuring a 6-pack configuration, this module delivers a continuous collector current of 100A and supports efficient, high-speed switching for demanding environments.
With a collector-emitter voltage rating of 1.2kV and a low collector-emitter saturation voltage of just 1.7V, the FS75R12KT3G ensures minimal conduction losses and improved thermal performance. It features ultra-low gate-emitter leakage current of 400nA and a total power dissipation capacity of 455W, offering robust operation even under high load. Engineered with Infineon’s Trenchstop IGBT3 silicon technology, this module provides reliable switching, fast response, and superior energy efficiency.
Packaged in the compact EconoPACK 3 housing, the FS75R12KT3G supports screw-mount installation for secure and stable connectivity. With dimensions of 122mm x 62mm x 17mm, it is ideal for space-sensitive power applications such as industrial converters, solar inverters, and automation systems operating in harsh conditions ranging from -40°C to +125°C.
Key Specs
Voltage: 1200V
Current: 100A continuous at 25°C
Power Dissipation: 455W
Saturation Voltage (V<sub>CE(sat)</sub>): 1.7V
Technology: Trenchstop IGBT3 (Silicon)
Gate Leakage Current: 400nA
Configuration: 6-Pack
Package: EconoPACK 3
Mounting: Screw Mount
Temperature Range: -40°C to +125°C
Dimensions: 122mm x 62mm x 17mm
