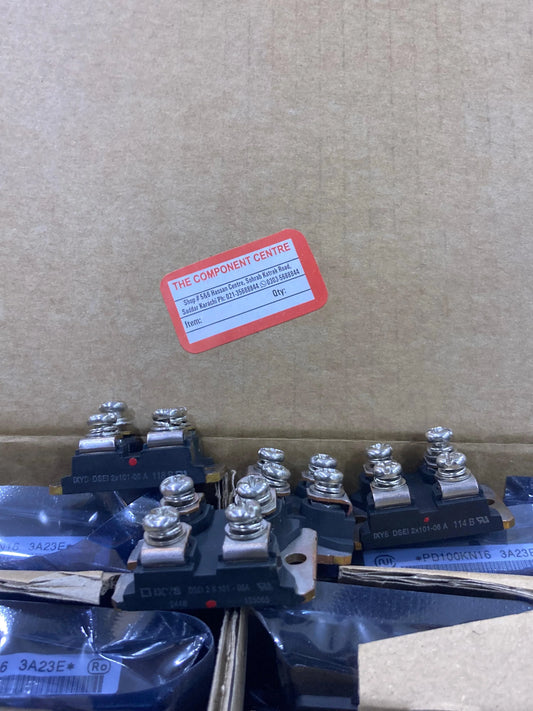

IXYS DSEI2X101-06A 600V 96A Diode Module
Regular price
Rs.6,250.00
Sale price
Rs.6,500.00

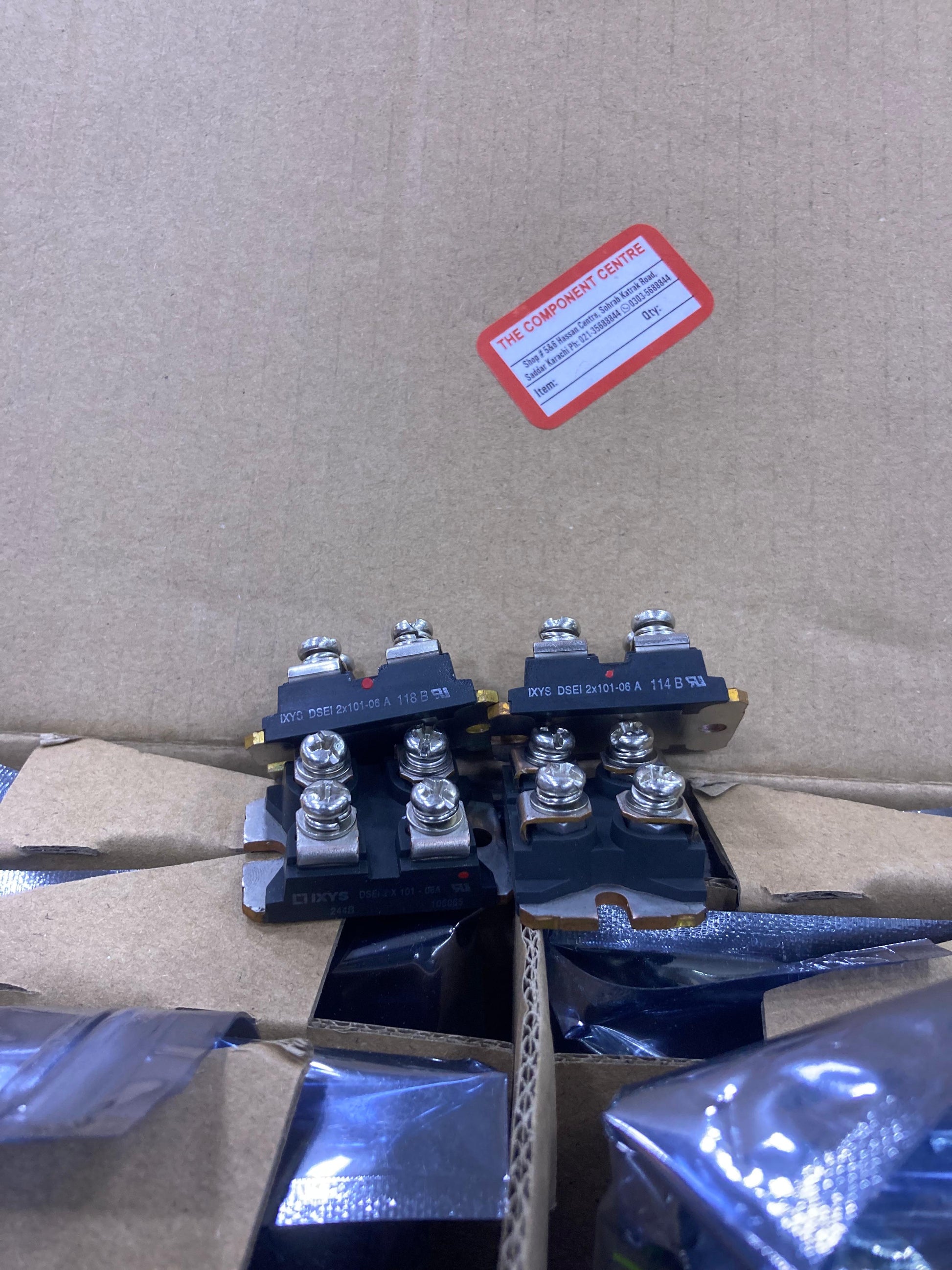

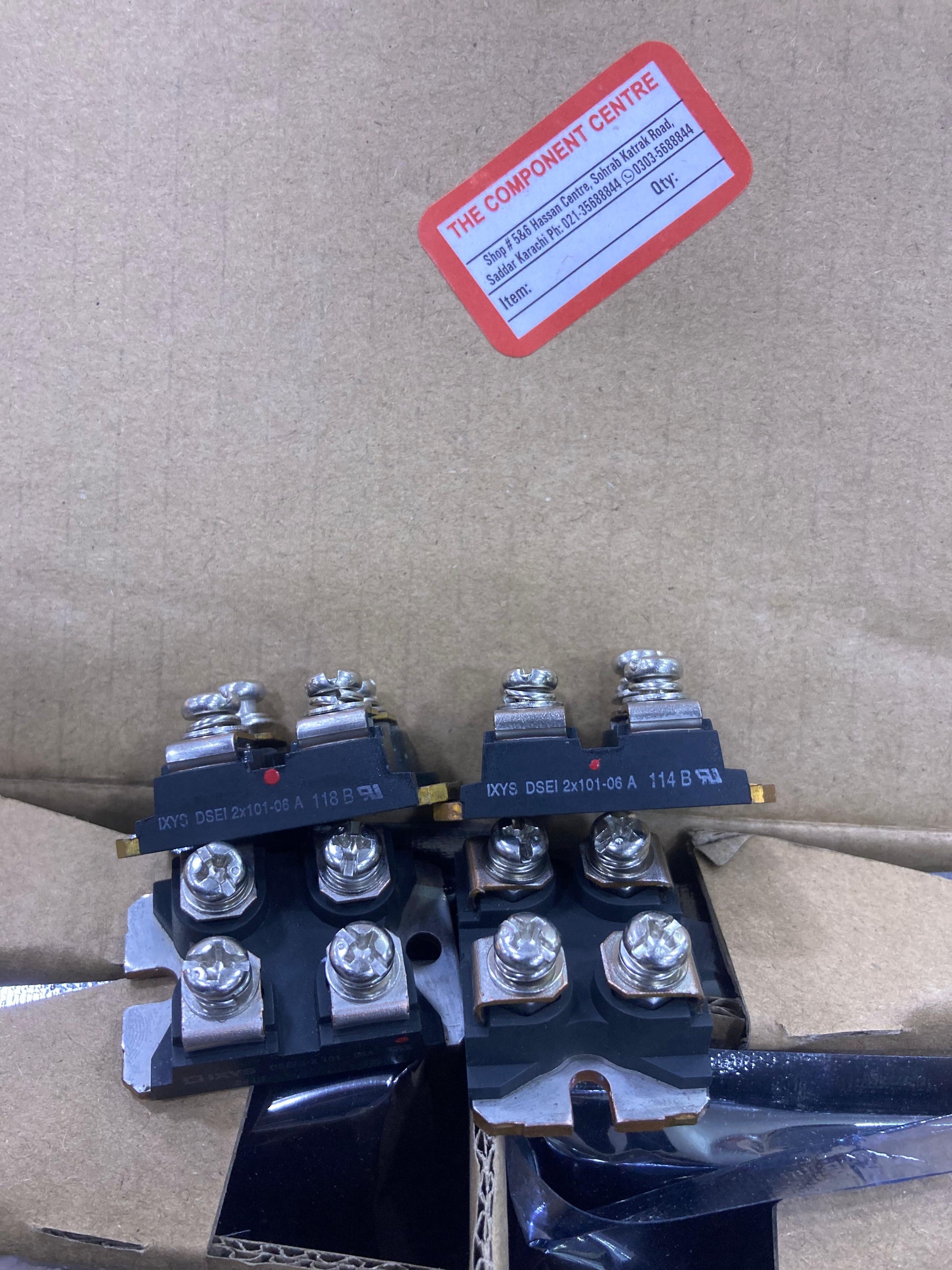

IXYS DSEI2X101-06A
The IXYS DSEI2X101-06A is a fast-recovery epitaxial diode module designed for applications that require stable switching behavior and controlled reverse recovery. Built in a SOT-227B isolated package, it supports a 600 V repetitive peak reverse voltage and provides a 96 A average rectified current per diode. Its characteristics make it suitable for rectification, free-wheeling, and protection functions in motor drives, welding systems, switched-mode power supplies, and other industrial power-electronics environments.
The device integrates soft and fast reverse recovery behavior to help limit voltage overshoot and reduce switching losses within typical operating ranges. Its low forward voltage drop and controlled thermal resistance support efficient conduction and heat transfer during continuous or pulsed operation. These features contribute to consistent electrical performance in industrial and commercial systems where high current density and stable recovery behavior are required.
The isolated module construction and SOT-227B footprint allow straightforward mounting to heatsinks, helping maintain proper thermal management during operation. The DSEI2X101-06A is commonly used as a free-wheel diode for IGBTs, an output rectifier in SMPS, and in high-current rectification stages for chargers and power converters.
Key Specs
| Parameter | Value |
|---|---|
| Manufacturer / Series | IXYS (Littelfuse) — DSEI Series |
| Part Number | DSEI2X101-06A |
| Maximum Repetitive Reverse Voltage (VRRM) | 600 V |
| Average Rectified Current per Diode (IF(AV)) | 96 A (TC = 70°C, rectangular waveform) |
| Surge Non-Repetitive Forward Current (IFSM) | ~1200 A (single pulse) |
| Forward Voltage Drop (Vf) | ~1.25 V at 100 A (typical datasheet conditions) |
| Reverse Recovery Time (trr) | Fast/soft recovery, typically in the tens of nanoseconds |
| Reverse Leakage Current (IRM) | Low leakage; see datasheet for values by temperature |
| Thermal Resistance (Rth j-c) | ~0.5 K/W (junction to case) |
| Package | SOT-227B (minibLOC), isolated baseplate |
| Typical Applications | SMPS rectification, motor drives, IGBT free-wheeling, welders, battery chargers |
