SEMIKRON SKIIP39ANB16V3 1600V 39A IGBT Module

SKIIP39ANB16V3

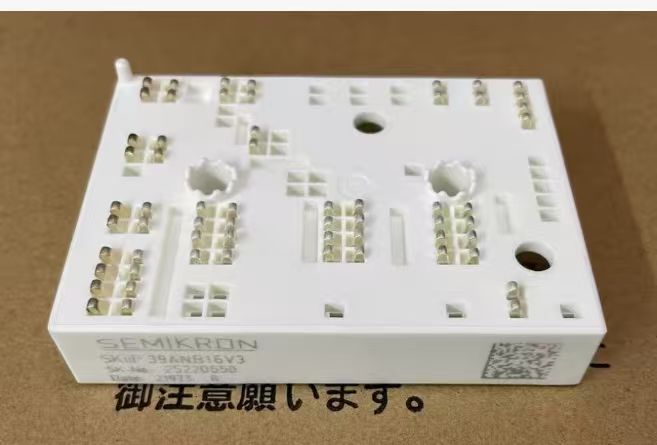

The SEMIKRON SKIIP39ANB16V3 is a compact, high-voltage half-bridge IGBT power module engineered for demanding industrial and commercial power-conversion applications. Built to handle a 1600 V blocking voltage and a 39 A continuous current rating, this module combines two trench-gate IGBTs with their free-wheeling diodes into a single intelligent package, delivering predictable switching performance for motor drives, inverters, and servo systems.

Designed for reliability under harsh operating conditions, the SKIIP39ANB16V3 uses DCB (insulated copper) baseplate technology and offers high short-circuit withstand capability along with elevated junction-temperature tolerance. The package includes thermal sensing/monitoring functionality to support safe thermal management and system protection, helping reduce downtime and extend service life in industrial installations.

This module delivers efficiency and durability where space and thermal constraints matter: its trench-gate IGBT cells and integrated diodes minimize conduction and switching losses while the robust mechanical design suits compact inverter stacks and tight industrial assemblies. Typical applications include AC drives, solar and storage inverters, traction converters, and servo-amplifier systems where precise switching, fault tolerance and long operational life are required. For designers, the SKIIP39ANB16V3 offers an off-the-shelf solution that simplifies gate-drive and protection integration with proven SEMIKRON SKiiP technology.

Key Specifications

Specification

Details

Manufacturer / Part

SEMIKRON — SKIIP39ANB16V3.

Module type

Half-bridge IGBT power module (integrated IGBT + diode).

Rated blocking voltage (V_CES / V_RRM)

1600 V (per datasheet family listings).

Continuous current (IC / module)

39 A nominal rating.

IGBT technology

Trench-gate IGBTs with integrated freewheeling diode.

Baseplate

Insulated copper (DCB) baseplate for electrical insulation and thermal conduction.

Thermal features

Supports elevated junction temperatures; includes thermal monitoring/temperature sensor pins.

Short-circuit capability

High short-circuit withstand (designed for robust fault tolerance in drive applications).

Typical applications

Motor drives, inverters, AC drives, servo amplifiers, brake choppers and industrial converters.

Packaging / mounting

Compact SKiiP family package designed for integration with matched heatsinks and SKiiP driver ecosystems.
