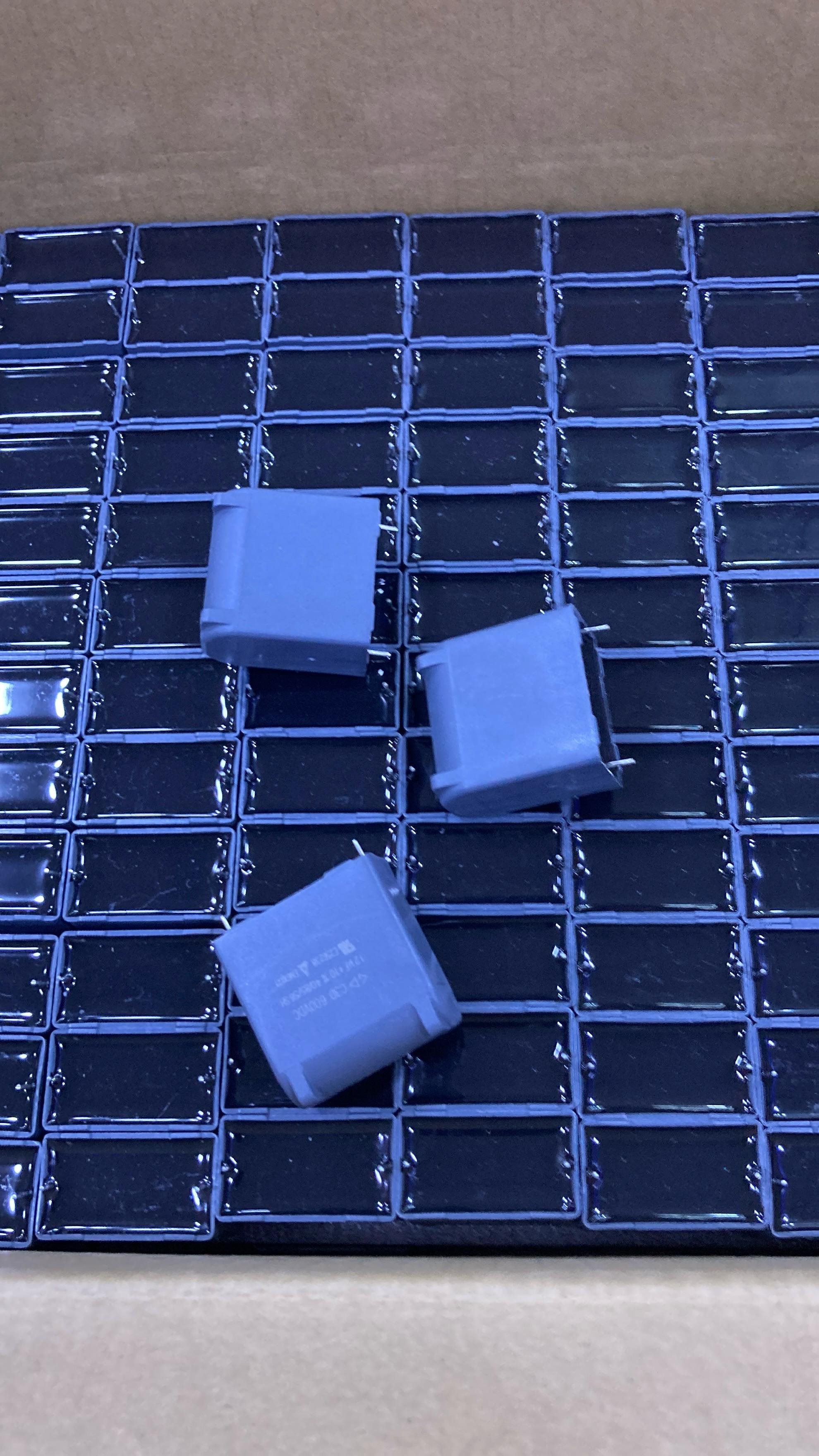

12uF 600VDC Film Capacitor
The 12uF 600VDC film capacitor is built with a metallized polypropylene dielectric, ensuring low ESR and high pulse current handling. This capacitor is ideal for DC link circuits, power filtering, and audio crossovers in both industrial and commercial systems. Its durable radial box-type design supports efficient mounting on PCBs, while a wide operating temperature range from -40C to 105C ensures reliability in demanding environments. The 12uF rating allows effective energy buffering and signal clarity in motor drives, industrial converters, and high-end sound systems. With a typical lead spacing of 37.5mm and long operational life, this capacitor meets strict performance standards.
Key Specs
Capacitance: 12uF
Voltage Rating: 600V DC
Dielectric Type: Metallized Polypropylene Film
Tolerance: ±10%
ESR: ~0.014 Ohms
Pulse Current: Up to 300A
Package: Radial Box Type with 2-Pin Leads
Lead Spacing: Approx. 37.5mm
Operating Temperature: –40°C to +105°C
Applications: DC Link, Audio Crossovers, Power Supply Filtering, Snubber Circuits, Motor Drives
Compliance: RoHS
