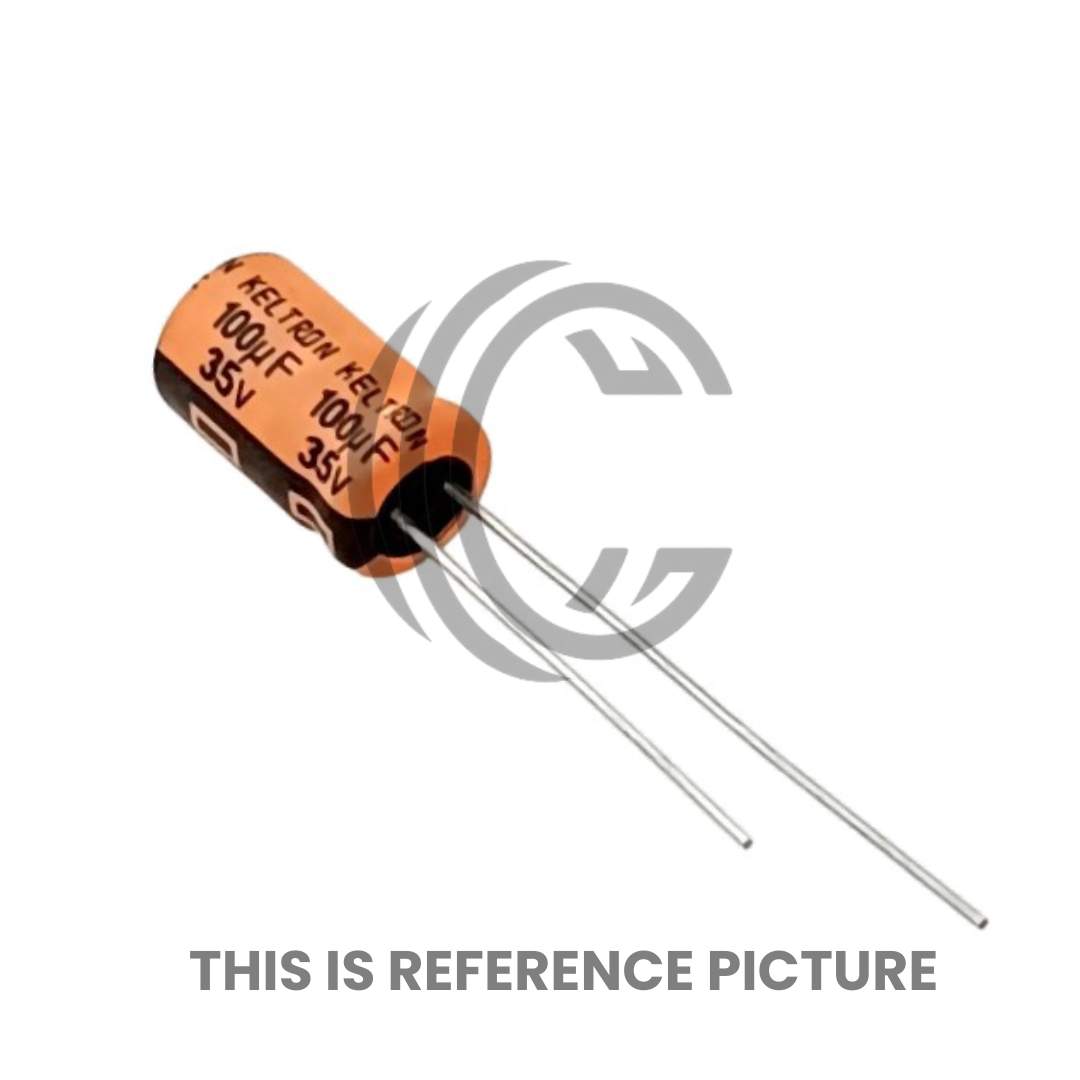

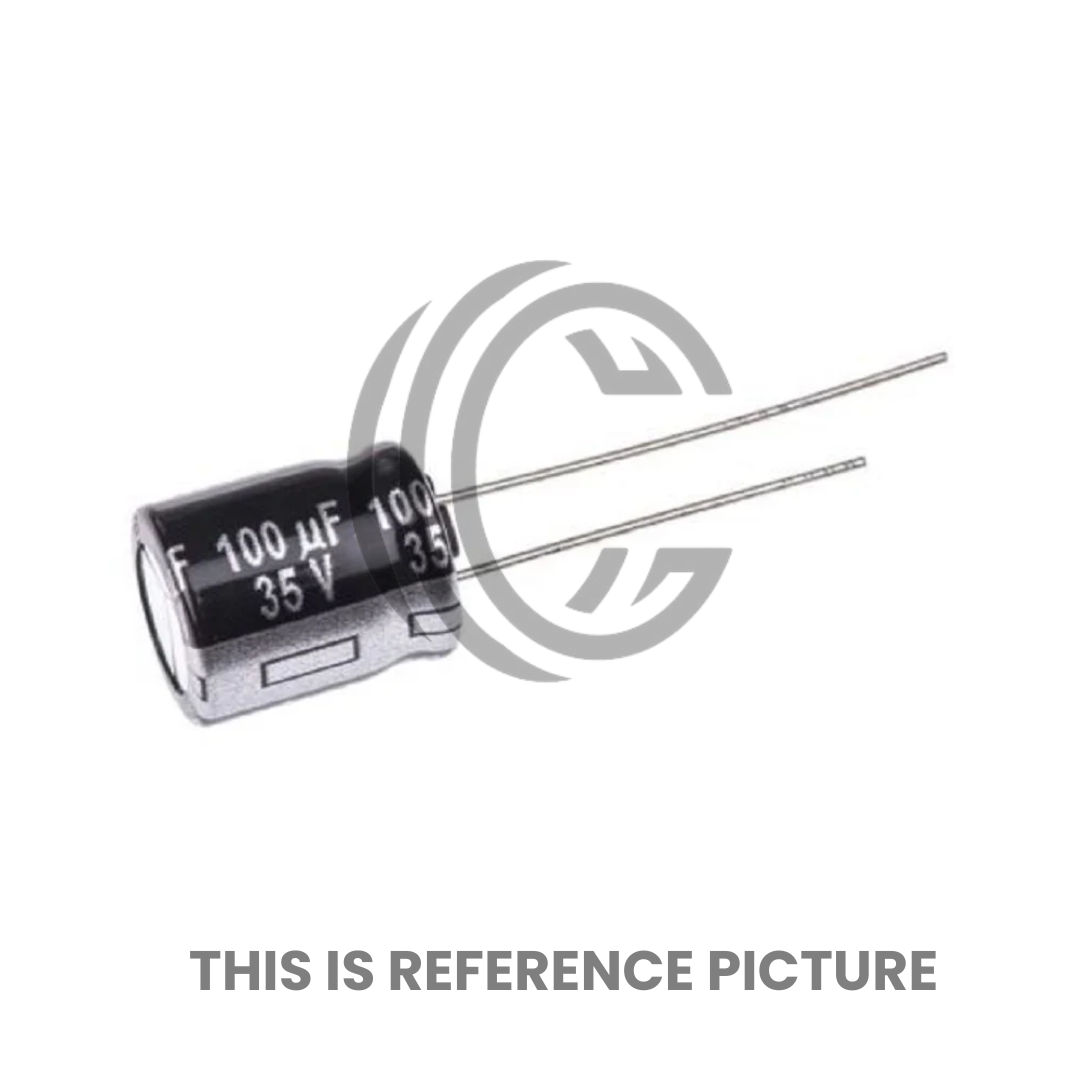

100uF 35V Radial Electrolytic Capacitor

100uF 35V Radial Electrolytic Capacitor – Aluminum, Through-Hole Type

The 100uF 35V radial electrolytic capacitor is a general-purpose aluminum capacitor designed for through-hole mounting. It features ±20% tolerance, low ESR, and long life (1,000–2,000 hours at 85°C), making it suitable for filtering, decoupling, and energy buffering in power supply and electronic circuits.

This capacitor has a compact cylindrical body—approximately 6.3mm in diameter and 11mm in height—with a standard 2.5mm lead pitch. It supports operation from –40°C to +105°C, with a typical ripple current of 150–200mA and a maximum leakage current around 100µA.

Ideal for consumer and industrial electronics, it is widely used in power adapters, audio systems, and control boards. It is RoHS compliant and available from brands like Nichicon, Rubycon, and Panasonic.

Key Specs Capacitance: 100uF Voltage Rating: 35V DC Tolerance: ±20% Ripple Current: ~150mA Leakage Current: ≤100µA Operating Temperature: –40°C to +105°C Dimensions: ~6.3mm × 11mm, 2.5mm lead spacing Package: Radial, through-hole Features: Low ESR, long life, RoHS compliant Expected Lifetime: 1,000–2,000h @ 85°C
