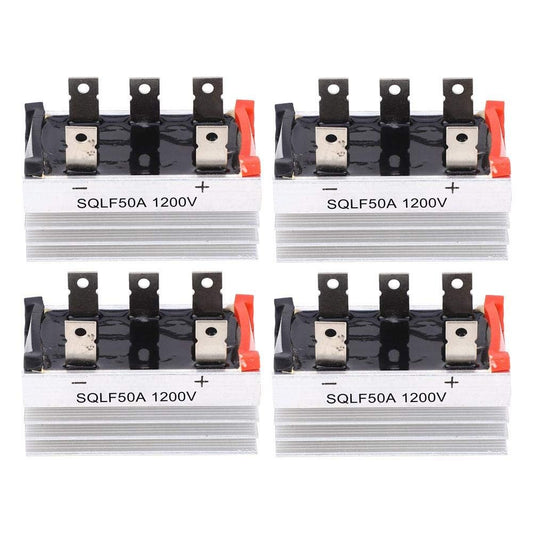

SQL150A 3 Phase 50A 1200V Diode Bridge Rectifier
Regular price
Rs.250.00
Sale price
Rs.400.00
SQL150A 3‑Phase 50A 1200V Diode Bridge Rectifier
The SQL150A 3‑Phase 50A 1200V Diode Bridge Rectifier is an AC-to-DC conversion module for industrial and commercial power applications. With a current capacity of 50A and a voltage rating of 1200V, it provides stable DC output under heavy load. It is suitable for motor drives, UPS systems, industrial power supplies, solar inverters, welding machines, and automation systems in Pakistan.
The SQL150A ensures consistent operation and efficient power conversion under high load and transient conditions. Its compact, industrial-grade housing supports installation in tight enclosures and mounting on heatsinks or panels for improved thermal performance. This configuration ensures long-term operation and reduces maintenance needs.
The three-phase 6-diode configuration provides smooth DC output with reduced ripple for sensitive electronics and heavy motors. It is suitable for systems requiring stable AC-to-DC conversion.
Key Specs
| Specification | Value |
|---|---|
| DC Output Current (I<sub>D</sub>) | 50 A |
| Peak Repetitive Reverse Voltage (V<sub>RRM</sub>) | 1200 V |
| Average Forward Current (per diode branch, I<sub>FAV</sub>) | ≈ 25 A |
| Surge Peak Forward Current (I<sub>FSM</sub>) | ~ 175 A |
| Isolation (RMS) Voltage | 2500 V<sub>rms</sub> |
| Thermal Resistance (junction-to-case, R<sub>th(j–c)</sub>) | 5.0 °C/W |
| Maximum Junction Temperature (T<sub>j max</sub>) | 125 °C |
| Package Type / Circuit Topology | Three-phase, 6-diode bridge (6-pulse) |
| Mounting / Housing | Encapsulated module, panel or heatsink mountable |
