GBJ2510 25A 1000V Single Phase Bridge Rectifier
Regular price
Rs.150.00
Sale price
Rs.200.00

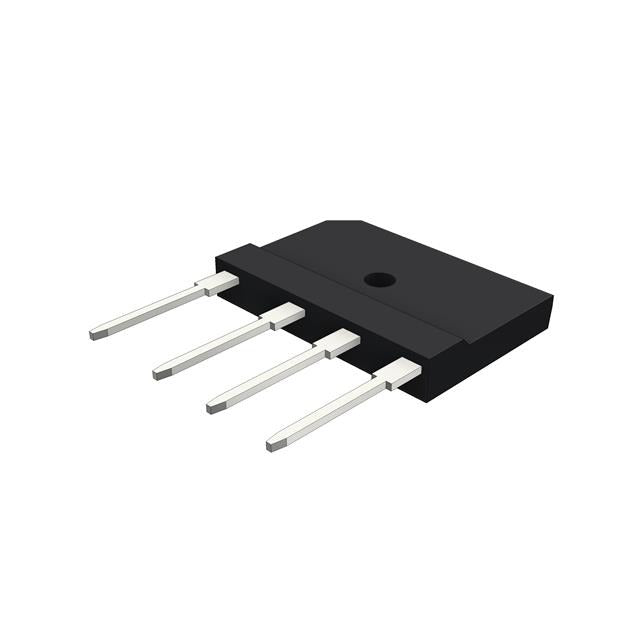

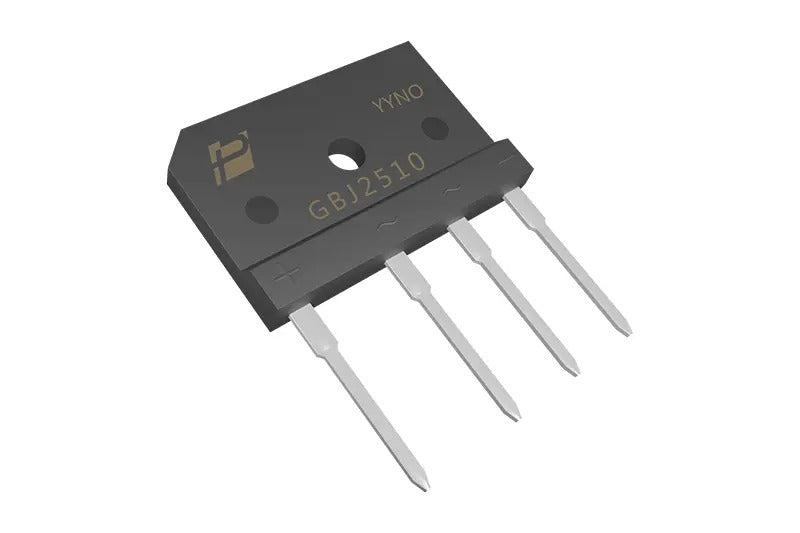

GBJ2510 Bridge Rectifier
The GBJ2510 Bridge Rectifier is a single-phase bridge rectifier module designed to provide stable AC-to-DC conversion in industrial and commercial power electronics. Rated for 1000 V peak reverse voltage and 25 A continuous output current, it is suitable for inverters, motor drives, UPS systems, battery chargers, and general-purpose AC-DC power supplies. Its GBJ molded package allows for direct PCB mounting or attachment to a heat sink, supporting compact designs and effective thermal management in constrained spaces.
The device features a low forward voltage drop of approximately 1.0–1.05 V at 12.5 A, minimizing conduction losses and supporting energy-efficient operation. With a peak surge current capability of 350 A (single half-sine wave, 8.3 ms), it can withstand transient loads and startup surges typical in motor drives and industrial power systems. The glass-passivated die construction ensures low reverse leakage current and stable performance under repeated thermal cycles.
The GBJ2510 operates reliably in a wide temperature range from –55 °C to +150 °C, making it compatible with high-temperature environments found in industrial machinery, automation control, and solar inverters. The device is RoHS- and Pb-free, and its GBJ package meets UL 94V-0 standards.
Key Specs
| Parameter | Specification |
|---|---|
| Peak Reverse Voltage (V_RRM) | 1000 V |
| RMS Reverse Voltage (V_RMS) | 700 V |
| DC Blocking Voltage | 1000 V |
| Average Forward Rectified Current (I_O) | 25 A (T_C = 100 °C) |
| Peak Forward Surge Current (I_FSM) | 350 A (8.3 ms, single half-sine wave) |
| Forward Voltage Drop (V_F) @ 12.5 A | ~1.0–1.05 V |
| Reverse Leakage Current (I_R) @ 25 °C | ~10 µA @ 1000 V |
| Junction / Storage Temperature Range | –55 °C to +150 °C |
| Package / Mounting | GBJ molded module, 4-pin through-hole / PCB or heat sink mount |
| Case Material / Flammability Rating | Molded plastic body, UL 94V-0 |
| Compliance | RoHS / Pb-free, UL Recognized |

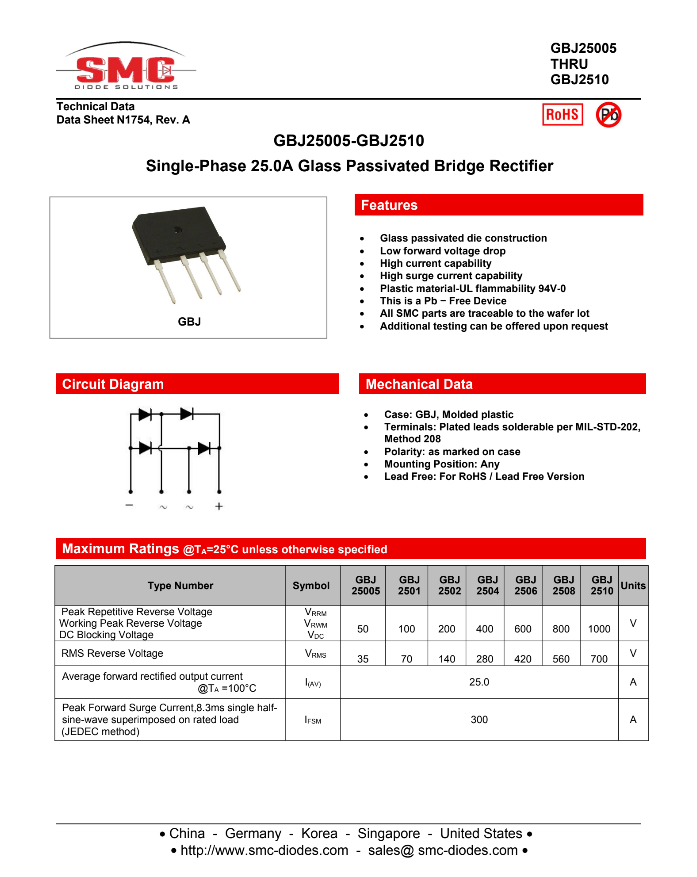

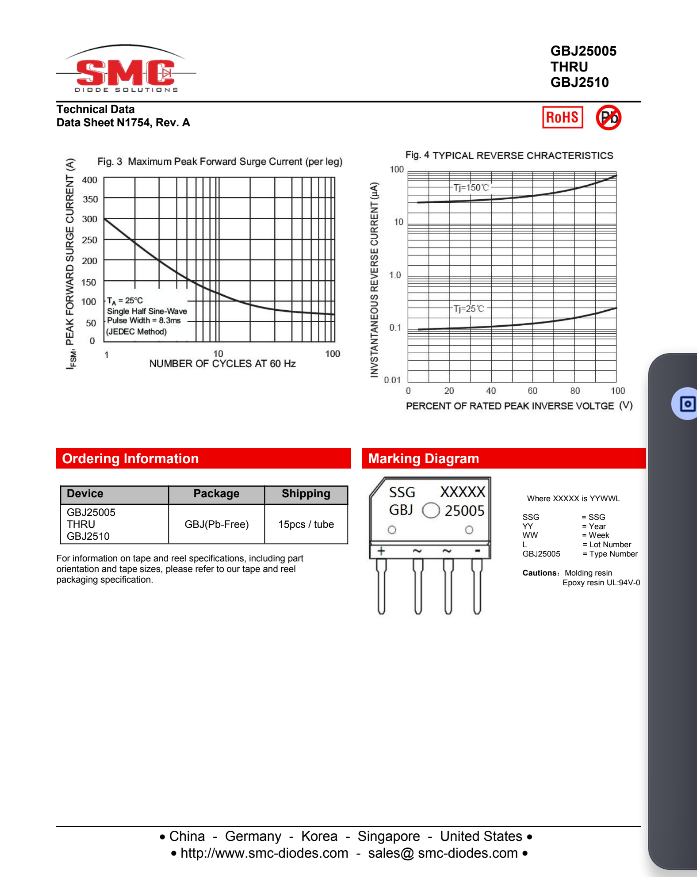

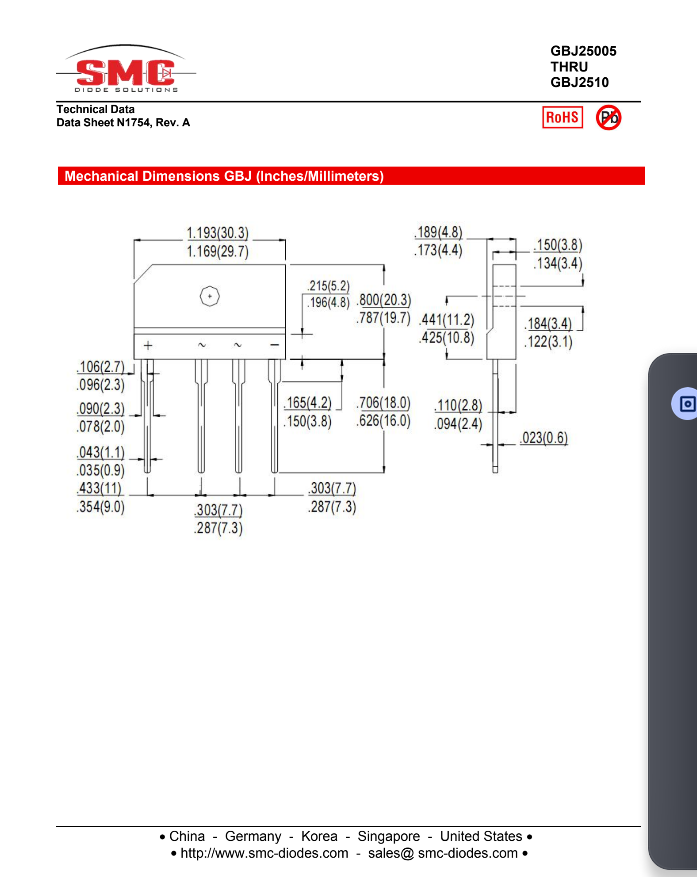

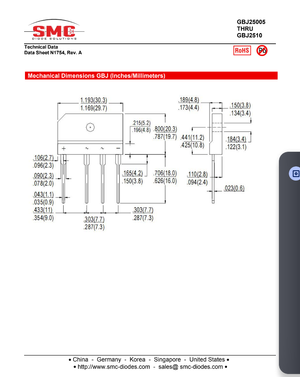

For full electrical characteristics, mechanical data, and pin configuration, refer to the official datasheet.
