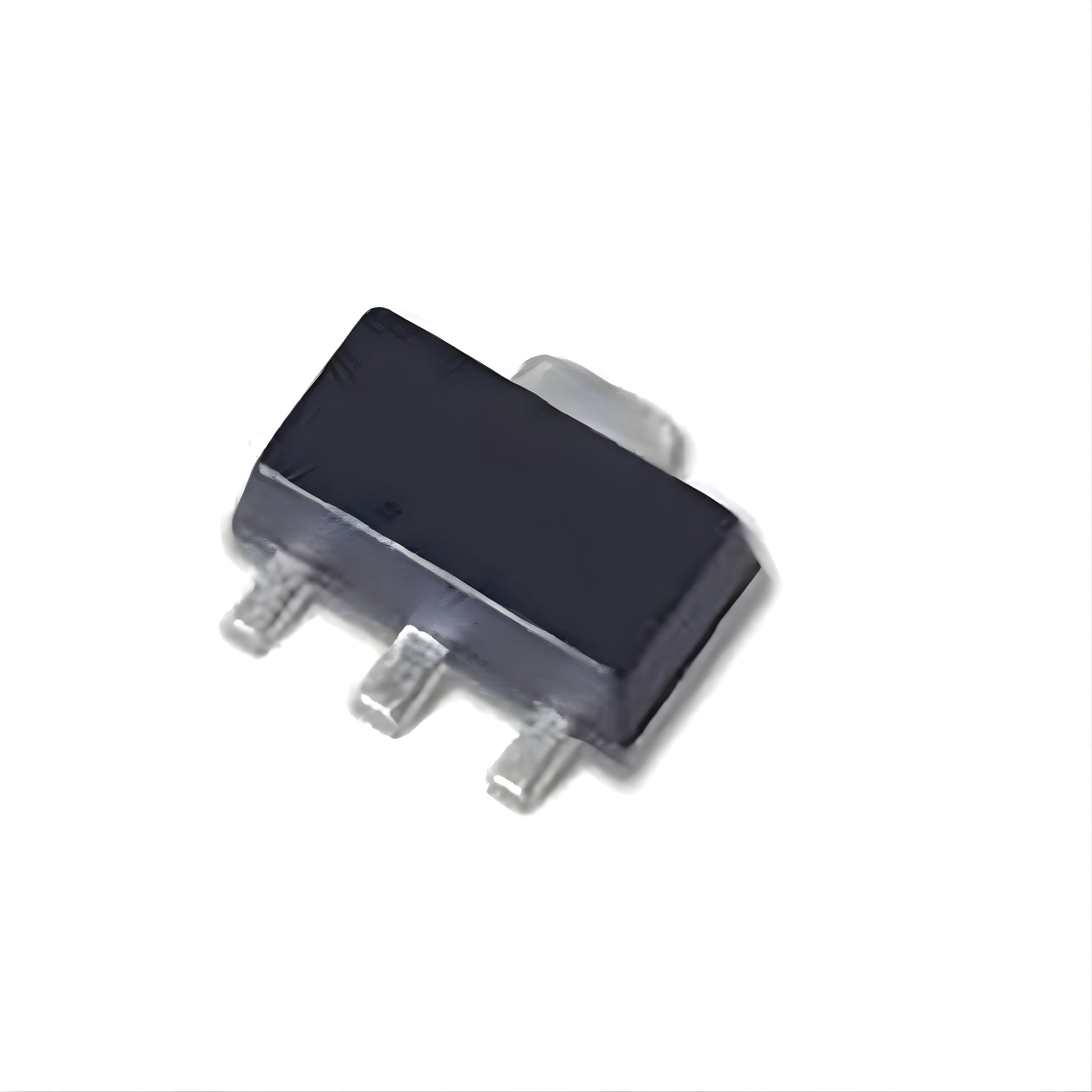

2SC2873 50 V, 2 A, SOT-89 NPN Transistor
Regular price
Rs.25.00
Sale price
Rs.35.00
2SC2873
The 2SC2873 is an NPN bipolar transistor designed for power switching and amplification in compact electronic systems. It supports a collector-emitter voltage of 50 V, a continuous collector current of 2 A, and is supplied in a SOT-89 surface-mount package. With a VCE(sat) of 0.5 V, the device helps reduce conduction loss and maintains stable operation in medium-power applications.
The device provides a DC current gain of 70 at 500 mA and a transition frequency of 120 MHz, allowing use in high-frequency switching stages, signal processing circuits, and general power-control functions. Its operating temperature range of –55 °C to +150 °C and power dissipation rating of 500 mW support integration into environments where thermal consistency is required.
These electrical characteristics make the 2SC2873 suitable for DC-DC converters, driver circuits, small motor control boards, and industrial or commercial power-handling modules where compact size and predictable switching behaviour are needed.
Key Specs
| Parameter | Value |
|---|---|
| Part Number | 2SC2873 |
| Type | NPN Bipolar (BJT) |
| Package | SOT-89 |
| Collector-Emitter Voltage (VCEO) | 50 V |
| Collector Current (IC) | 2 A |
| Power Dissipation (Pd) | 500 mW |
| DC Current Gain (hFE) | 70 @ 500 mA, 2.0 V |
| Transition Frequency (fT) | 120 MHz |
| VCE(sat) | 500 mV |
| Collector Cutoff Current | 100 nA |
| Operating Temperature | –55 °C to +150 °C |
