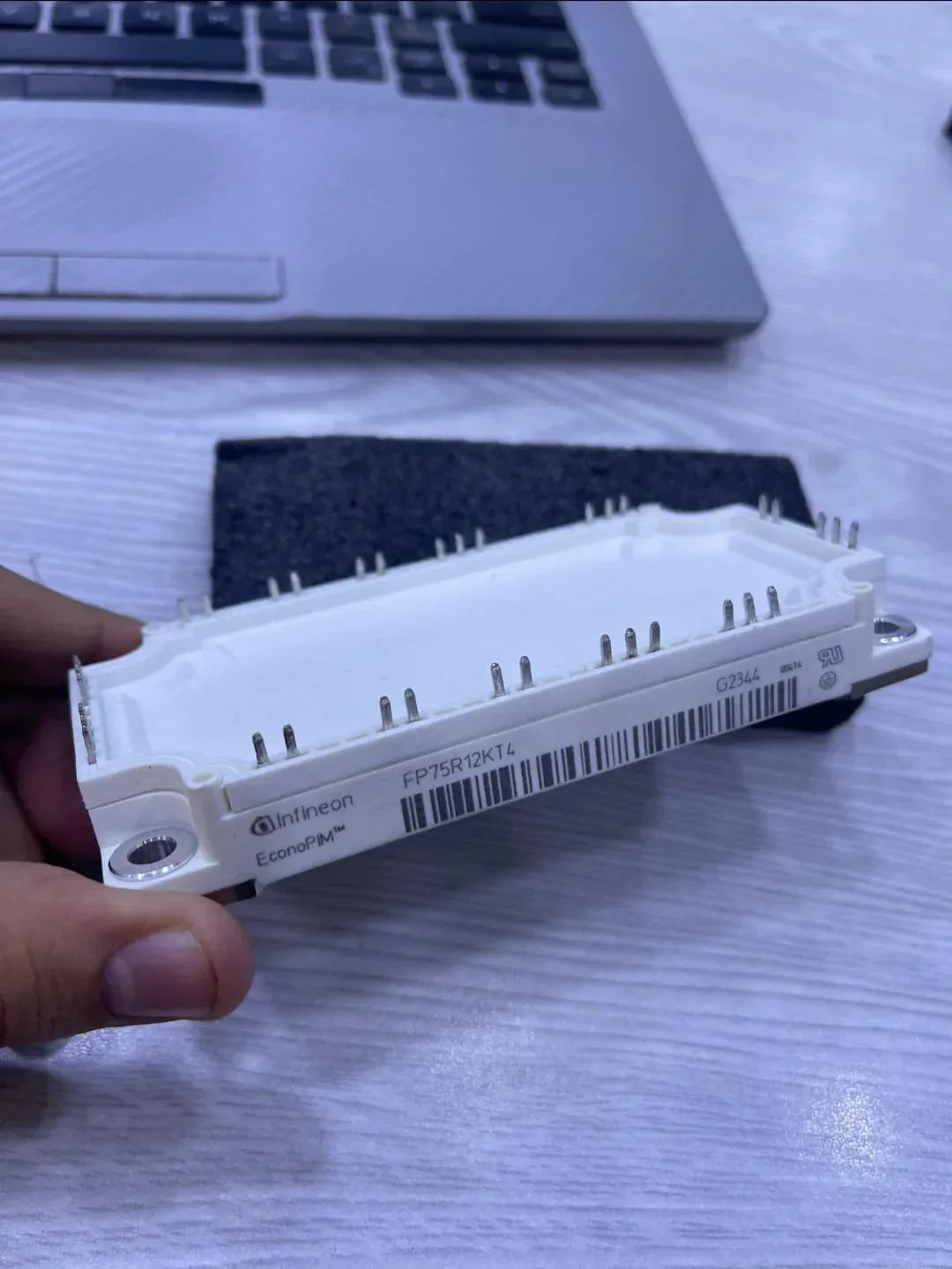

Infineon FP75R12KT4 1200V 75A IGBT Module
Regular price
Rs.14,500.00
Sale price
Rs.15,200.00
Infineon FP75R12KT4
The Infineon FP75R12KT4 is an IGBT power module designed for stable and efficient operation in modern power electronics systems. It is based on TrenchSTOP™ IGBT4 technology and assembled in the EconoPIM™ 3 package, which supports compact inverter designs with controlled thermal behavior. The module is intended for applications that require predictable switching performance, low conduction losses, and consistent electrical characteristics over long operating periods.
With a rated voltage of 1200 V and a nominal current of 75 A, the FP75R12KT4 is suitable for industrial motor drives, servo drives, UPS systems, power supplies, and renewable energy inverters. The module integrates IGBT and diode components along with an NTC temperature sensor, allowing accurate temperature monitoring and supporting system-level protection. Its copper baseplate helps maintain uniform heat transfer, which is important for continuous operation in industrial and commercial environments.
The FP75R12KT4 supports high switching frequencies while maintaining controlled power dissipation, making it suitable for medium-power inverter stages where efficiency and durability are required. The electrical and thermal design allows stable operation across a wide temperature range, contributing to predictable system behavior.
Key Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Infineon Technologies |
| Part Number | FP75R12KT4 |
| Module Type | IGBT Power Module |
| Technology | TrenchSTOP™ IGBT4 |
| Package | EconoPIM™ 3 |
| Collector-Emitter Voltage (VCES) | 1200 V |
| Nominal Collector Current (IC) | 75 A |
| Repetitive Peak Collector Current | 150 A |
| Typical VCE(sat) | ~1.85 V |
| Gate-Emitter Voltage | ±20 V |
| Operating Junction Temperature | −40 °C to +150 °C |
| Thermal Resistance (IGBT, RthJC) | ~0.39 K/W |
| Integrated Sensor | NTC Temperature Sensor |
| Compliance | RoHS compliant |
