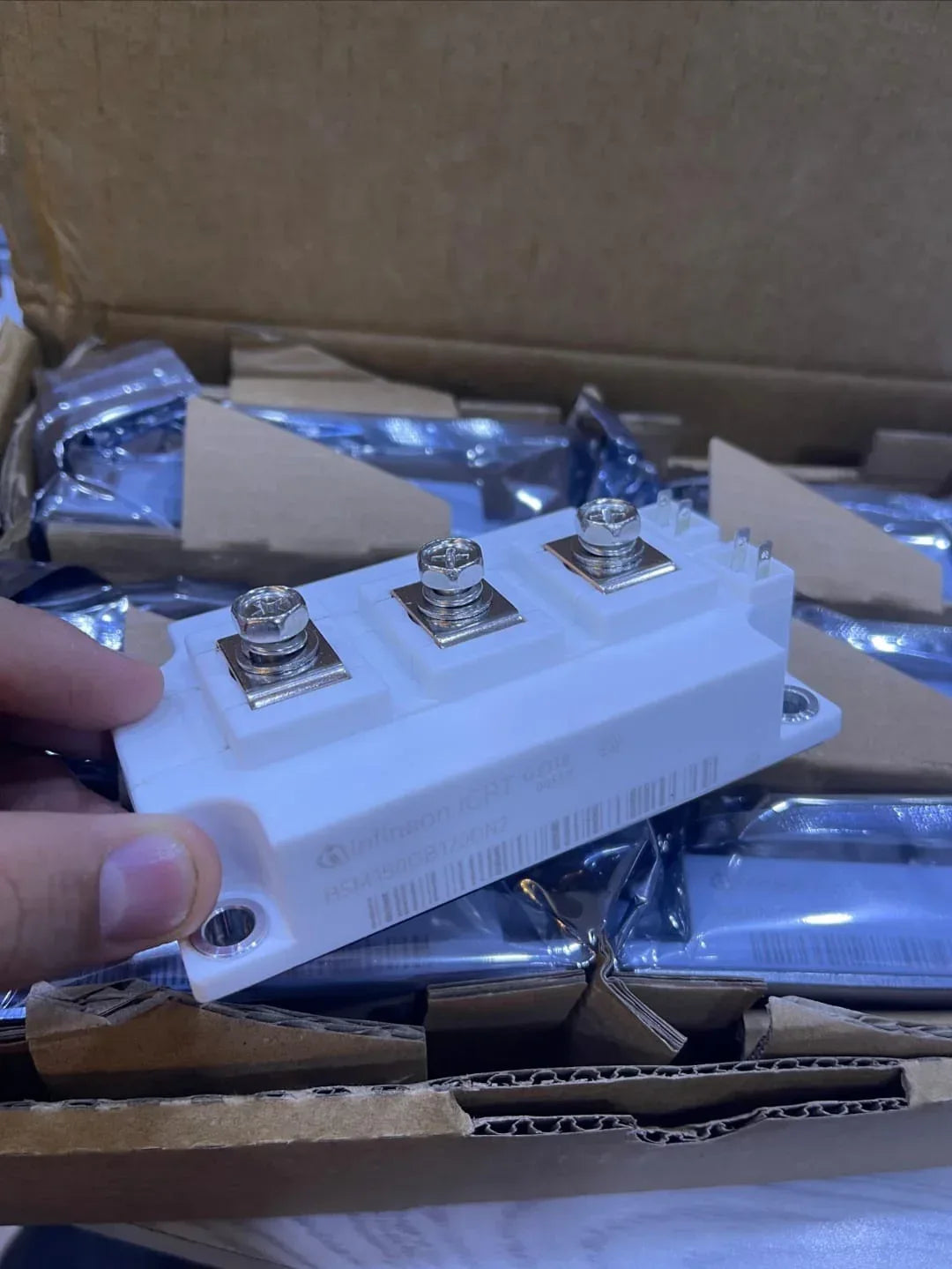

Infineon BSM150GB120DN2 1200V 210A IGBT Module
Regular price
Rs.11,000.00
Sale price
Rs.11,500.00
Infineon BSM150GB120DN2
Infineon Technologies BSM150GB120DN2 is an IGBT power module designed for use in industrial and commercial power electronics systems. It features a half-bridge configuration with integrated fast free-wheeling diodes, supporting controlled switching in medium to high-power applications. The module is commonly used in motor drives, inverters, UPS systems, welding equipment, and switched-mode power supplies where stable electrical performance and predictable operation are required.
The BSM150GB120DN2 is rated for 1200 V collector-emitter voltage and supports high continuous current operation, enabling efficient handling of power conversion tasks. Its electrical characteristics, including controlled switching behavior and defined saturation voltage, help reduce conduction and switching losses at the system level. The module structure is designed to support consistent thermal performance, allowing operation under continuous load conditions in industrial environments.
This IGBT module operates over a temperature range of -40 °C to +150 °C, making it suitable for installations exposed to varying environmental conditions. The chassis-mount package supports effective heat transfer to external cooling systems and simplifies mechanical integration. The BSM150GB120DN2 complies with RoHS requirements and is intended for long-term use in standard industrial power electronics designs.
Key Specs – Infineon BSM150GB120DN2
| Specification | Value |
|---|---|
| Brand | Infineon Technologies |
| Part Number | BSM150GB120DN2 |
| Device Type | IGBT Power Module |
| Configuration | Half-Bridge with Free-Wheeling Diodes |
| Collector-Emitter Voltage (VCE max) | 1200 V |
| Continuous Collector Current (IC) | 210 A |
| Collector-Emitter Saturation Voltage | Approx. 2.5 V |
| Total Power Dissipation | 1250 W |
| Gate-Emitter Voltage | ±20 V |
| Operating Temperature Range | -40 °C to +150 °C |
| Mounting Type | Chassis Mount |
| Package Type | Half Bridge2 |
| Compliance | RoHS |
| Typical Applications | Motor Drives, Inverters, UPS, Welding Systems, SMPS |
