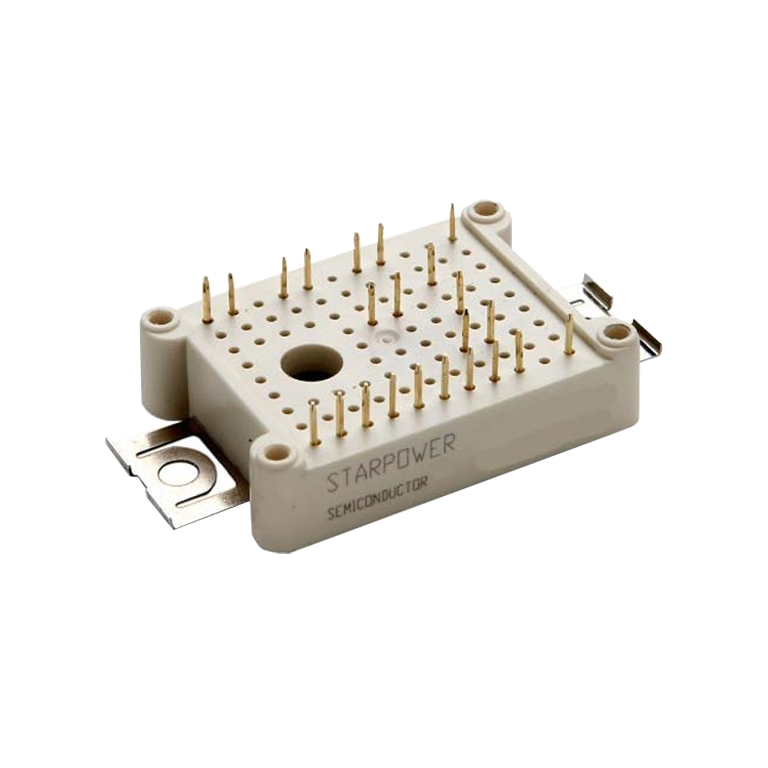

GD25FSY120L2S IGBT Module
The GD25FSY120L2S is a half-bridge IGBT module designed for reliable switching in industrial and commercial power electronics systems. With a collector-emitter voltage of 1200 V and a collector current of 25 A, it provides consistent performance in motor drives, inverters, and UPS systems. Its compact form factor allows easy integration into existing assemblies while supporting high-current applications.
This module features low VCE(sat) to minimize conduction losses and maintain thermal stability. The DBC-based copper baseplate ensures good heat dissipation and long-term durability. It also includes fast-recovery freewheeling diodes that help maintain efficient operation in high-speed switching scenarios.
Suitable for applications that require stable, repeatable performance, the GD25FSY120L2S supports industrial environments with temperature variations and electrical stress. Its design focuses on reliability and ease of use without adding unnecessary complexity.
Key Specifications
| Specification | Value |
|---|---|
| Collector–Emitter Voltage (V_CES) | 1200 V |
| Collector Current (I_C) | 25 A |
| Pulsed Collector Current (I_CP) | 50 A |
| Maximum Power Dissipation (P_C) | 50 W |
| Short-Circuit Capability | 10 µs |
| Diode Type | Fast-Recovery |
| Baseplate | Copper (DBC) |
| Features | Low VCE(sat), Compact Design |
| Typical Applications | Motor Drives, Inverters, UPS Systems |
