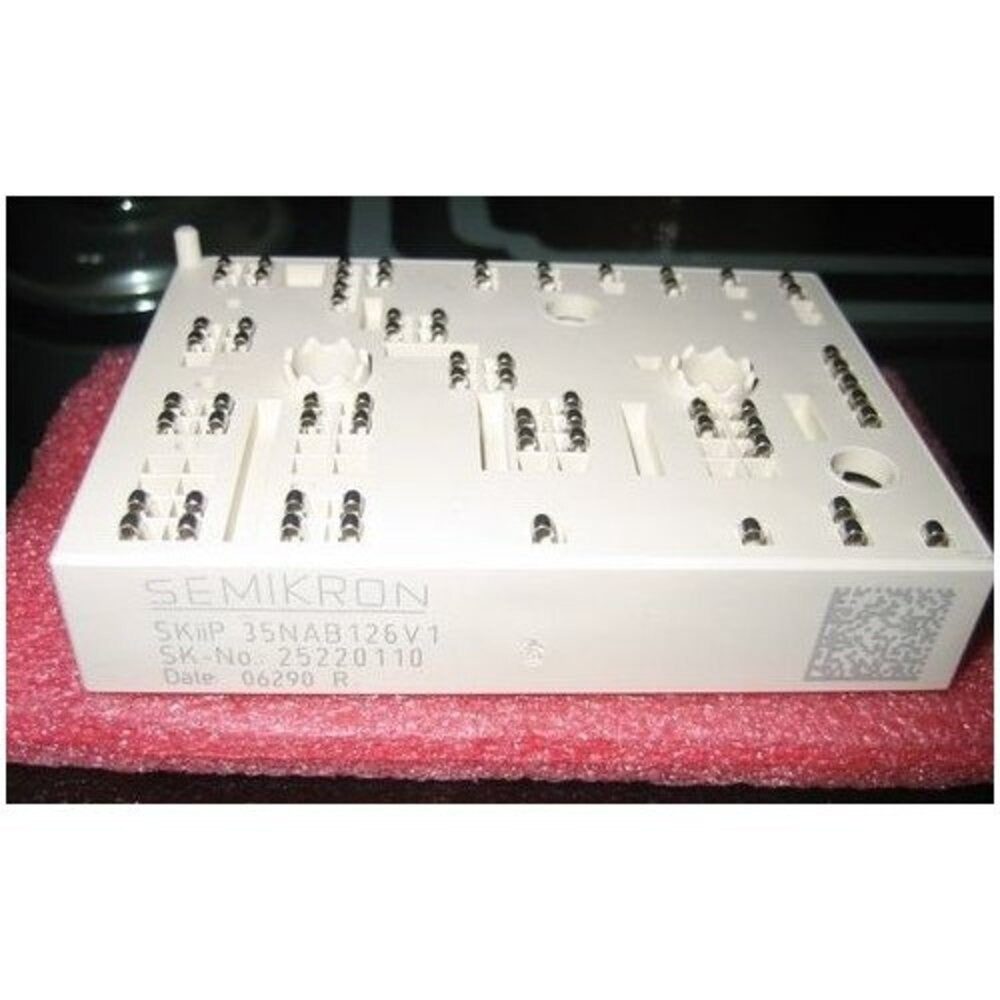

Semikron SKIIP35NAB126V1
The Semikron SKIIP35NAB126V1 is a state-of-the-art IGBT module engineered for high-efficiency power conversion in industrial applications. Designed with advanced trench IGBT technology and soft freewheeling diodes, this module delivers exceptional performance in inverter, converter, and brake chopper circuits. Its robust design ensures reliable operation in demanding environments, making it ideal for motor drives, uninterruptible power supplies (UPS), and renewable energy systems.
Built within the compact MiniSKiiP II 3 housing, the SKIIP35NAB126V1 offers a space-saving solution without compromising on performance. The module's spring contacts facilitate secure and reliable electrical connections, enhancing its durability and ease of integration into various systems. With a voltage rating of 1200 V and a current rating of 50 A, it provides a versatile solution for a wide range of industrial power electronics applications.
Whether you're designing a new system or upgrading an existing one, the SKIIP35NAB126V1 offers the efficiency, reliability, and performance needed to meet the demands of modern industrial applications.
Key Specifications
| Feature | Specification |
|---|---|
| Module Type | IGBT Module |
| Voltage Rating | 1200 V |
| Current Rating | 50 A |
| Technology | Fast Trench IGBT, CAL Diode |
| Housing Type | MiniSKiiP II 3 |
| Mounting Type | Spring Contacts |
| Topology | 3-Phase Bridge Rectifier + Brake Chopper + 3-Phase Bridge Inverter |
| Dimensions (L x W x H) | 82 x 59 x 16 mm |
| Typical Applications | Inverters up to 28 kVA, Motor Drives up to 15 kW |
| Compliance | UL Recognized File No. E63532 |
For more detailed information, please refer to the Semikron SKIIP35NAB126V1 datasheet.
