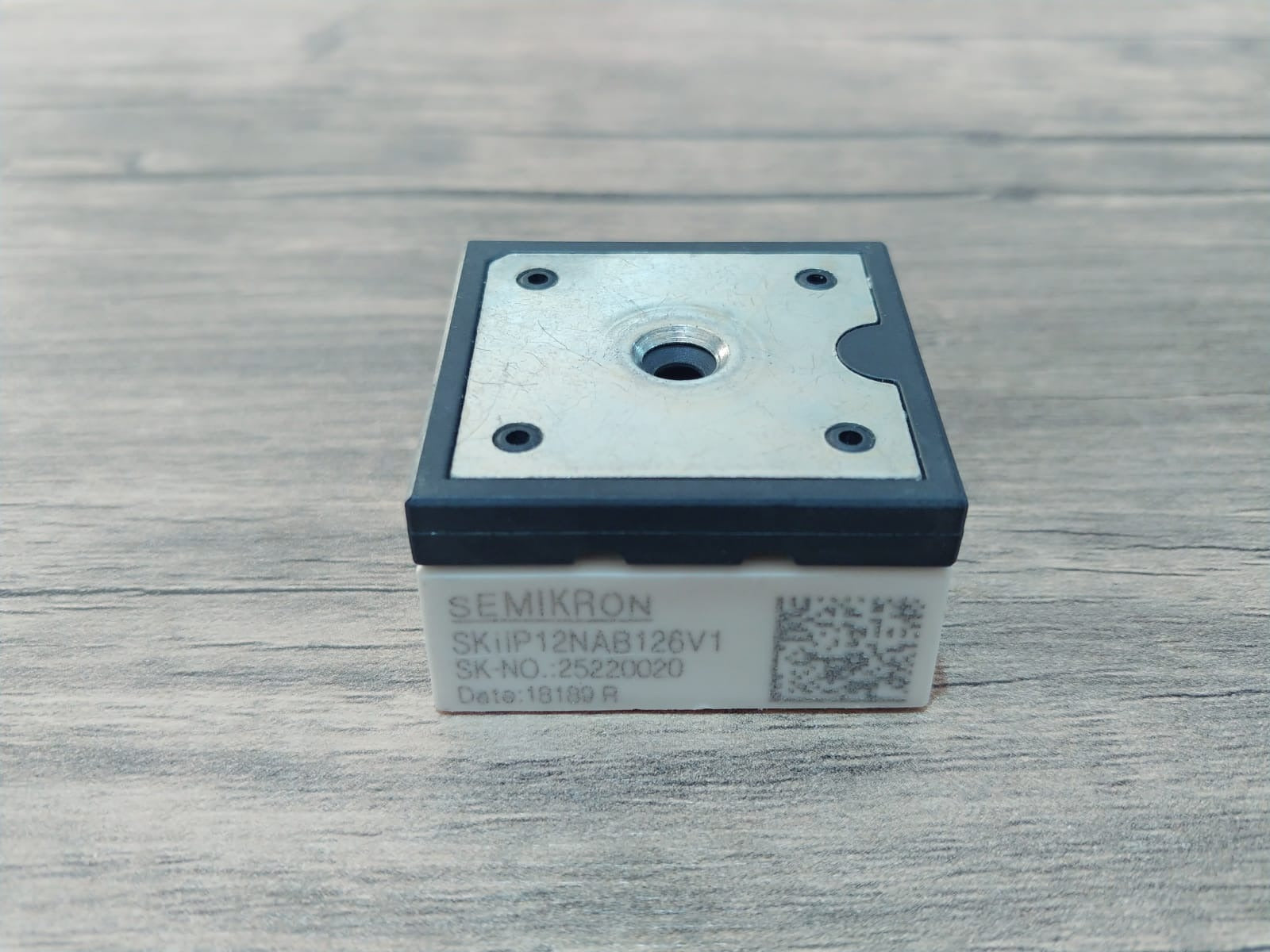

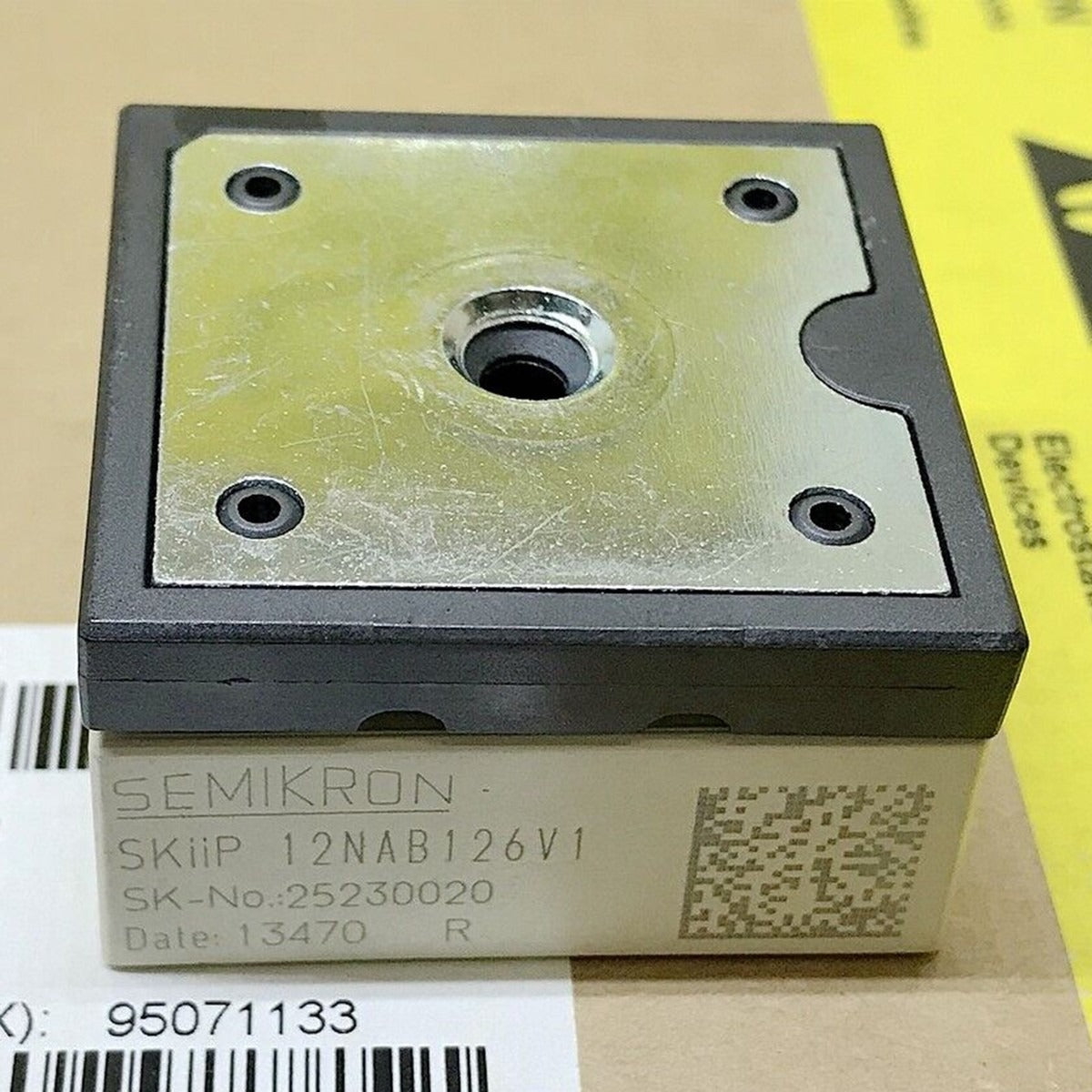

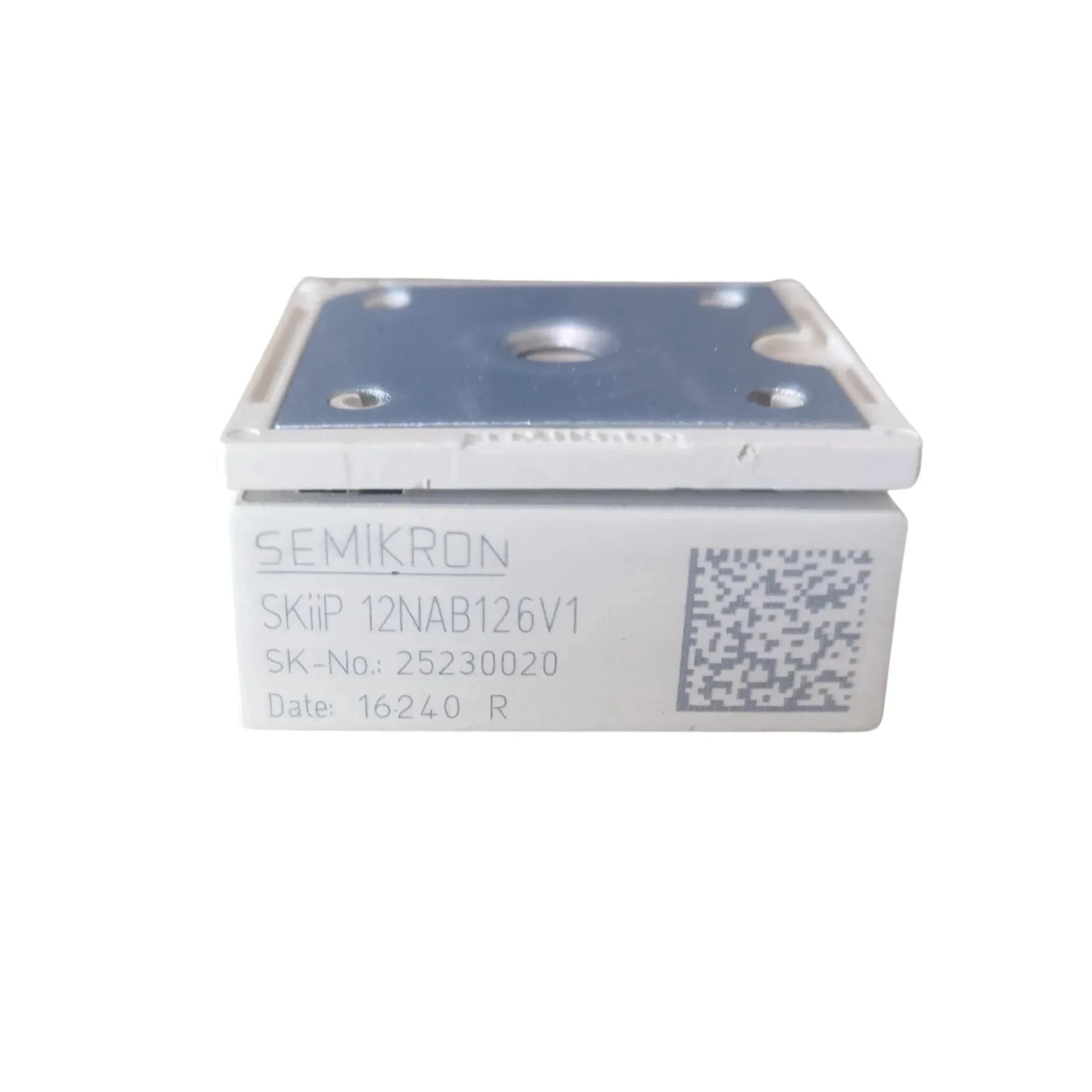

SKIIP12NAB126V1 — MiniSKiiP® Converter / Inverter / Brake Module
The SKIIP12NAB126V1 is a MiniSKiiP® power module designed for use in three-phase converter, inverter, and brake-chopper circuits. It uses Trench IGBT technology with integrated freewheeling diodes and comes in the MiniSKiiP II housing with spring-contact terminals. The module is intended for applications in motor drives, compact inverters, UPS systems, and general industrial power electronics.
This module provides 1200 V blocking capability and supports rated currents in the 15 A to 22 A range depending on mounting and thermal conditions. The Trench IGBTs are optimized for low switching and conduction losses, while CAL diodes enable soft recovery behavior. Spring-contact assembly simplifies mechanical mounting and maintains electrical reliability under thermal cycling.
Thermal impedance data, switching energy curves, and transfer characteristics are documented in the official datasheet, supporting accurate thermal design. The SKIIP12NAB126V1 is suitable for inverters up to approximately 10 kVA, with a typical motor drive rating around 5.5 kW.
Key Specifications
| Parameter | Value |
|---|---|
| Part number | SKIIP12NAB126V1 |
| Module type | Converter / Inverter / Brake |
| Chip technology | IGBT3 (Trench) |
| Blocking voltage | 1200 V |
| Rated current (typical) | 15 A (datasheet) |
| Alternate current rating | 22 A (distributor listing, depends on cooling) |
| Package | MiniSKiiP® II |
| Typical applications | Motor drives (~5.5 kW), inverters up to 10 kVA, UPS, brake choppers |
| Dimensions | 42 × 40 × 16 mm |
| Key features | Spring contacts, trench IGBTs, CAL diodes, UL recognition |
| Datasheet reference | SEMIKRON official SKiiP datasheet |
For full electrical characteristics, thermal impedance, and application guidelines, please refer to the official datasheet:
📄 Download SKIIP12NAB126V1 Datasheet (Semikron)
