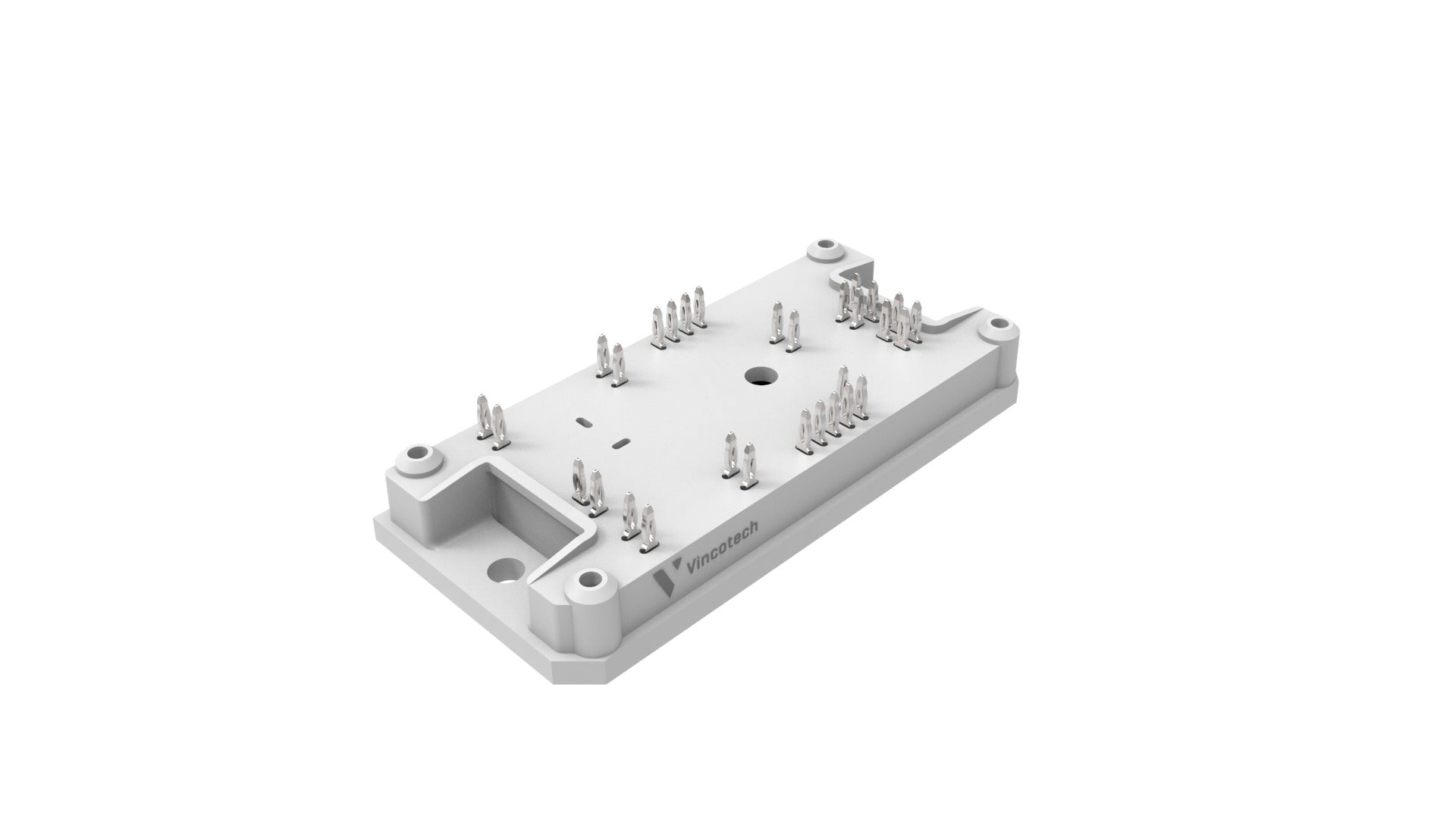

PY12NMA160SH01 Power IGBT Module
The PY12NMA160SH01 is a high-performance power IGBT module from Vincotech, engineered to meet the rigorous demands of industrial power electronics applications. With a voltage rating of 1200 V and a current rating of 160 A, this module offers exceptional efficiency and reliability. Its mixed voltage Neutral Point Clamped (NPC) topology ensures optimal performance in various applications, including solar inverters, uninterruptible power supplies (UPS), and active front-end converters.
Designed for industrial and commercial use, the PY12NMA160SH01 is built to withstand harsh operating conditions, providing long-term durability and reduced maintenance needs. Its low inductance layout and split output configuration contribute to enhanced switching performance and reduced electromagnetic interference. The module's Kelvin emitter design further improves switching characteristics, making it suitable for high-speed switching applications.
For more detailed information, please refer to the Vincotech datasheet.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage Rating | 1200 V |
| Current Rating | 160 A |
| Topology | Mixed Voltage NPC |
| Package Type | Flow 1 |
| Switching Frequency | Up to 16 kHz |
| Operating Temperature Range | -40°C to +150°C |
| Thermal Resistance (junction to heatsink) | 3.43 K/W |
| Isolation Voltage | 2500 V |
For more detailed information, please refer to the Vincotech datasheet.
