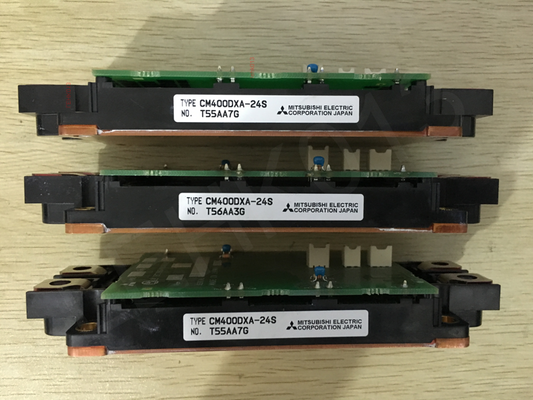

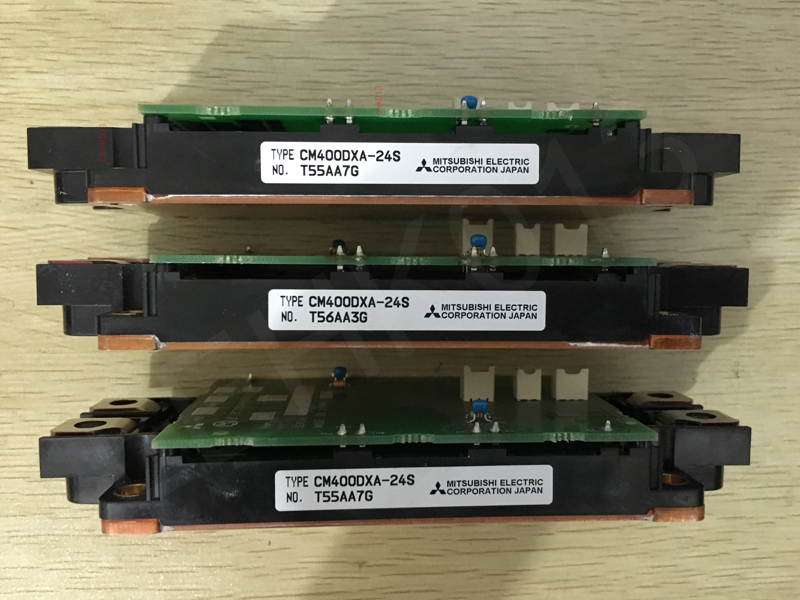

Mitsubishi CM400DXA-24S IGBT Power Module
The Mitsubishi CM400DXA-24S is a high-performance Insulated Gate Bipolar Transistor (IGBT) power module engineered for demanding industrial applications. With a maximum collector-emitter voltage (VCES) of 1200 V and a collector current (IC) rating of 400 A, this module is designed to handle high-power switching tasks efficiently. Its insulated construction ensures electrical isolation, making it suitable for applications requiring robust performance and thermal stability.
This IGBT module offers superior durability and thermal management, ensuring consistent performance under varying load conditions. Its compact design facilitates easy integration into existing systems, while its high current handling capability ensures reliable operation in industrial environments. The CM400DXA-24S is ideal for applications such as motor drives, inverters, and power supplies, where efficiency and reliability are paramount.
Whether you're developing industrial machinery, renewable energy systems, or commercial power supplies, the Mitsubishi CM400DXA-24S IGBT module provides the performance and reliability needed for demanding applications. Its combination of efficiency, durability, and versatility makes it an excellent choice for engineers and system designers seeking a dependable power module.
For more detailed information, please refer to the Mitsubishi CM400DXA-24S datasheet.
Key Specifications
| Parameter | Value |
|---|---|
| Maximum Collector-Emitter Voltage (VCES) | 1200 V |
| Maximum Collector Current (IC) | 400 A |
| Isolation Voltage (Viso) | 2500 Vrms |
| Maximum Junction Temperature (Tj max) | 150°C |
| Package Type | Dual (AC switch) |
| Mounting Type | Insulated |
| Weight | 0.9 kg |
| Application Areas | Motor Drives, Inverters, Power Supplies |
