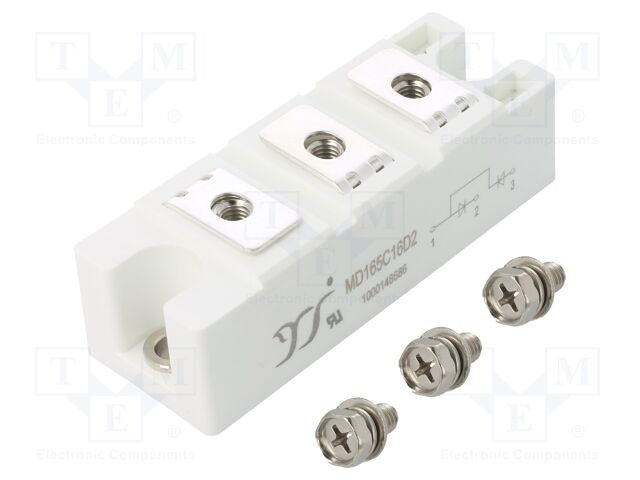

MD165C16D2
The MD165C16D2 is a rectifier diode module designed for reliable operation in high-power electronic systems. With a repetitive peak reverse voltage of 1600 V and an average forward current of 165 A at Tc = 101 °C, it ensures stable rectification in motor controllers, AC/DC converters, and field supply units. Its high surge current capability of 6000 A makes it suitable for demanding industrial conditions where both continuous operation and short-term overloads must be handled effectively.
This module uses glass-passivated chips for controlled leakage and durability, combined with an aluminum-oxide isolated metal baseplate for efficient heat transfer. Forward voltage drop remains low, typically 1.20 V at 300 A, minimizing conduction losses. Thermal resistance values of 0.21 °C/W per diode and 0.05 °C/W for the case-to-sink interface simplify cooling and contribute to long service life even in intensive duty cycles.
The MD165C16D2 is built in a D2 chassis-mount package with M6 screw terminals, offering straightforward integration and strong electrical isolation of 3000 Vrms for 1 minute. With an operating junction temperature range from –40 °C to +150 °C, it adapts well to industrial and commercial environments, including inverters, UPS systems, and rectifier banks.
Key Specs
| Parameter | Value |
|---|---|
| Part number | MD165C16D2 |
| Configuration | Dual diodes (series connection) |
| Package | D2 chassis mount, M6 terminals |
| Repetitive peak reverse voltage (VRRM) | 1600 V |
| Peak reverse test voltage (VRSM) | 1700 V |
| Average forward current IF(AV) (Tc = 101 °C) | 165 A |
| Surge current IFSM (10 ms, Tvj = 45 °C) | 6000 A |
| i²t (10 ms, Tvj = 45 °C) | 180,000 A²s |
| Typical forward voltage (VFM) at 300 A | 1.20 V (typ), 1.40 V (max) |
| Reverse leakage (IR) at 150 °C | ≤ 9 mA |
| Thermal resistance Rth(j–c) per diode | 0.21 °C/W |
| Thermal resistance Rth(c–s) | 0.05 °C/W |
| Isolation voltage (Visol) | 3000 Vrms (1 min) |
| Operating junction temperature (Tvj) | –40 °C to +150 °C |
| Mounting torque | M6, 5 ±15% Nm |
| Weight | ~160 g |
For more detailed information, refer to the official datasheet here: MD165C16D2 Datasheet (PDF).
