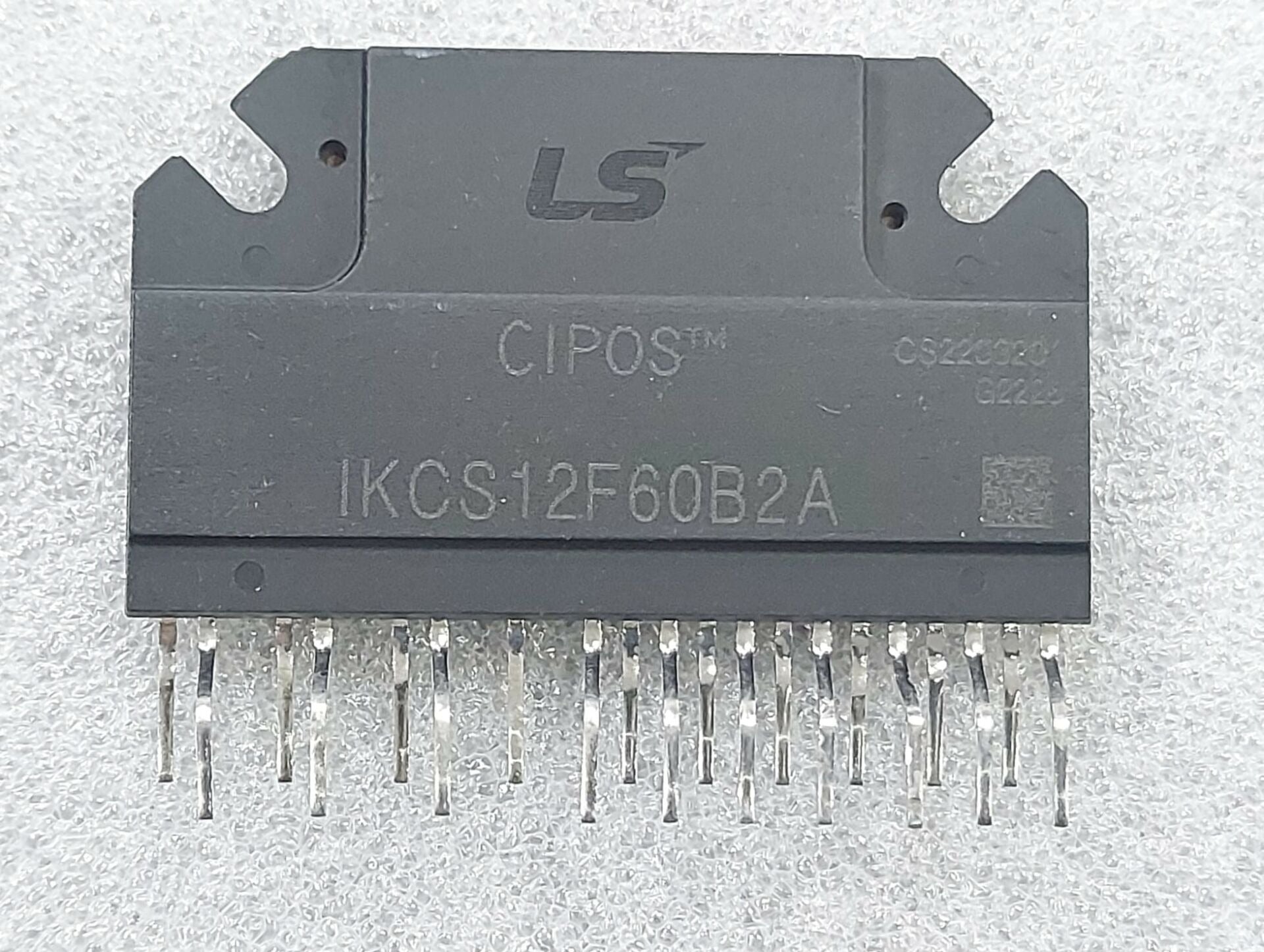

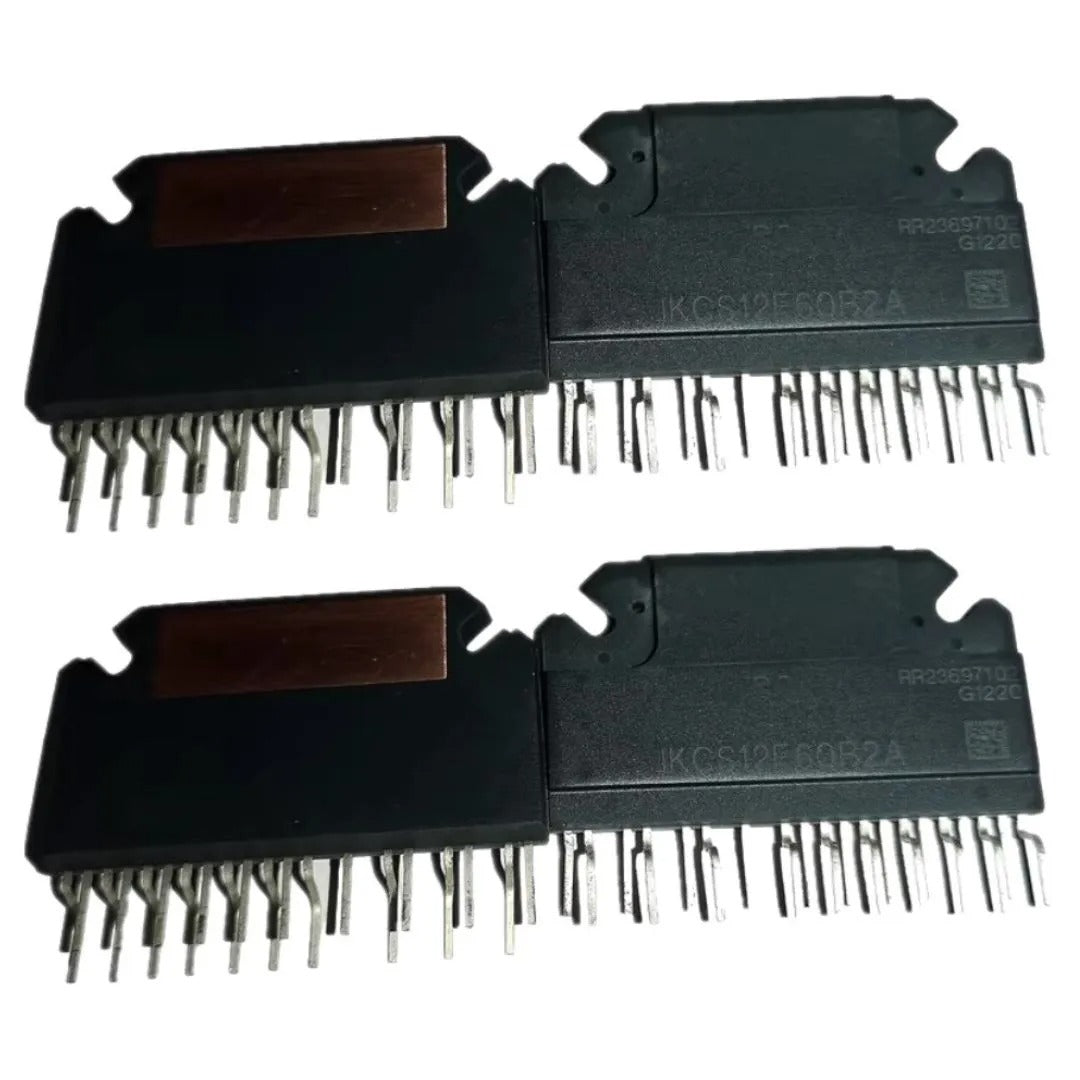

Infineon IKCS12F60B2A IGBT Power Module – Reliable Motor Control Solution
The Infineon IKCS12F60B2A is a high-performance Intelligent Power Module (IPM) designed to meet the demanding requirements of industrial and commercial applications. This module integrates advanced IGBT technology with sophisticated gate driver circuits, offering a compact and efficient solution for motor control systems.
The module is capable of withstanding a collector-emitter voltage of 600V and delivering a continuous collector current of 12A, making it suitable for various motor control applications. It includes built-in overcurrent detection and thermal shutdown capabilities, enhancing system reliability and protecting against potential faults. Its Single In-Line Package (SIP) facilitates easy integration into existing systems, saving space and reducing design complexity. The module operates reliably within a temperature range from -40°C to +125°C, ensuring stable performance in diverse environmental conditions. Additionally, the gate driver circuit operates with a supply current of just 2.4 mA, contributing to overall system energy efficiency.
The IKCS12F60B2A is ideal for variable frequency drives (VFDs), where it controls the speed and torque of electric motors, and for uninterruptible power supplies (UPS), providing stable power to critical loads during outages. It is also suitable for home appliances, controlling motors in devices like washing machines and air conditioners, and for industrial automation, driving motors in conveyor systems, pumps, and other machinery.
Key Specifications
| Specification | Value |
|---|---|
| Type | Intelligent Power Module (IPM) |
| Technology | NPT-Trench IGBT with SOI gate driver |
| Collector-Emitter Voltage | 600V |
| Continuous Collector Current | 12A |
| Gate Drive Supply Current | 2.4 mA |
| Operating Temperature Range | -40°C to +125°C |
| Package Type | Single In-Line Package (SIP) |
| Isolation Voltage | 4000 V AC |
| Overcurrent Detection | Yes |
| Thermal Shutdown | Yes |
