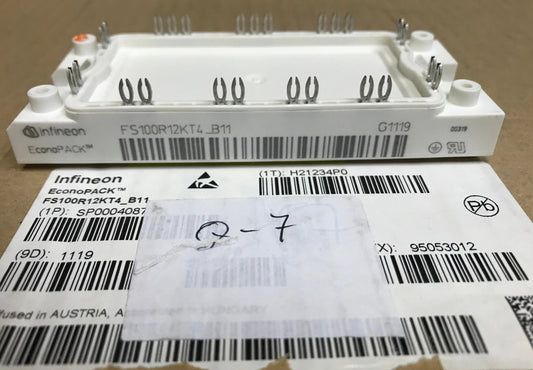

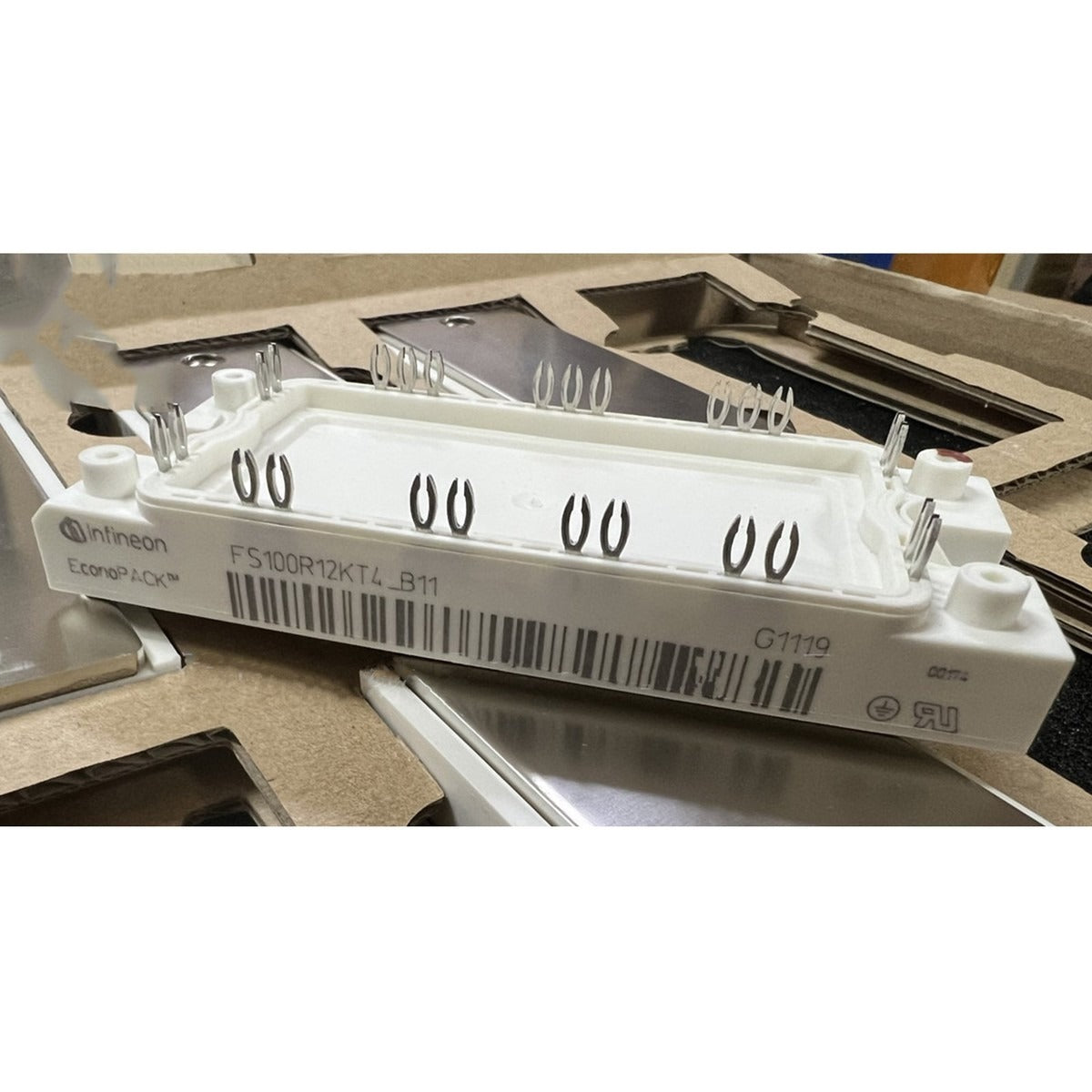

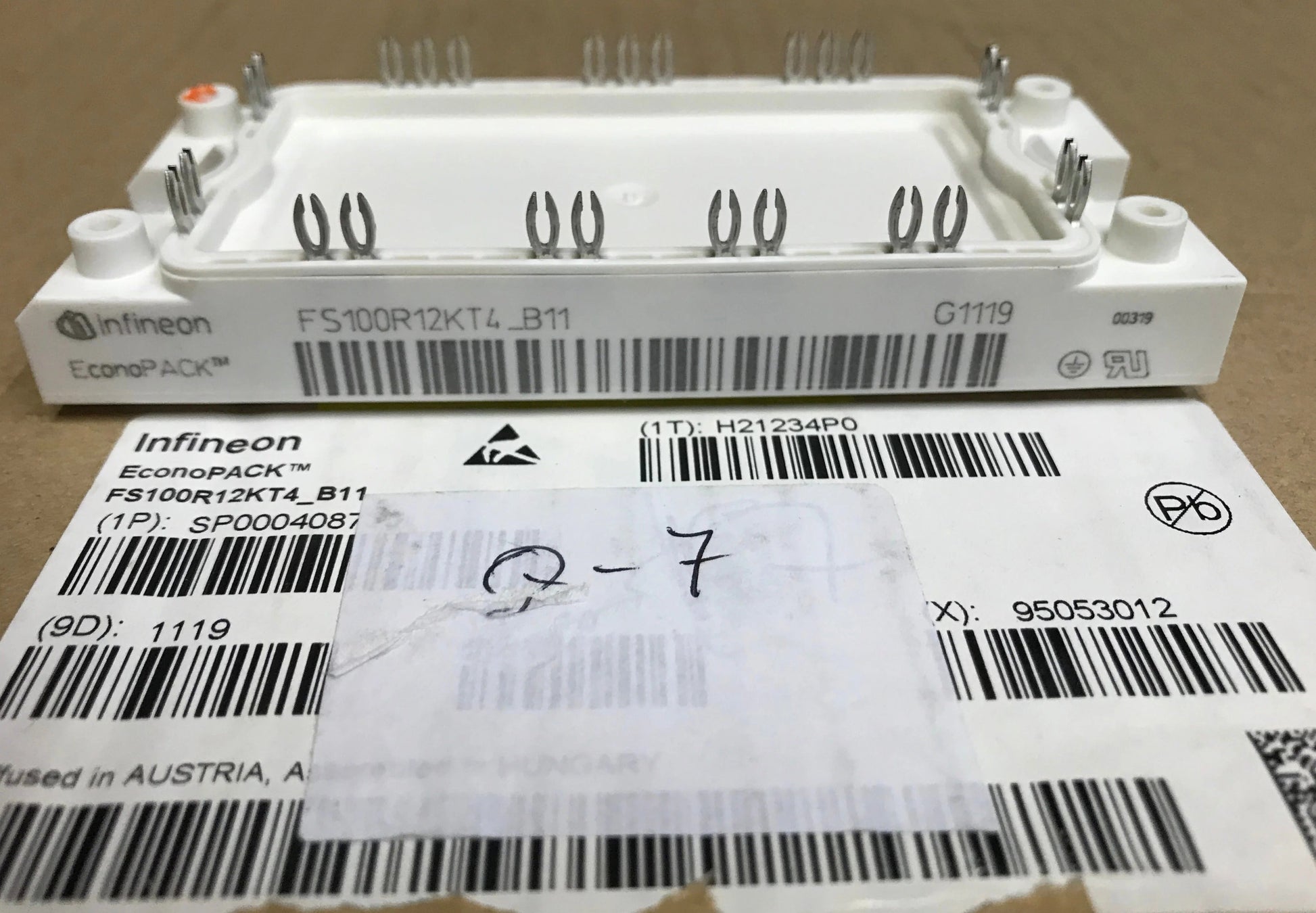

FS100R12KT4-B11 IGBT Module
The Infineon FS100R12KT4-B11 is a high-voltage, high-current IGBT module designed for power electronics applications. With a voltage rating of 1200V and a current rating of 100A, it provides reliable switching performance for industrial and commercial systems.
Built with advanced IGBT4-T4 technology, this module delivers low switching losses, high-speed operation, and stable thermal performance. It operates efficiently across a wide temperature range of -40°C to +150°C, ensuring dependable functionality in diverse environments.
The FS100R12KT4-B11 is suitable for use in motor drives, UPS systems, and renewable energy inverters. Its compact EconoPACK2 package with PressFIT mounting allows easy integration into various power electronic systems.
Key Specifications:
| Feature | Specification |
|---|---|
| Voltage Rating (Vce) | 1200 V |
| Current Rating (Ic) | 100 A |
| Collector Emitter Saturation Voltage (Vce(sat)) | 1.75 V |
| Forward Voltage (Vf) | 1.7 V |
| Technology | IGBT4-T4 |
| Module Type | EconoPACK2 |
| Mounting Type | PressFIT |
| Operating Temperature Range | -40°C to +150°C |
| Package Dimensions (L × W × H) | 122 mm × 62 mm × 17 mm |
For detailed technical information, refer to the Infineon FS100R12KT4-B11 datasheet.
