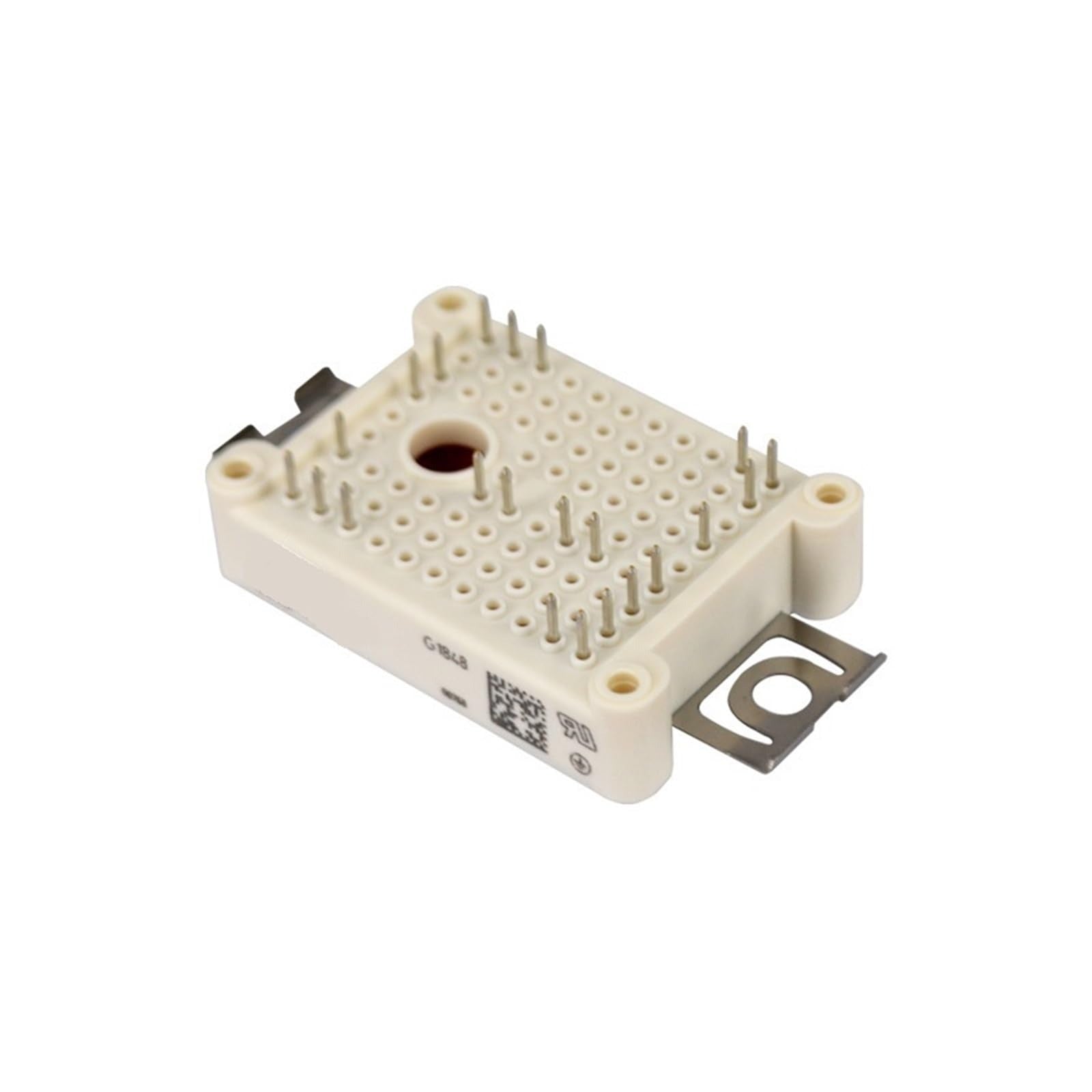

FP30R06W1E3
The FP30R06W1E3 from Infineon Technologies is an IGBT module designed for industrial power electronics. It has a maximum collector-emitter voltage (V<sub>CE</sub>) of 600V and a continuous collector current (I<sub>C</sub>) of 37A, providing stable performance in various applications. The module uses Trenchstop IGBT3 technology and emitter-controlled diodes to reduce switching losses and improve efficiency. Its compact EasyPIM™ 1B package allows space-efficient installation while maintaining power handling capacity.
The module operates in a temperature range of -40°C to +150°C. An integrated NTC thermistor enables temperature monitoring for safe operation. A low collector-emitter saturation voltage (V<sub>CEsat</sub>) with a positive temperature coefficient enhances thermal stability and reduces the risk of thermal issues. These characteristics support reliable operation over time.
The FP30R06W1E3 is suitable for auxiliary inverters and air conditioning systems, providing consistent performance in industrial and commercial environments. Its design allows integration into various power electronic systems.
Key Specifications
| Specification | Value |
|---|---|
| Maximum Collector-Emitter Voltage (V<sub>CE</sub>) | 600 V |
| Continuous Collector Current (I<sub>C</sub>) | 37 A |
| Power Dissipation (P<sub>d</sub>) | 115 W |
| Saturation Voltage (V<sub>CEsat</sub>) | 1.55 V |
| Gate-Emitter Voltage (V<sub>GE</sub>) | 20 V |
| Operating Temperature Range | -40°C to +150°C |
| Package Type | EasyPIM™ 1B |
| Mounting Style | Screw Mount |
| Substrate Material | Al<sub>2</sub>O<sub>3</sub> (Alumina) |
| NTC Thermistor | Yes |
For more information, please refer to the Infineon FP30R06W1E3 datasheet.
