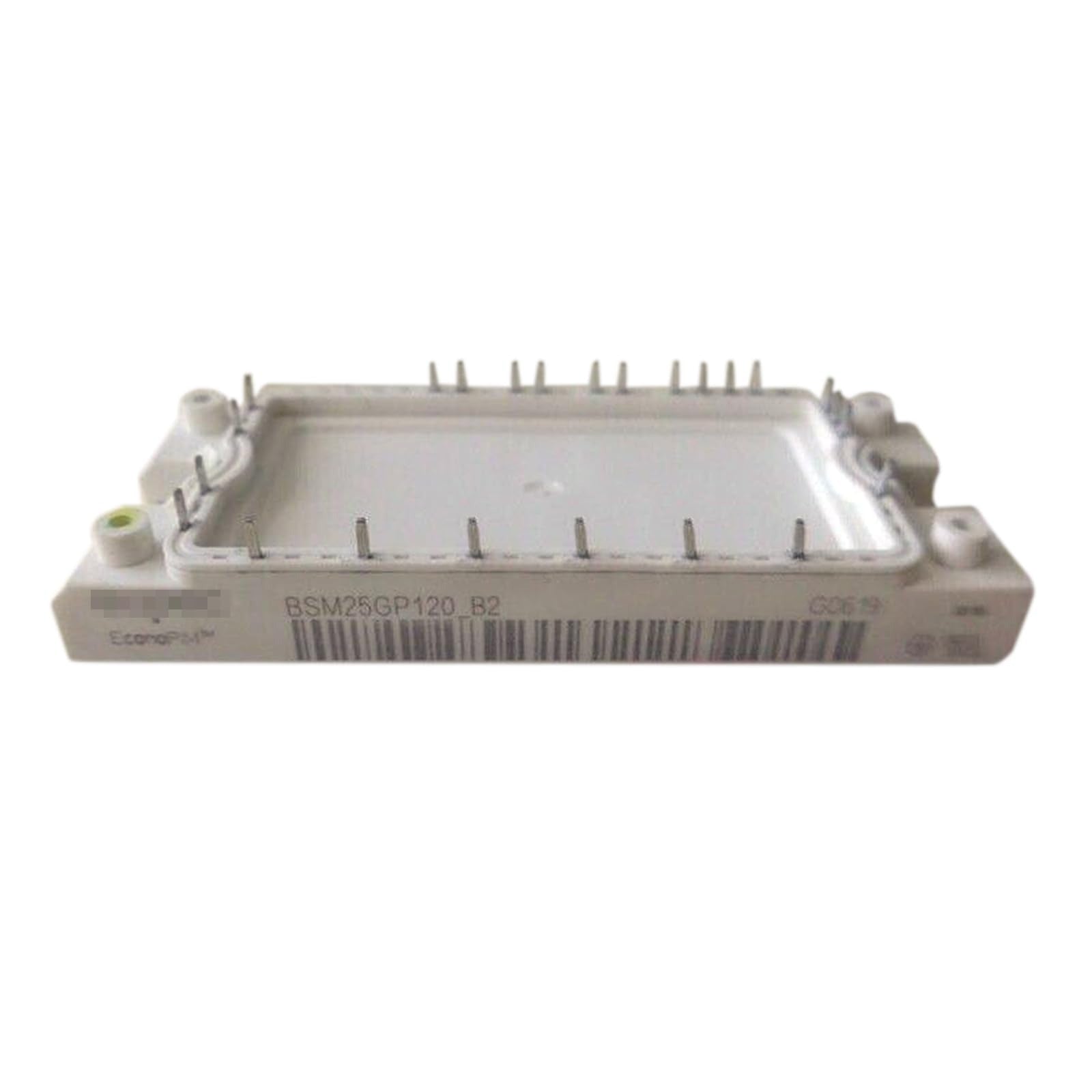

BSM25GP120-B2 — 1200 V / 25 A IGBT Power Module
The BSM25GP120-B2 is an IGBT power module designed for reliable power switching and energy control in industrial and commercial systems. With a collector-emitter voltage of 1200 V and a continuous collector current rating of 25 A, it supports efficient operation in medium-power applications.
This module is used in AC motor drives, UPS systems, inverters, and other automation equipment where compact packaging, effective thermal management, and long service life are required. Its screw-mount package ensures secure installation and stable performance in demanding conditions.
Manufactured with proven IGBT technology, the BSM25GP120-B2 offers consistent electrical characteristics, low conduction losses, and a wide operating temperature range. It is suitable for both new designs and replacement needs in industrial power electronics.
Key Specs
| Specification | Value |
|---|---|
| Manufacturer | Infineon / EUPEC |
| Part Number | BSM25GP120-B2 |
| Type | IGBT Power Module |
| Collector-Emitter Voltage (V<sub>CE</sub>) | 1200 V |
| Collector Current (I<sub>C</sub>) | 25 A |
| Gate-Emitter Voltage (V<sub>GE</sub>) | ±20 V |
| Power Dissipation (P<sub>D</sub>) | ~230 W |
| Junction Temperature (T<sub>j</sub>) | −40 °C to +125 °C |
| Collector-Emitter Saturation Voltage (V<sub>CE(sat)</sub>) | ~2.55 V |
| Switching Times | ton ≈ 350 ns, toff ≈ 450 ns |
| Package / Mounting | Screw-mount, insulated case |
| Storage Temperature | −40 °C to +130 °C |
| Applications | AC drives, inverters, UPS, automation |
| Compliance | RoHS compliant |
For full electrical, mechanical, and thermal characteristics, please refer to the official
BSM25GP120-B2 Datasheet (PDF)
