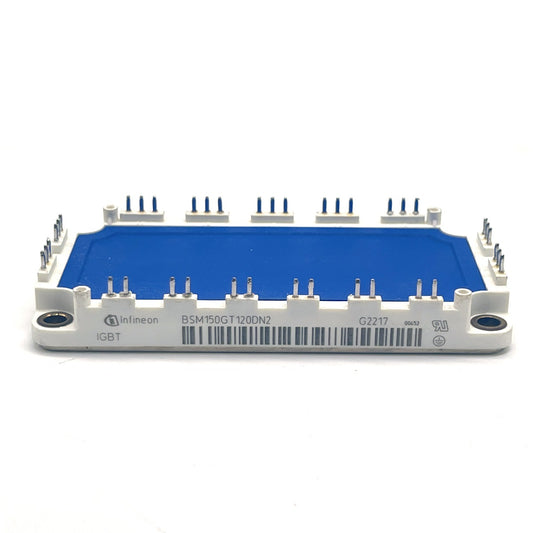

BSM150GT120DN2 IGBT Module
The BSM150GT120DN2 is a 1200 V, 150 A six-pack IGBT module designed for demanding industrial and commercial power electronics applications. It delivers high power handling capability and excellent electrical performance, making it suitable for motor drives, UPS systems, and welding equipment. Its robust design ensures reliable operation under heavy load, providing stable voltage switching and efficient energy conversion.
This module incorporates advanced IGBT4 chip technology and CAL4 soft-switching diodes, paired with a copper baseplate and DBC (Direct Bonded Copper) construction. These features optimize thermal management, reduce switching losses, and allow the module to withstand junction temperatures up to 150 °C. Its power cycling capability and integrated gate resistors further improve system stability and long-term durability.
The BSM150GT120DN2 combines efficiency, reliability, and versatility for industrial and commercial power electronics applications. Its low saturation voltage, high switching frequency support (up to 20 kHz), and compact EconoPACK™ 3A package make it an ideal choice for high-performance systems. For detailed technical information, please refer to the official datasheet.
Key Specifications – BSM150GT120DN2
| Specification | Value |
|---|---|
| Collector-Emitter Voltage (V_CES) | 1200 V |
| Nominal Collector Current (I_C) | 150 A |
| Maximum Continuous Collector Current | 200 A (25 °C) |
| Saturation Voltage (V_CE(sat)) | 2.5 V |
| Power Dissipation (P_tot) | 1250 W |
| Thermal Resistance (R_thJC) | ≤ 0.12 K/W |
| Operating Temperature (T_j) | −40 °C to +150 °C |
| Package Type | EconoPACK™ 3A |
| Switching Frequency Capability | Up to 20 kHz |
