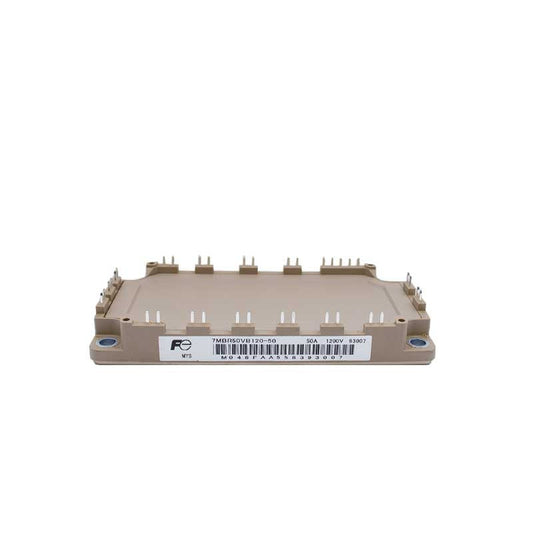

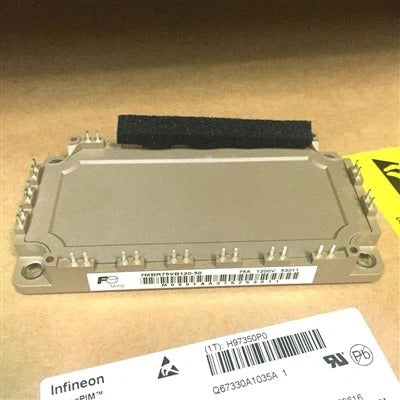

Fuji Electric 7MBR50VB120-50 IGBT Module
The Fuji Electric 7MBR50VB120-50 is a high-performance IGBT module engineered for reliability and efficiency in power electronics applications. Designed to handle demanding industrial and commercial workloads, this module ensures stable operation under high voltage and current conditions, making it ideal for motor drives, UPS systems, servo drives, and renewable energy applications. Its robust construction guarantees long-term durability, even in challenging thermal environments.
With low collector-emitter saturation voltage and fast switching characteristics, the 7MBR50VB120-50 delivers exceptional energy efficiency while minimizing conduction losses. Its compact M712 package allows for seamless integration into space-constrained designs, simplifying system assembly and reducing overall component count. The built-in diode bridge further enhances its functionality and reliability, enabling engineers to design more streamlined and effective power electronics systems.
This module is built to last, with high thermal and electrical ratings ensuring consistent performance across a wide range of applications. Its combination of efficiency, compact design, and ease of integration makes it a preferred choice for both industrial automation and commercial power systems. Fuji Electric’s commitment to quality ensures this module meets stringent performance and environmental standards, including RoHS compliance.
Key Specifications:
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (V_CES) | 1200V |
| Continuous Collector Current (I_C) | 50A @ T_C = 80°C |
| Pulse Collector Current (I_CP) | 100A (1ms, T_C = 80°C) |
| Collector Power Dissipation (P_C) | 280W |
| Gate-Emitter Voltage (V_GES) | ±20V |
| Collector-Emitter Saturation Voltage (V_CE(sat)) | 2.2V (typical) |
| Turn-On Time (t_on) | 0.39µs (typical) |
| Reverse Recovery Time (t_rr) | ≤0.35µs |
| Thermal Resistance (R_th(j-c)) | 0.54°C/W |
| Maximum Junction Temperature (T_j) | 175°C |
| Isolation Voltage (V_iso) | 2500V AC |
| Package Type | M712 |
| Dimensions (L × W × H) | 122mm × 62mm × 22mm |
| Weight | 300g |
For more detailed information, please refer to the Fuji Electric datasheet.
