7MBR35VP120A-56 IGBT Power Module

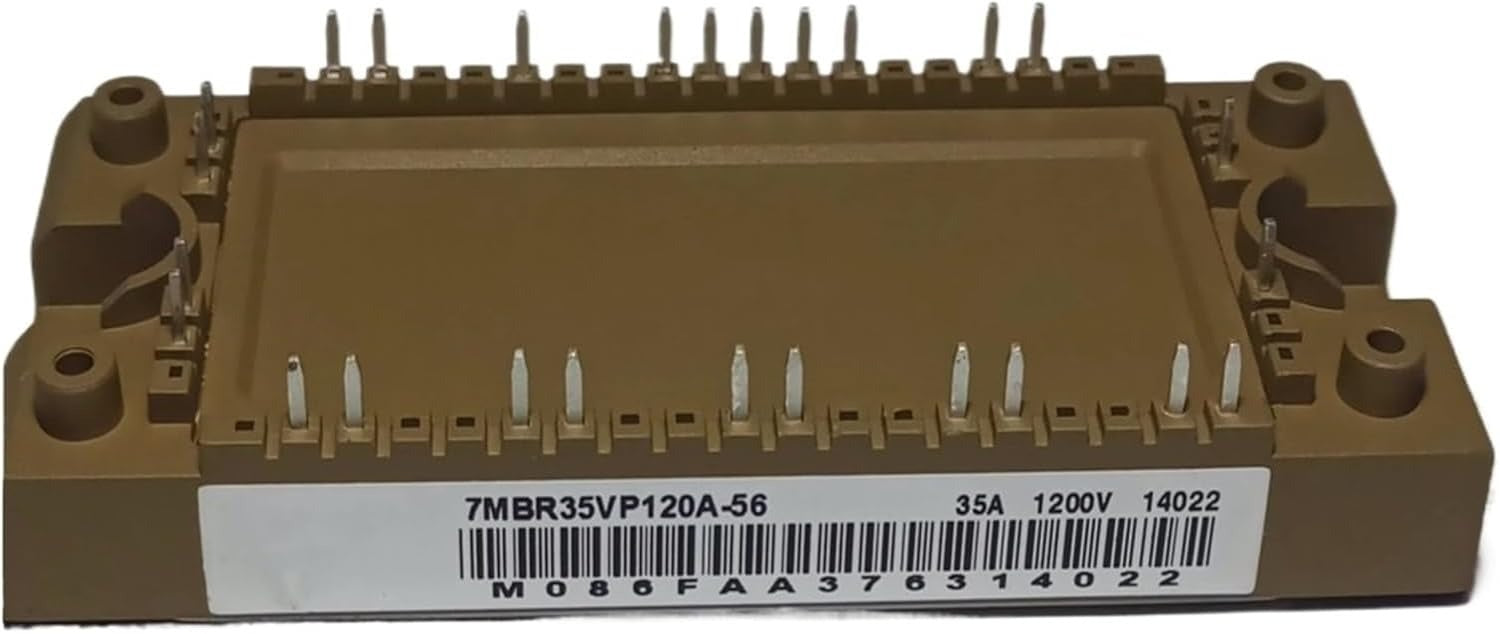

The 7MBR35VP120A-56 is an IGBT power module from Fuji Electric for power-electronics applications. It is based on Fuji’s V-series PIM architecture, providing 1200 V blocking voltage and 35 A continuous current. The module includes an integrated converter/diode bridge and supports three-phase inverters, motor drives, servo amplifiers, and UPS systems. The PCB-mount package and solder-pin terminals allow straightforward integration while maintaining electrical and thermal stability.
The module is rated for junction temperatures up to 175°C and has a 2500 VAC isolation voltage. It includes a thermistor for temperature monitoring and has a surge current rating of 260 A. Thermal resistance is approximately 0.72 °C/W for the inverter IGBT section, supporting continuous operation in industrial and commercial environments.
Collector-emitter saturation voltage is approximately 2.15 V at 35 A and 25 °C. The diode forward voltage is about 2.0 V, and the reverse recovery time is 0.35 μs at 35 A. The 1200 V blocking capability and converter diode ratings make it suitable for a range of inverter and AC/DC converter applications.
Key Specs
| Specification | Value |
|---|---|
| Manufacturer | Fuji Electric |
| Part number | 7MBR35VP120A-56 |
| Device type | IGBT module (PIM, V-Series) |
| Collector-Emitter voltage (VCES) | 1200 V |
| Inverter collector current (continuous) | 35 A (Tc = 100°C) |
| Inverter collector current (1 ms pulse) | 70 A (1 ms, Tc = 80°C) |
| Inverter collector power dissipation | 210 W |
| Brake/Converter current rating | Brake: 25 A (Tc = 80°C); Converter: 35 A (50/60 Hz) |
| Surge current (IFSM) | 260 A (10 ms half-sine, Tj = 150°C) |
| VCE(sat) (typical) | 2.15 V (IC = 35 A, VGE = 15 V, Tj = 25°C) |
| Diode forward voltage (VF) | 2.0 V (IF = 35 A, Tj = 25°C) |
| Reverse recovery time (trr) | 0.35 μs (IF = 35 A) |
| Thermal resistance Rth(j-c) | IGBT: 0.72 °C/W; FWD: 0.91 °C/W |
| Junction temperature (max) | 175 °C |
| Case temperature (Tc) | 125 °C |
| Storage temperature | −40 to +125 °C |
| Isolation voltage | 2500 VAC (1 min) |
| Thermistor | 5000 Ω at 25 °C; B = 3375 K (25/50 °C) |
| Package / Dimensions | M719 package, approx. 107.5 × 45 mm, 200 g |
| Terminal type | Solder pins |
For detailed specifications, see the Fuji Electric datasheet
7MBR35VP120A-56 Datasheet (PDF)
